System Specifications
Cylinder headWarpage Maximum 0.05 mm (0.0020 inch)
Valve seat
Refacing angle 20°, 45°, 75°
Contacting angle 45°
Contacting width 1.0 - 1.4 mm (0.039 - 0.055 inch)
Valve guide bushing bore diameter
STD 9.685 - 9.706 mm (0.38130 - 0.38213 inch)
O/S 0.05 9.735 - 9.756 mm (0.38327 - 0.38493 inch)
Cylinder head cover x Cylinder 10 Nm (100 kgf-cm, 7 ft. lbs.)

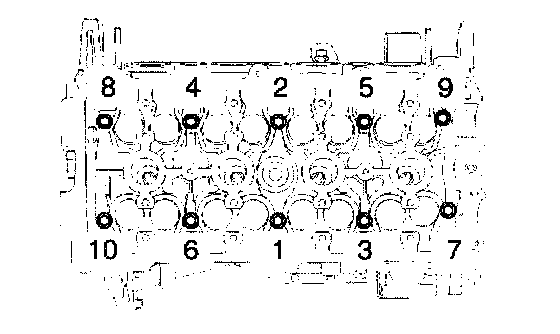

Cylinder head x Cylinder block
1st 29.4 Nm (300 kgf-cm 22 ft. lbs.)
2nd Turn 90° Nm (Turn 90° kgf-cm, Turn 90° ft. lbs.)
3rd Turn 90° Nm (Turn 90° kgf-cm, Turn 90° ft. lbs.)
Cylinder Head
Torque 29.4 Nm (300 kgf-cm, 22 ft. lbs.)
If any one of the cylinder head bolts does not meet the torque specification, replace the cylinder head bolt.

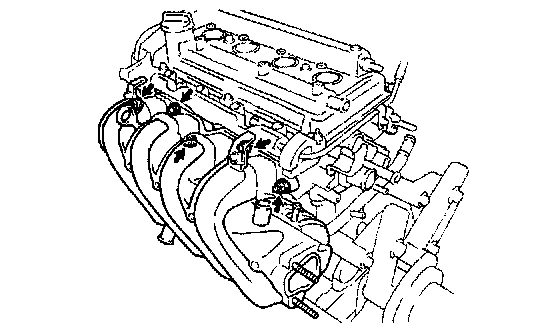

Intake Manifold
Torque 30 Nm (300 kgf-cm, 22 ft. lbs.)

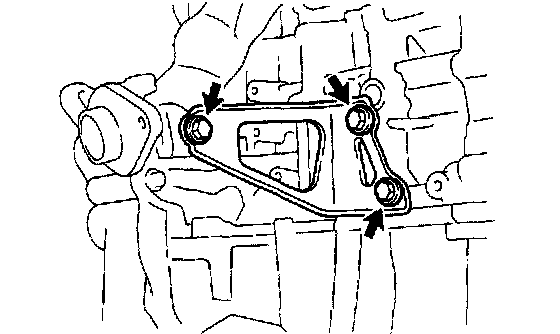

Exhaust Manifold
Torque 37 Nm (377 kgf-cm, 27 ft. lbs.)

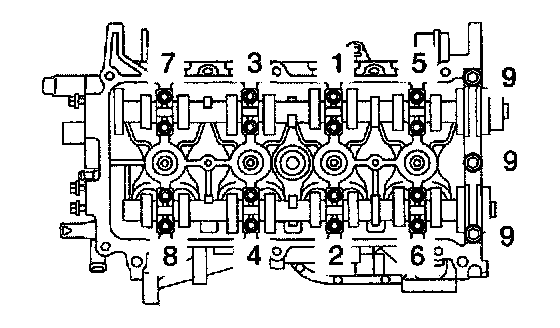

Camshaft Bearing Cap
Torque:
No. 1 23 Nm (235 kgf-cm, 17 ft. lbs.)
No. 2 12.7 Nm (130 kgf-cm, 10 ft. lbs.)
