Central Control Module: Service and Repair
NETWORK GATEWAY ECUREPLACEMENTHINT: -
Installation is in the reverse order of removal.
1.
REMOVE GLOVE COMPARTMENT DOOR ASSY
2.
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.2
3.

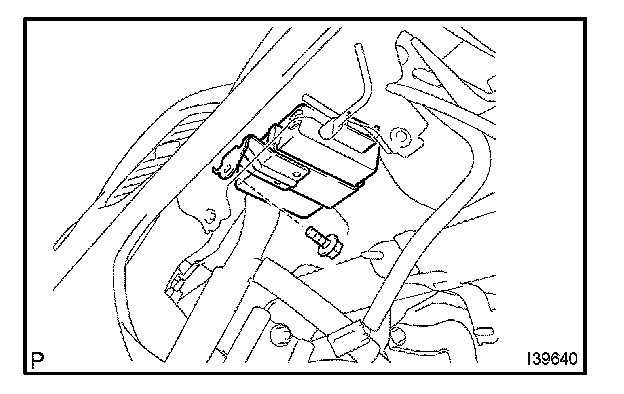

REMOVE NETWORK GATEWAY ECU
a.
Disconnect the connector.
b.
Remove the bolt and the network gateway ECU.
