Piston, Engine






INSPECT PISTON DIAMETER

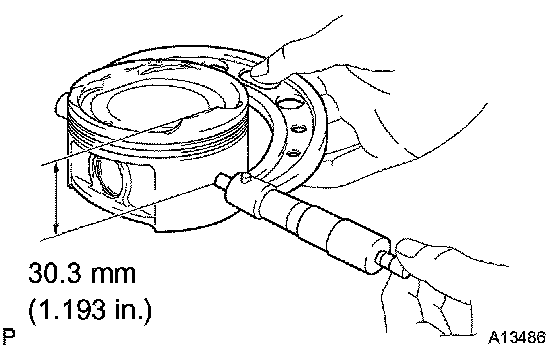

Using a micrometer, measure the piston diameter at right angles to the piston pin center line, 30.3 mm (1.193 inch) from the piston head.
Piston diameter: 88.439 to 88.449 mm (3.4818 to 3.4822 inch)
