Navigation Module: Testing and Inspection

TERMINALS OF ECU

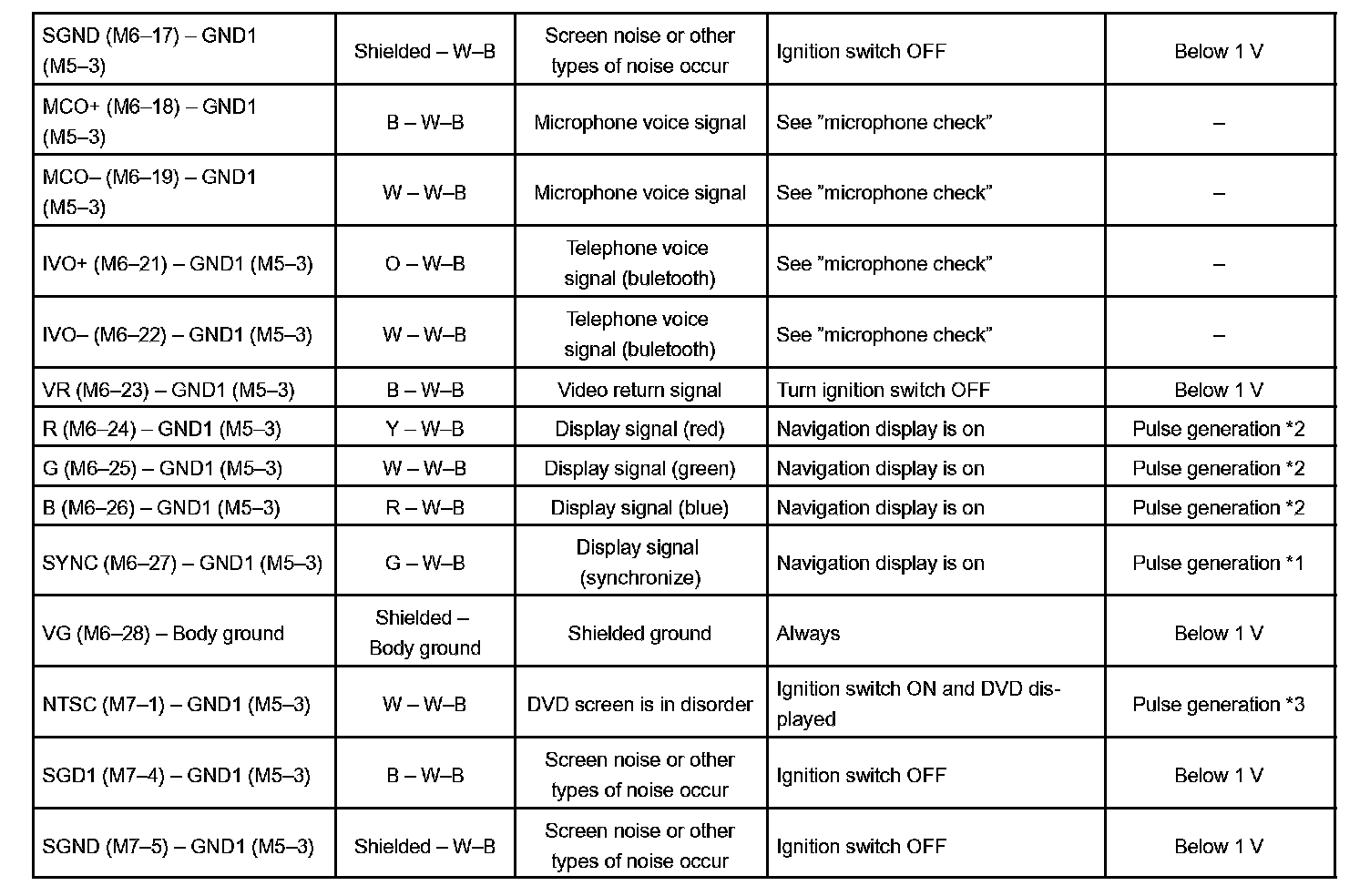

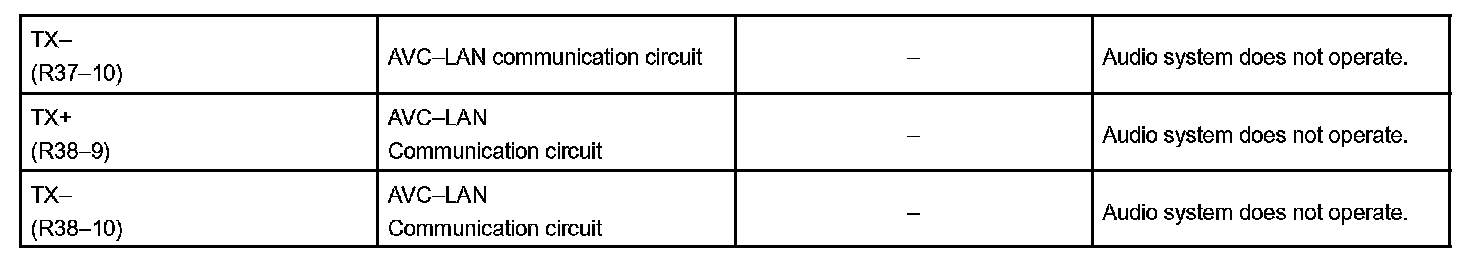

Terminals Of ECU/Pinouts - Multi-Display Part 1:

Terminals Of ECU/Pinouts - Multi-Display Part 2:

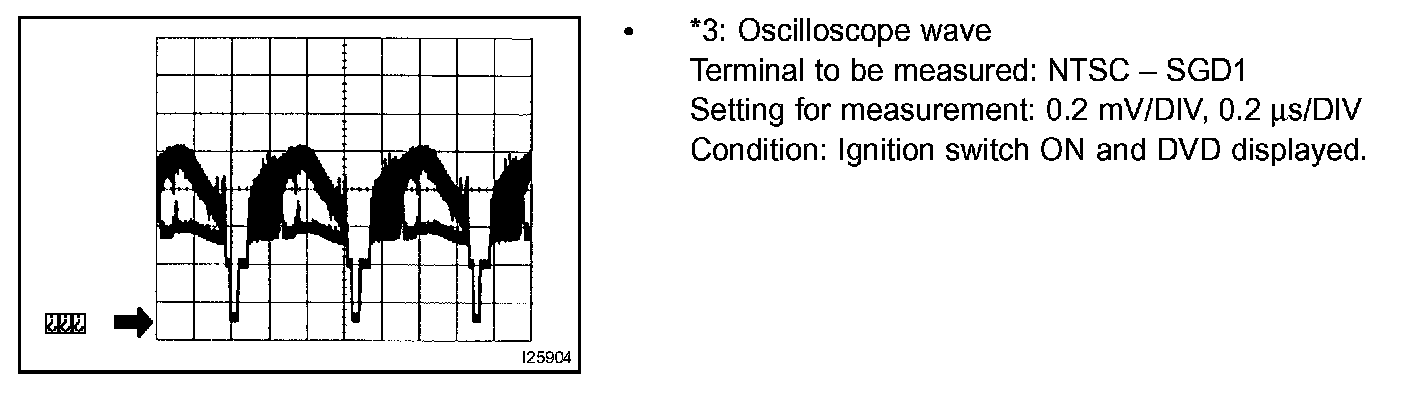

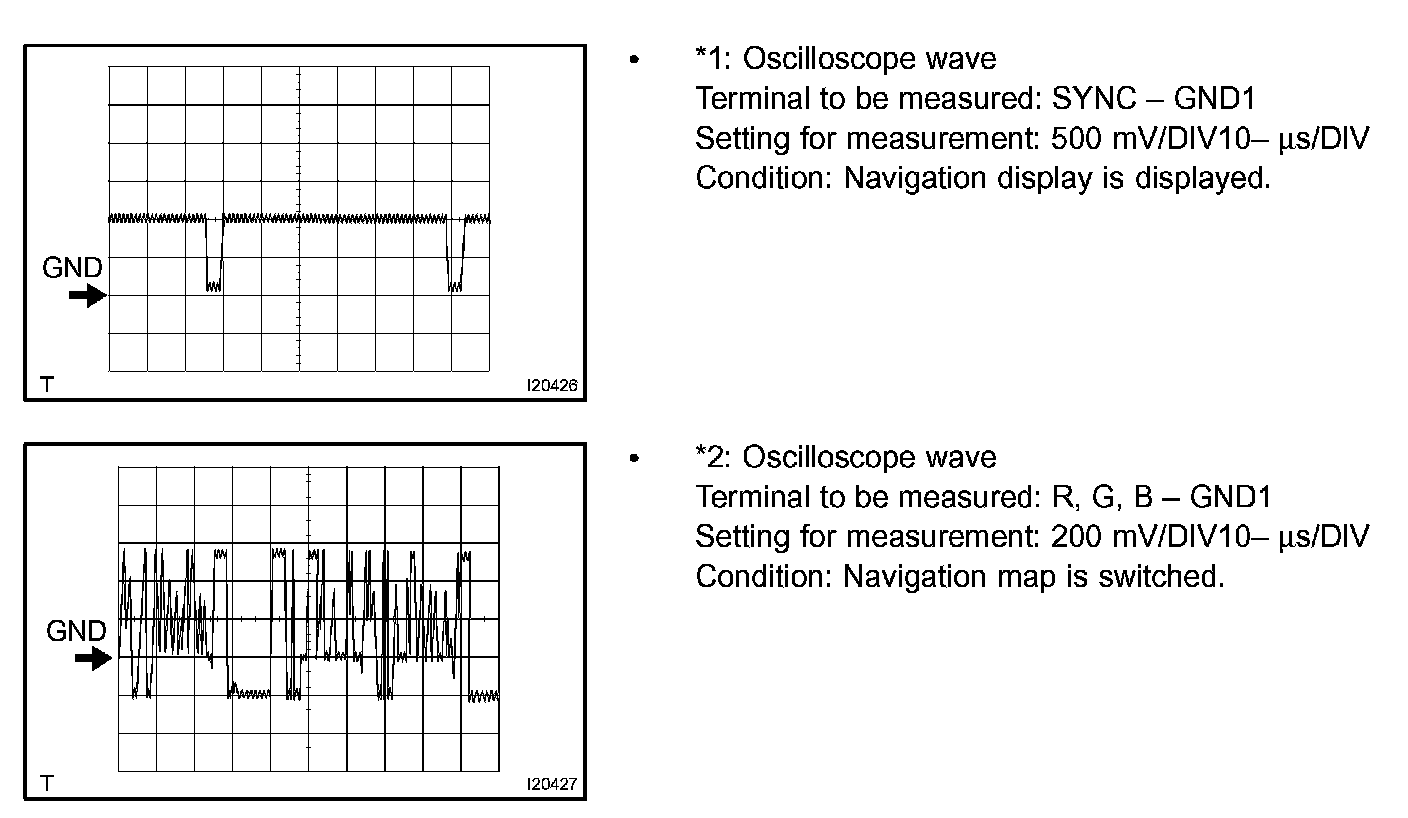

Oscilloscope Waveforms:

Oscillscope Wave:

Multi-display

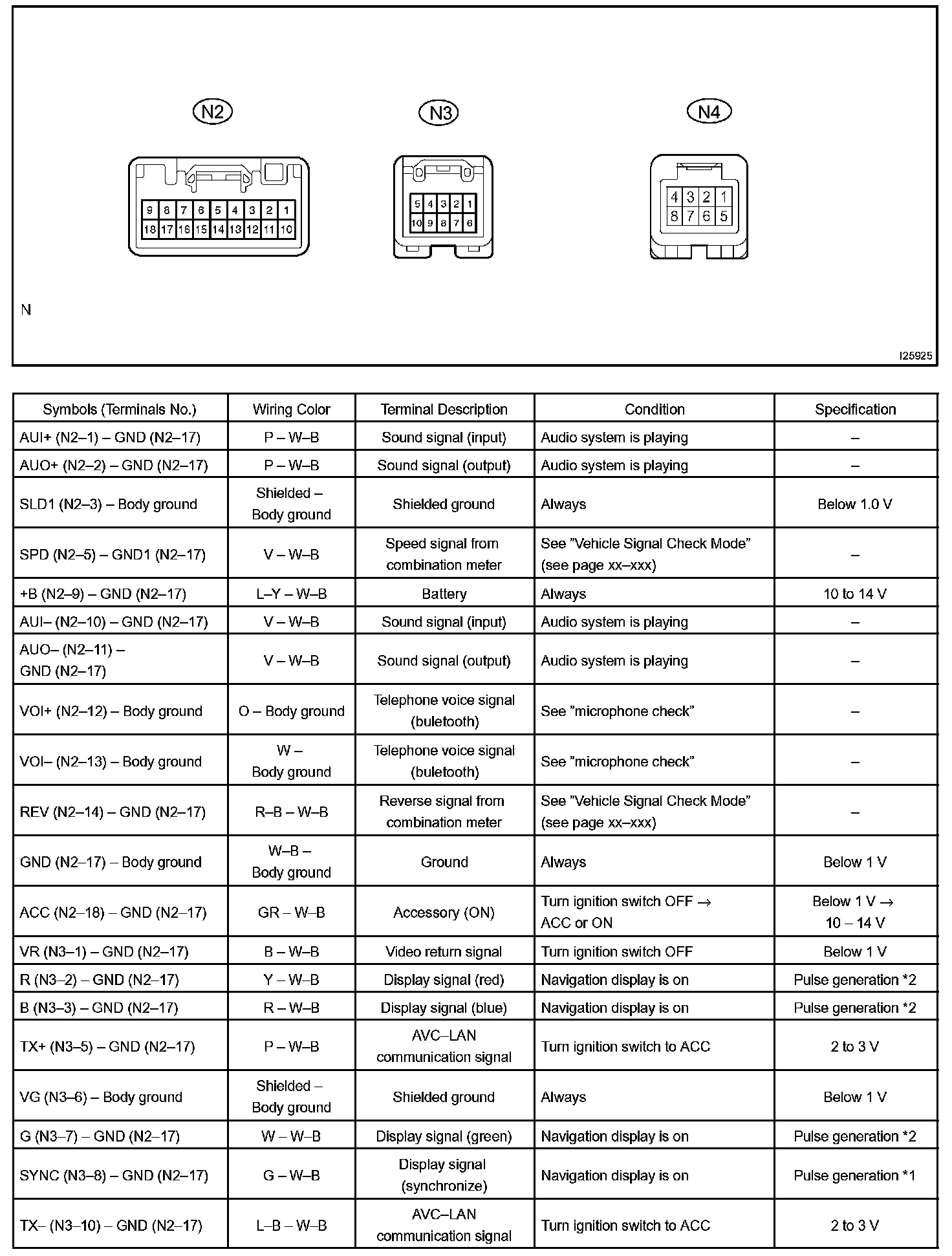

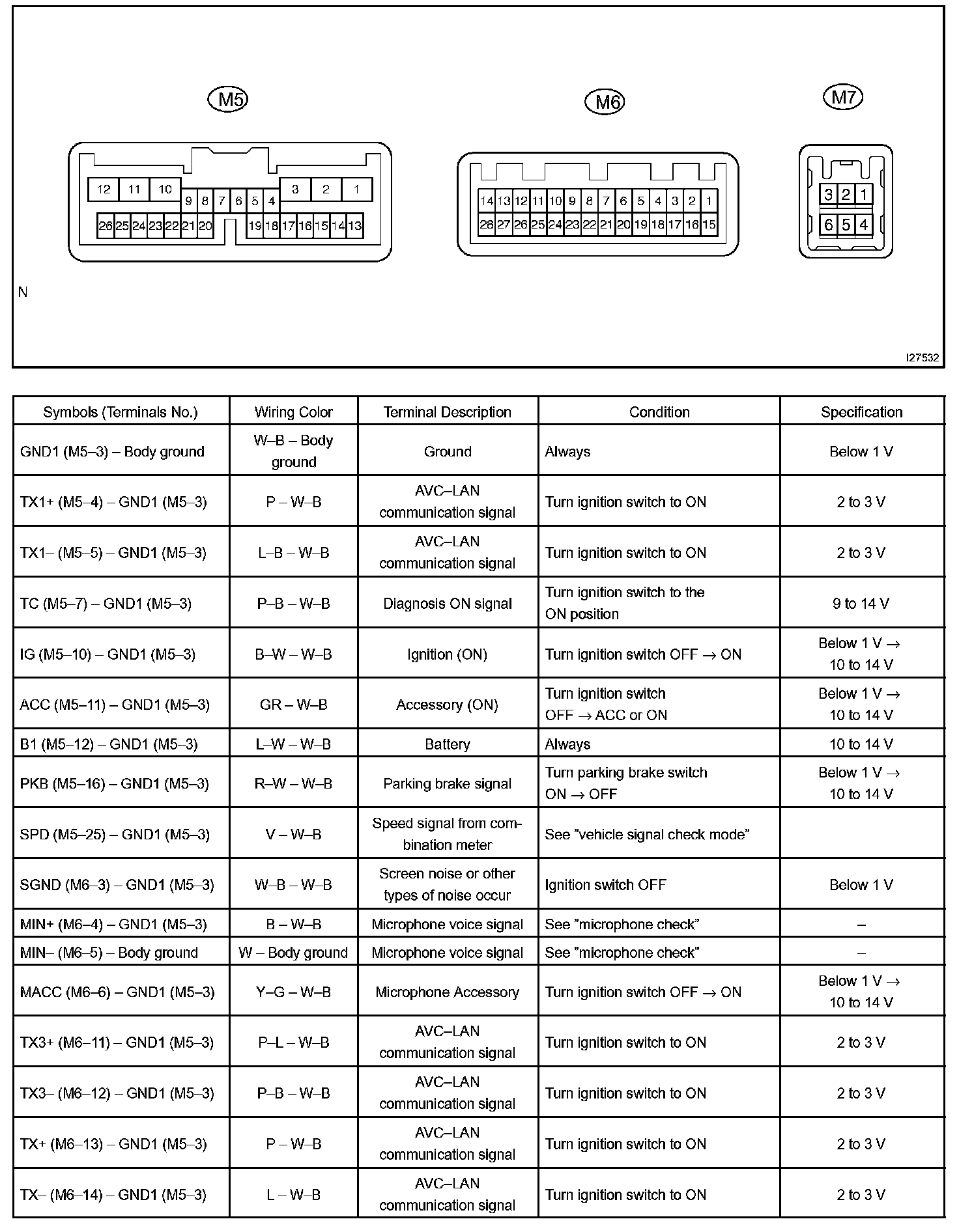

Terminals Of ECU/ Pinouts - Navigation ECU Part 1:

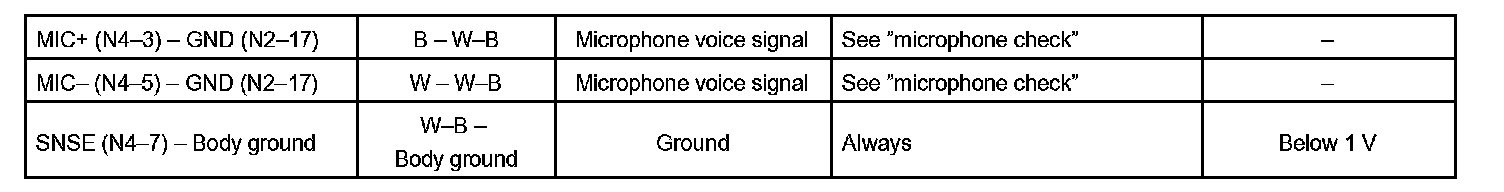

Terminals Of ECU/ Pinouts - Navigation ECU Part 2:

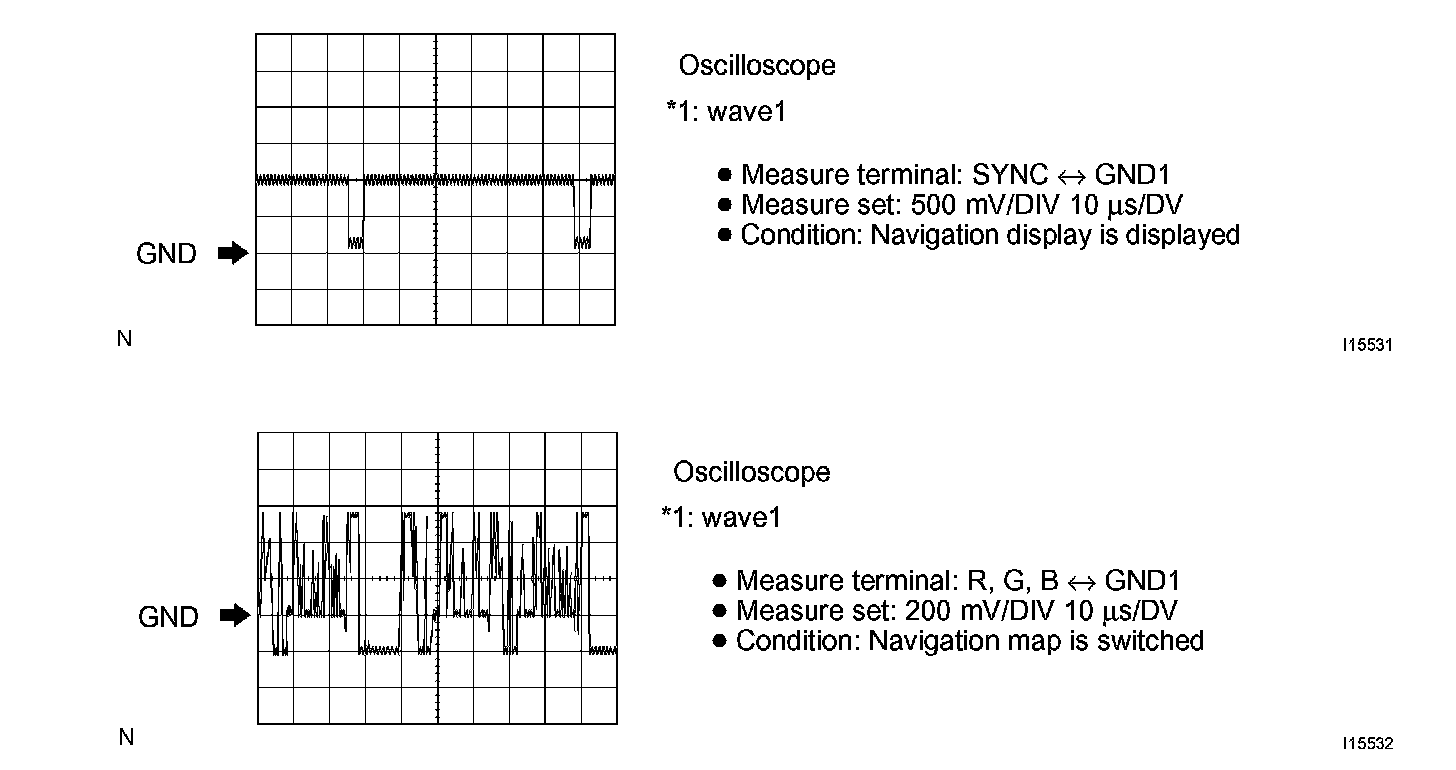

Oscilloscope Wavveforms:

Navigation ECU

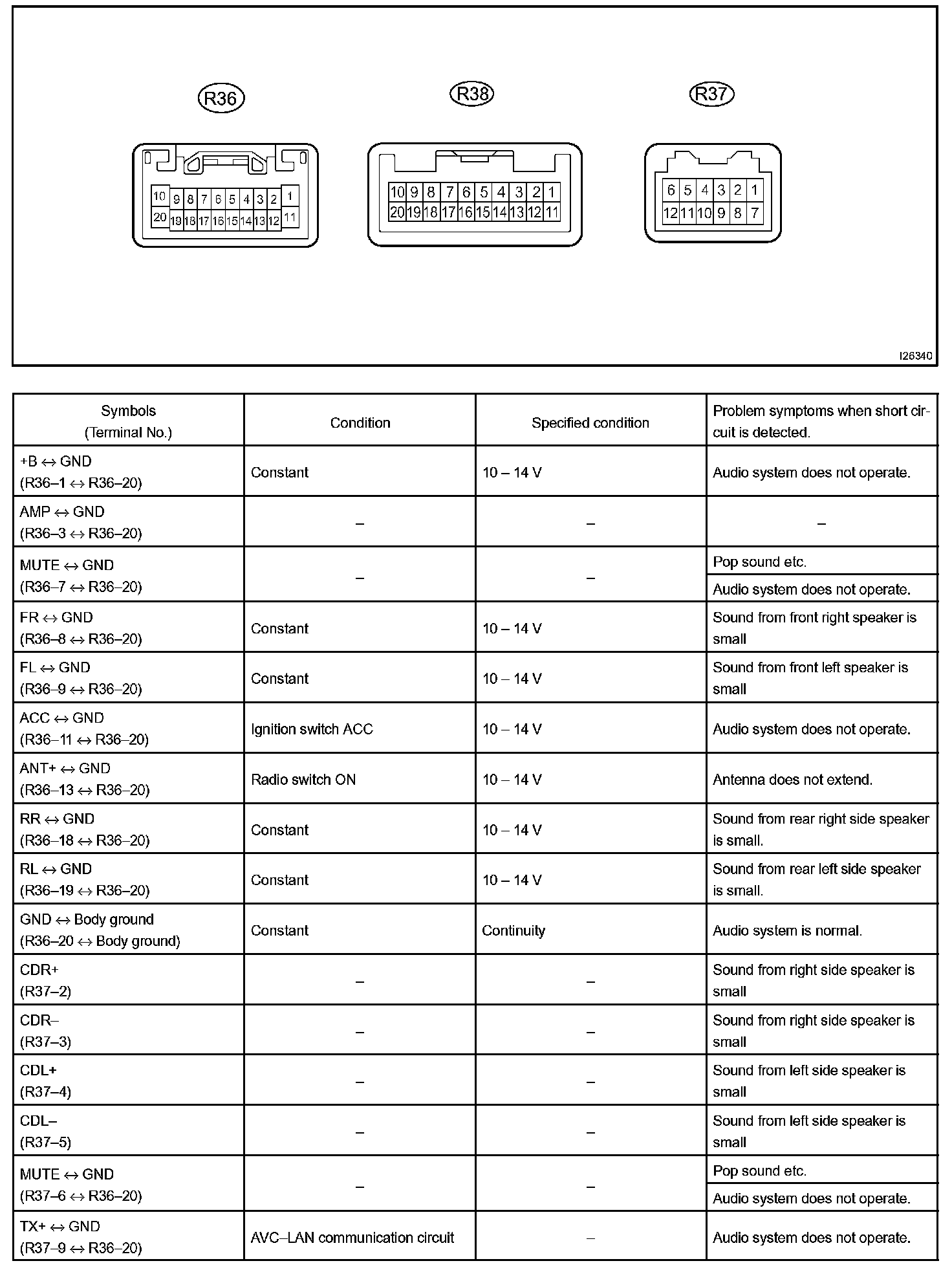

Terminals Of ECU/Pinouts - Radio Receiver Assembly Part 1:

Terminals Of ECU/Pinouts - Radio Receiver Assembly Part 2:

Radio receiver assembly

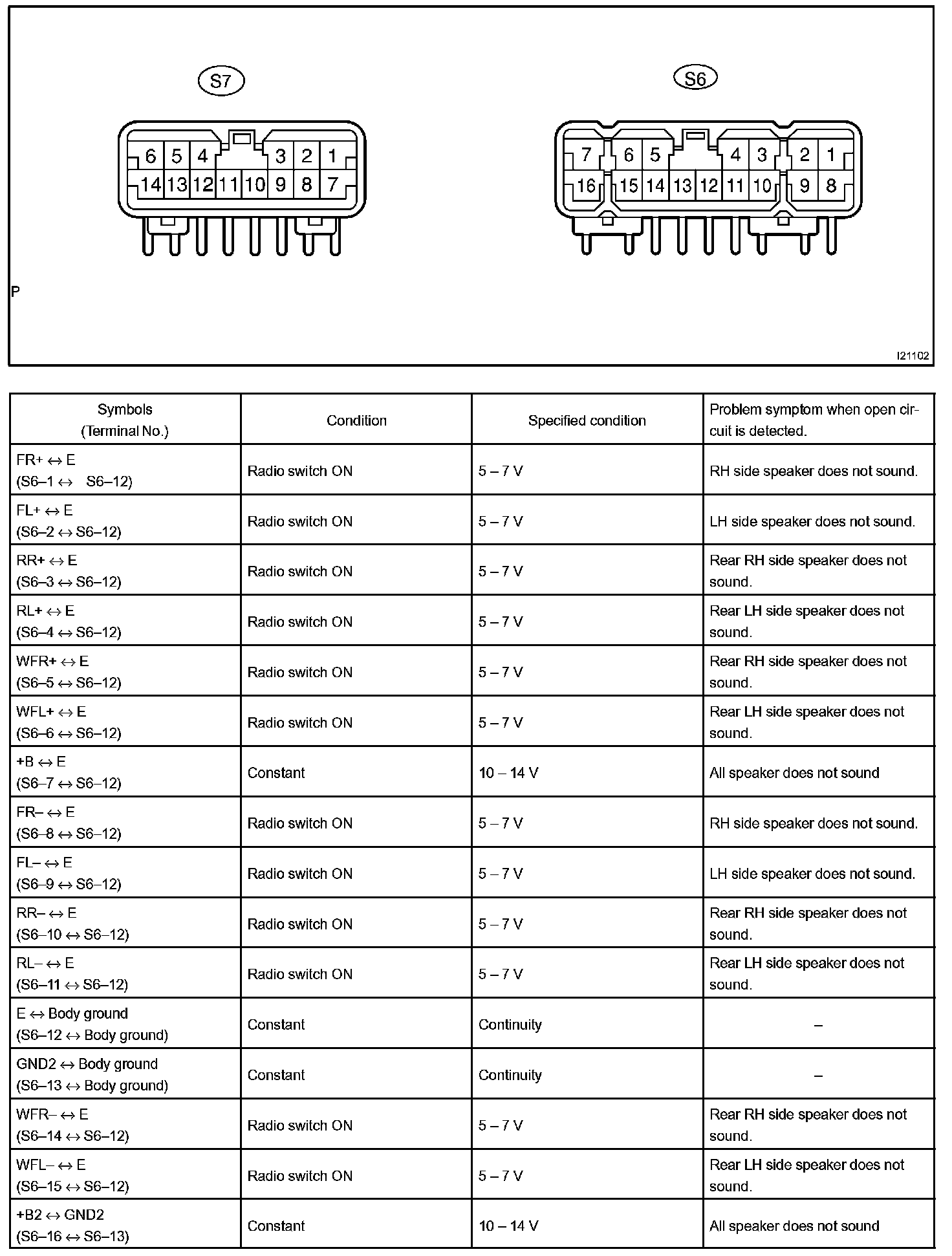

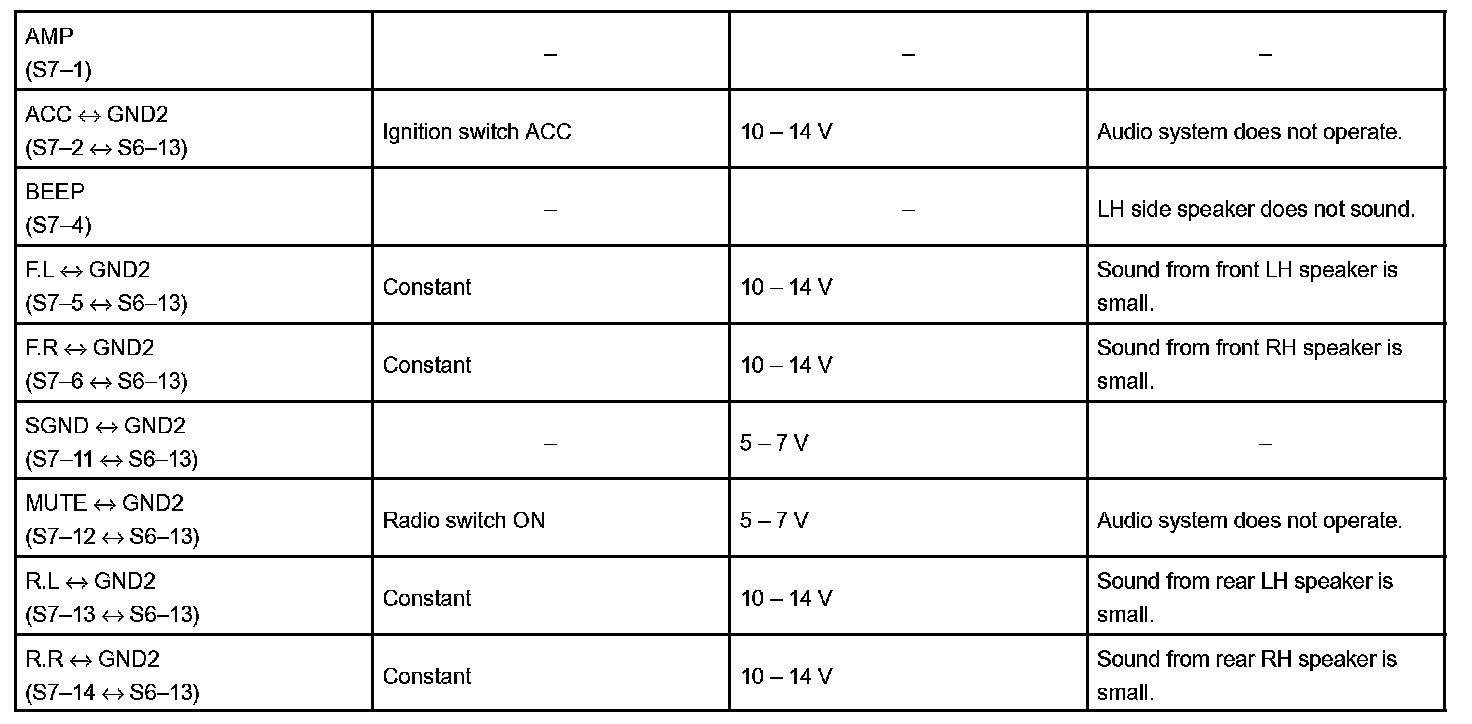

Terminals Of ECU/Pinouts - Stereo Component Amplifier Part 1:

Terminals Of ECU/Pinouts - Stereo Component Amplifier Part 2:

Stereo component amplifier

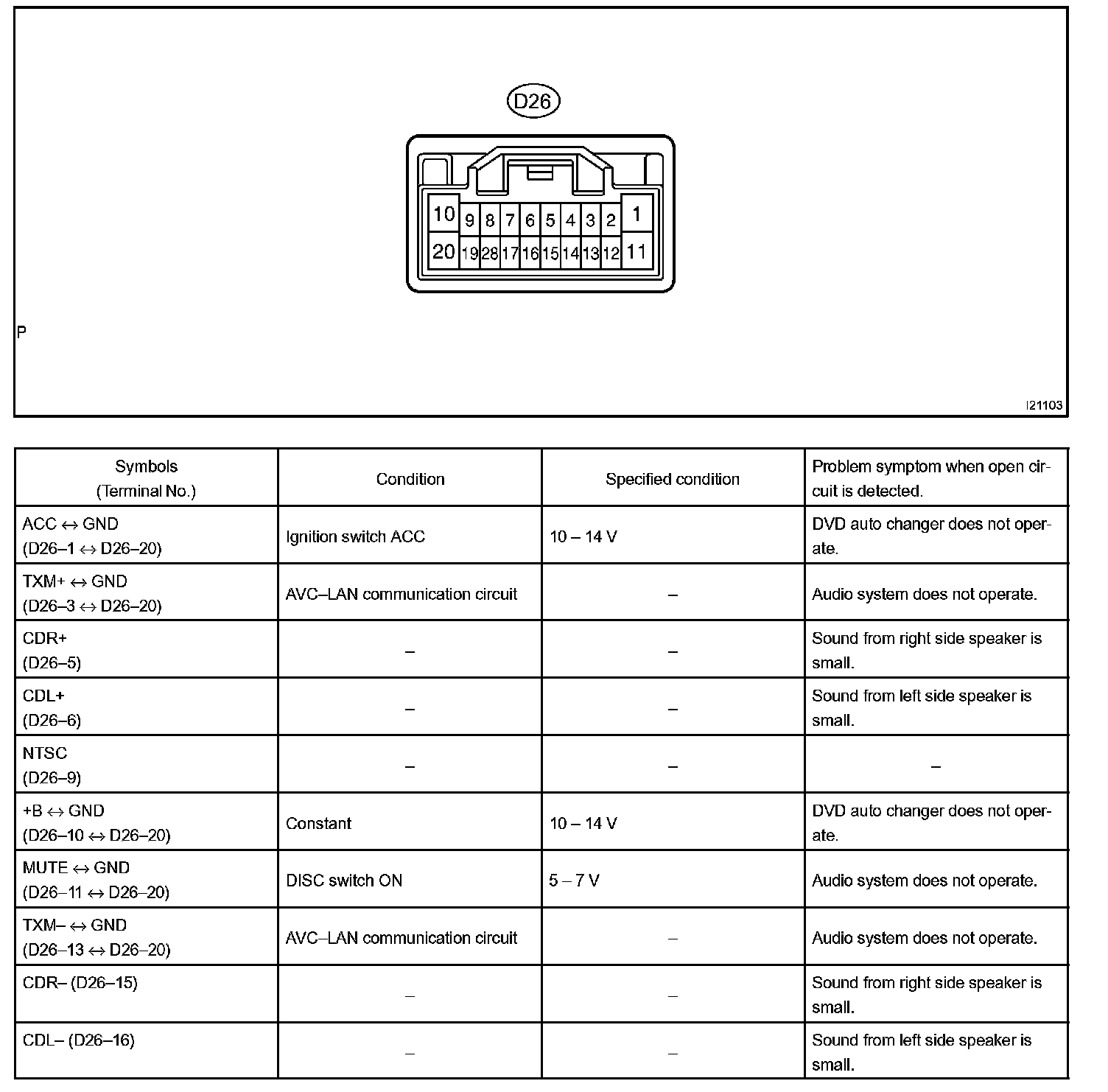

Terminals Of ECU/Pinouts - DVD Auto Changer:

DVD auto changer

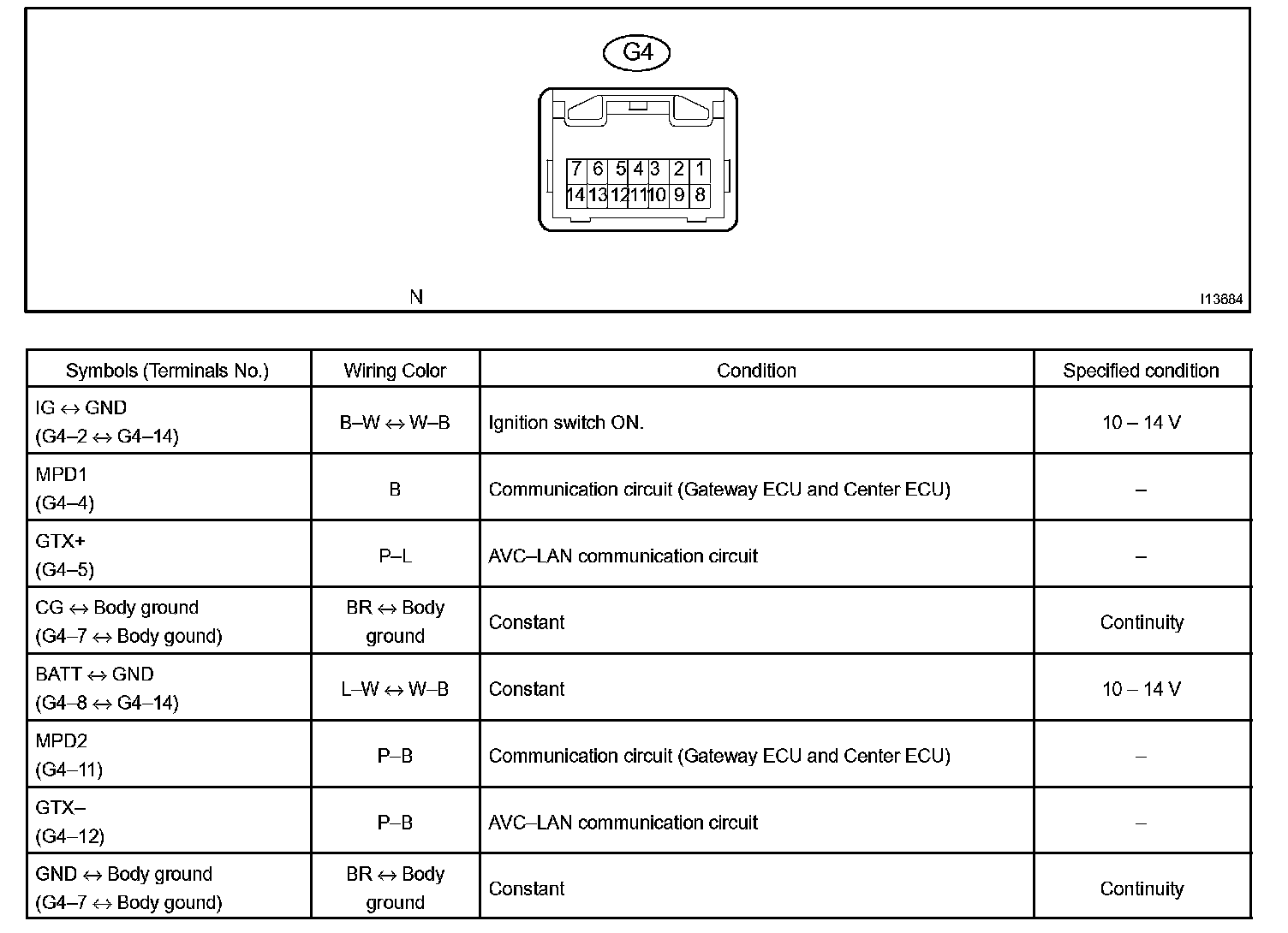

Terminals Of ECU/Pinouts - Gateway ECU:

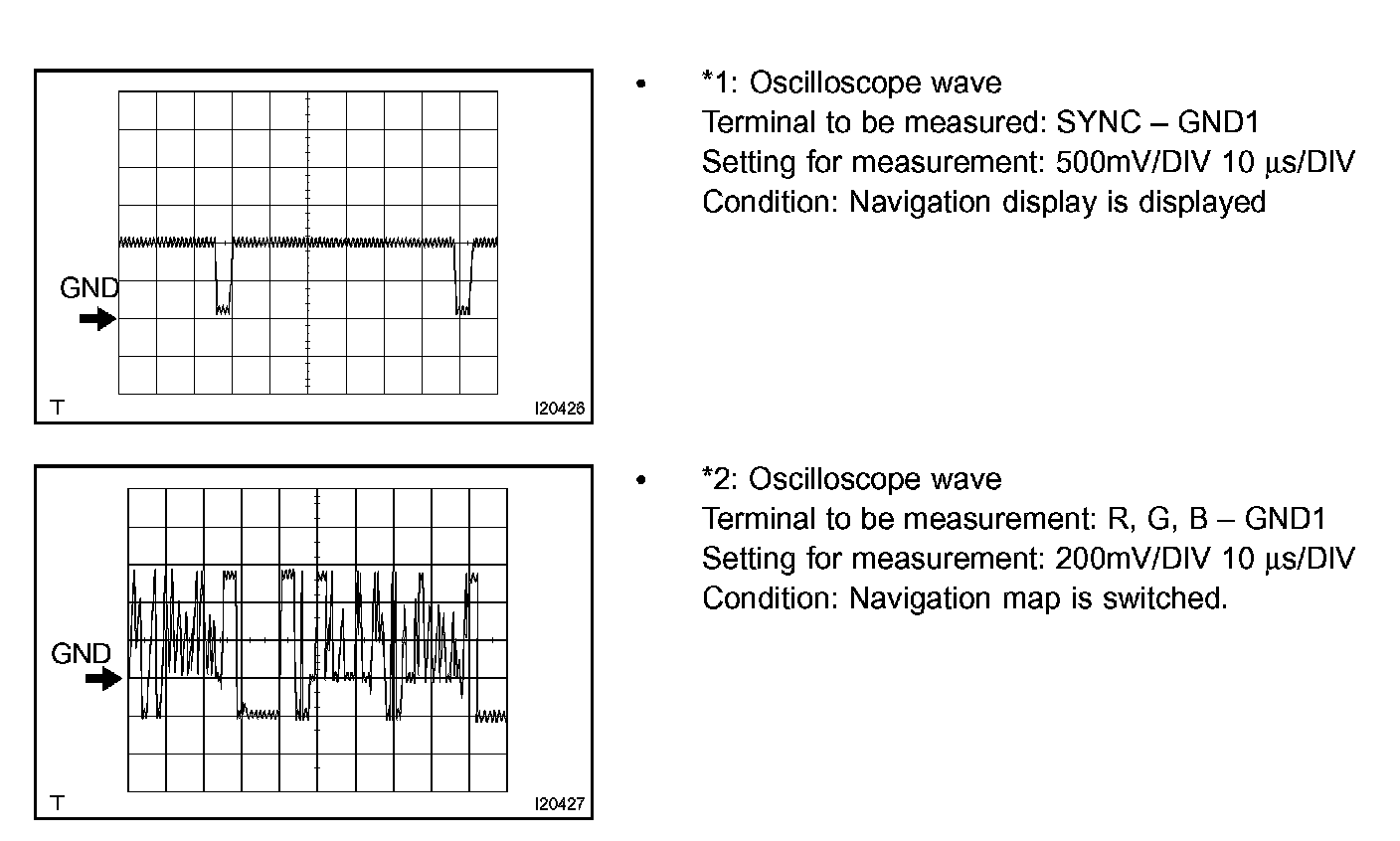

Oscilloscope Waveforms:

Gateway ECU
