Crankshaft Position Sensor: Service and Repair

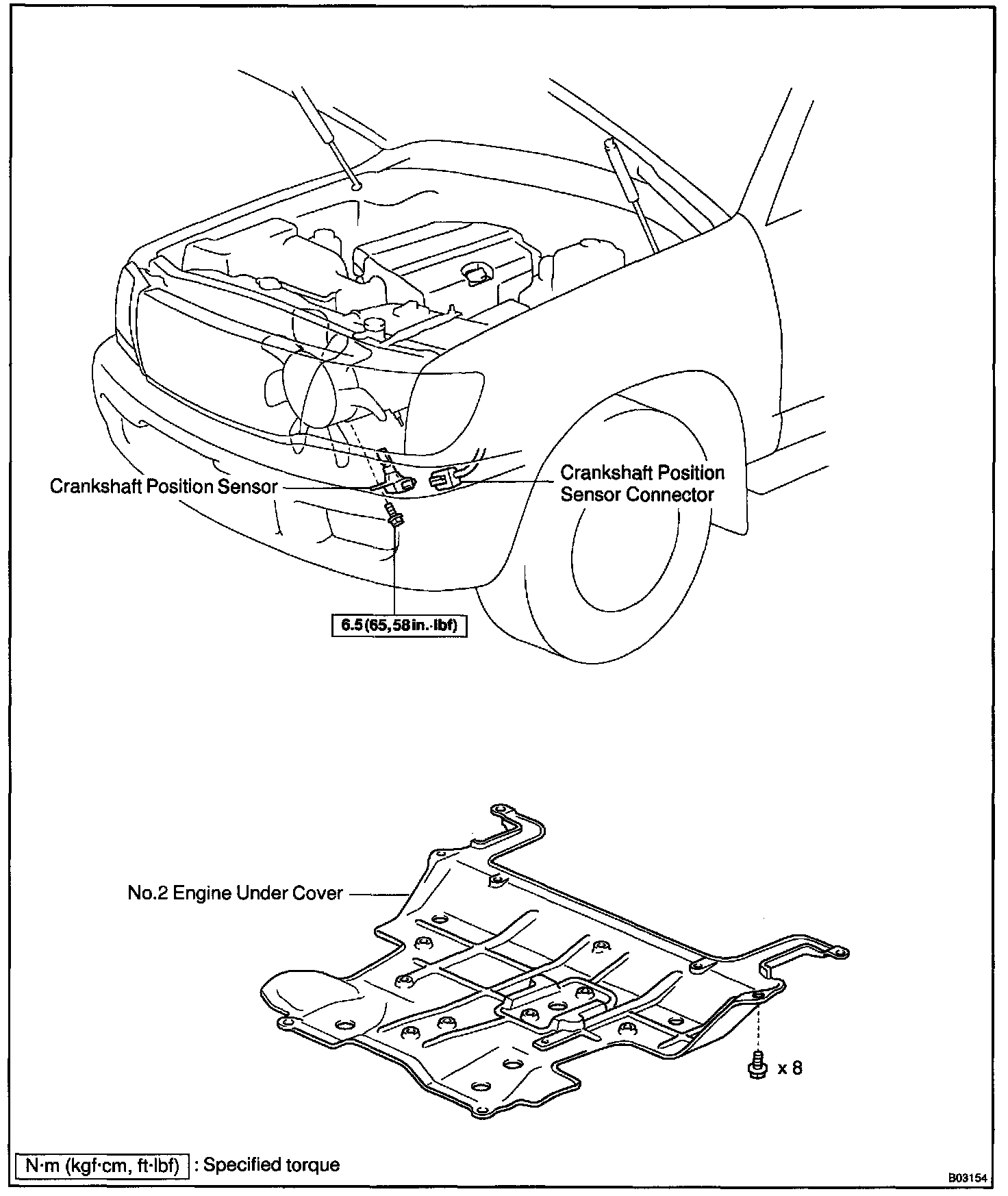

Crankshaft Position Sensor:
REMOVAL 1.
REMOVE NO.2 ENGINE UNDER COVER
2.
REMOVE
CRANKSHAFT POSITION SENSOR a.
Disconnect the
crankshaft position sensor connector.
b.

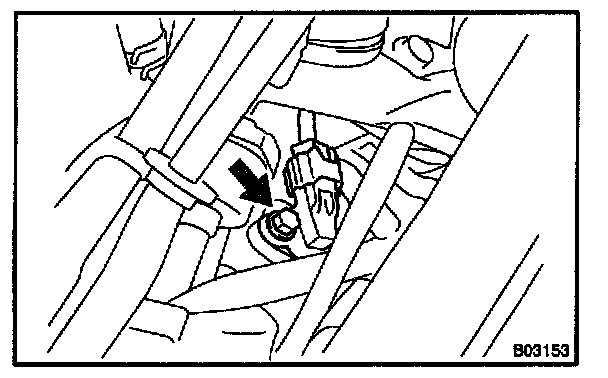

Remove the bolt and
crankshaft position sensor.
Torque:
6.5 N.m (65 kgf.cm, 58 in.lbf)INSTALLATIONInstallation Is In the reverse order of removal.
