Input Signal Check

INPUT SIGNAL CHECK

HINT:
- For check No.1 - No.3
Turn the ignition switch to ON.

- For check No.4
Jack up the vehicle.
Start the engine.
Release the clutch pedal (M/T).
Shift to D position (A/T).

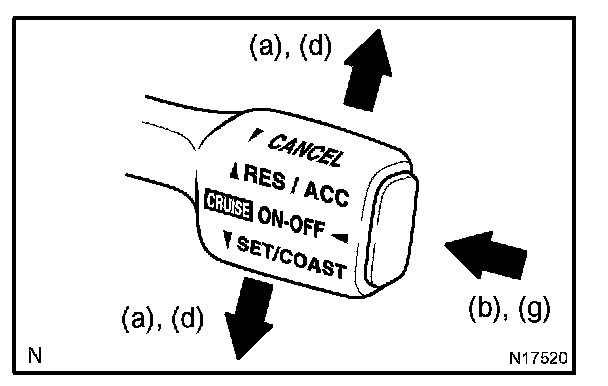

a. Keep the cruise control main switch assy to SET/COAST or RES/ACC position and hold it down or hold it up.
b. Press the cruise control main switch button to ON.
c. Check that the CRUISE main indicator light blinks twice or 3 times repeatedly after 3 seconds.
d. Turn the SET/COAST or RES/ACC switch to OFF.

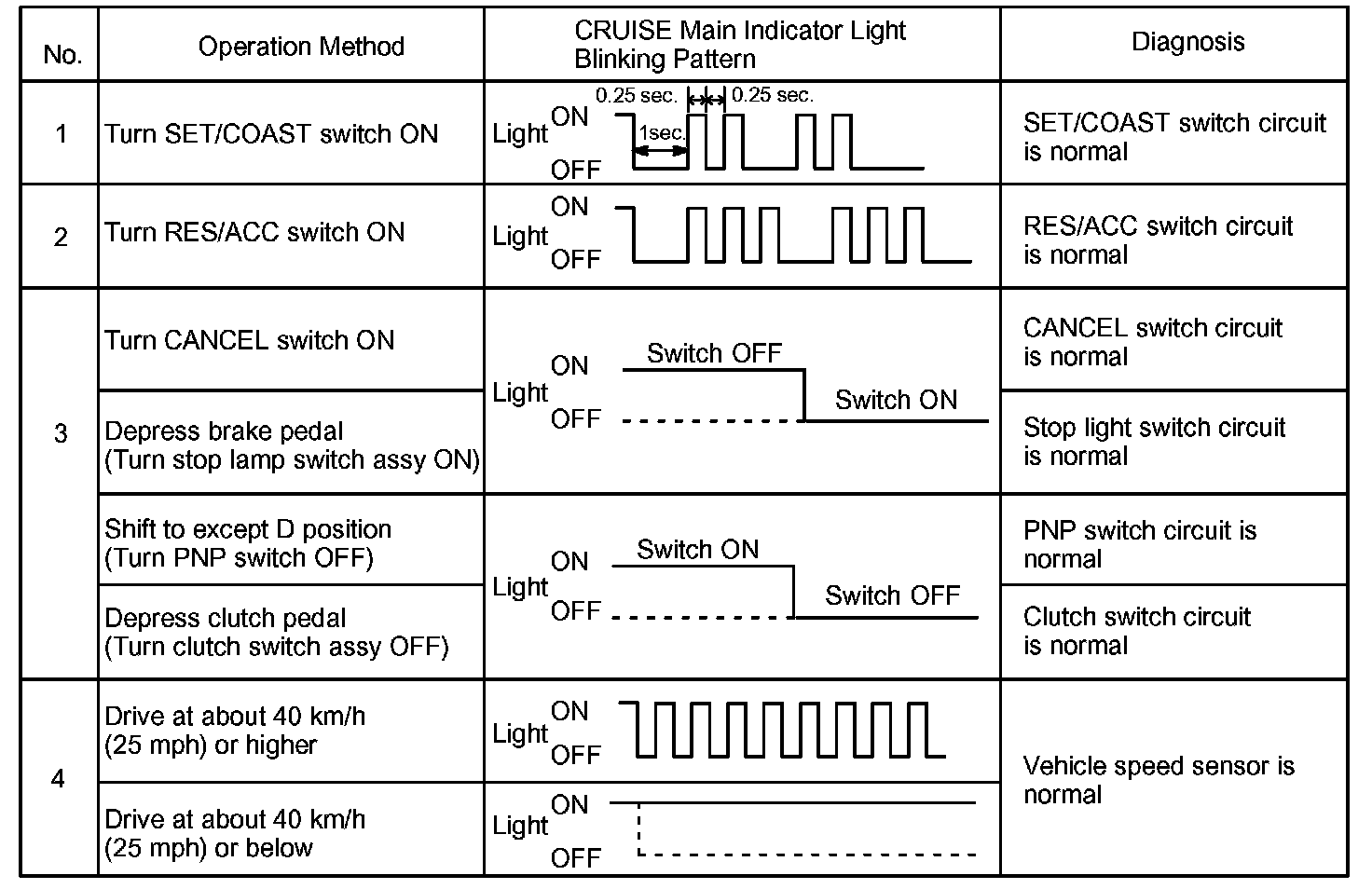

e. Operate each switch as listed in the table.
f. Read the blinking pattern of the CRUISE main indicator light.
g. After performing the check, turn the cruise control main switch button to OFF.






HINT: When 2 or more signals are input to the cruise control ECU assy, the lowest numbered code will be displayed first.
