Ignition Relay: Testing and Inspection

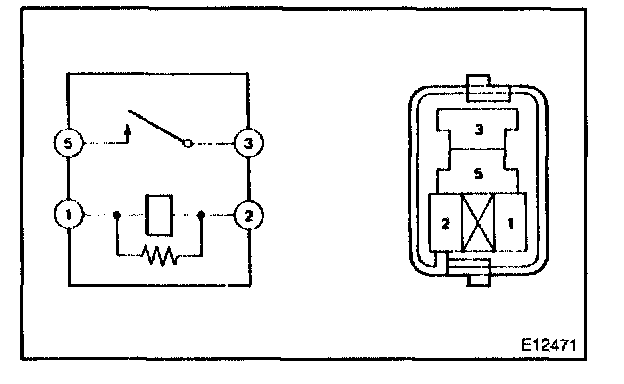

IGNITION RELAYContinuity inspection.
1.
Using an ohmmeter, check that continuity exists between each terminal.
Specified condition:
Between terminal 1 and 2 Continuity
Between terminal 3 and 5 No continuity
2.
Using an ohmmeter, check that continuity exists between terminals 3 and 5 when the battery voltage is applied across terminals 1 and 2.
