Camshaft Bearing

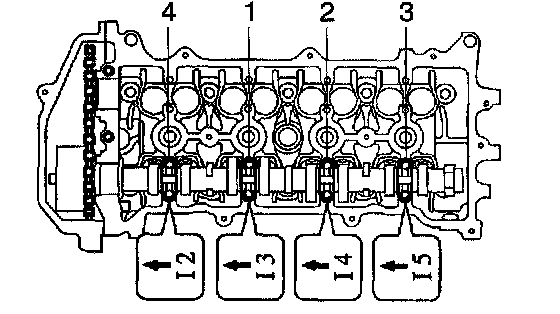

Examine the front marks and numbers and tighten the bolts in the order shown in the illustration.
Torque:

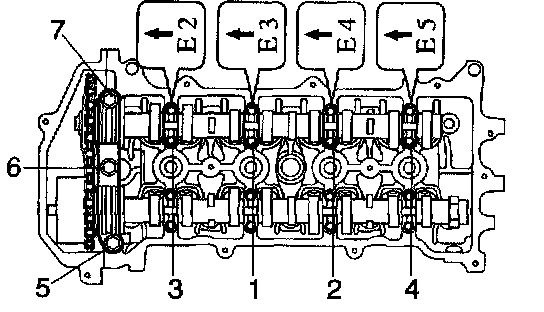

13 Nm (133 kgf-cm, 10 ft. lbs.) Examine the front marks and numbers and tighten the bolts in the order shown in the illustration.
Torque:
13 Nm (133 kgf-cm, 10 ft. lbs.) Install the bearing cap No. 1.
Torque:
23 Nm (235 kgf-cm, 17 ft. lbs.)
