Flywheel

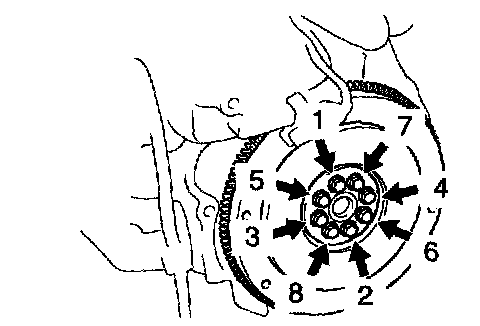

FLYWHEEL SUB-ASSY (M/T TRANSAXLE)
Torque:
49 Nm (500 kgf-cm, 36 ft. lbs.) Retighten the bolts by an additional
90°.
Maximum runout:
0.1 mm (0.004 inch)
