On-Vehicle Inspection
AIR PUMP SYSTEM (2ZZ-GE)
ON-VEHICLE INSPECTION 1.
INSPECT PRESSURE SENSOR
a.
Inspect the voltage.
(1)
Turn the
ignition switch ON.
(2)

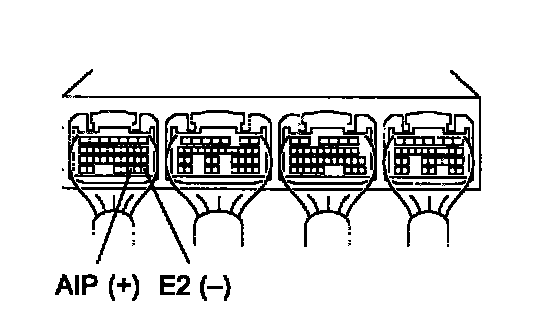

Using a voltmeter, measure the voltage between terminals AIP and E2 of the ECM connector.
If the voltage is not as specified, replace the pressure sensor.
