Transmission Speed Sensor: Service and Repair

REPLACEMENT
1. REMOVE AIR CLEANER ASSEMBLY WITH HOSE

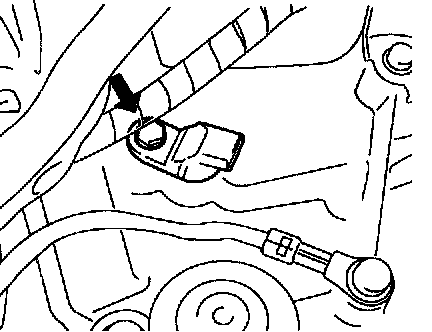

2. REMOVE TRANSMISSION REVOLUTION SENSOR
a. Disconnect the connector.
b. Remove the bolt and transmission revolution sensor.

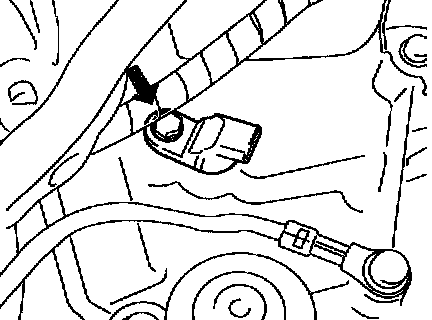

3. INSTALL TRANSMISSION REVOLUTION SENSOR
a. Coat O-ring with ATF.
b. Install the transmission revolution sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
c. Connect the connector.
4. INSTALL AIR CLEANER ASSEMBLY WITH HOSE
Torque: 7.0 Nm (71 kgf-cm, 62 inch lbs.)
