Central Control Module: Service and Repair
Audio & Visual System:

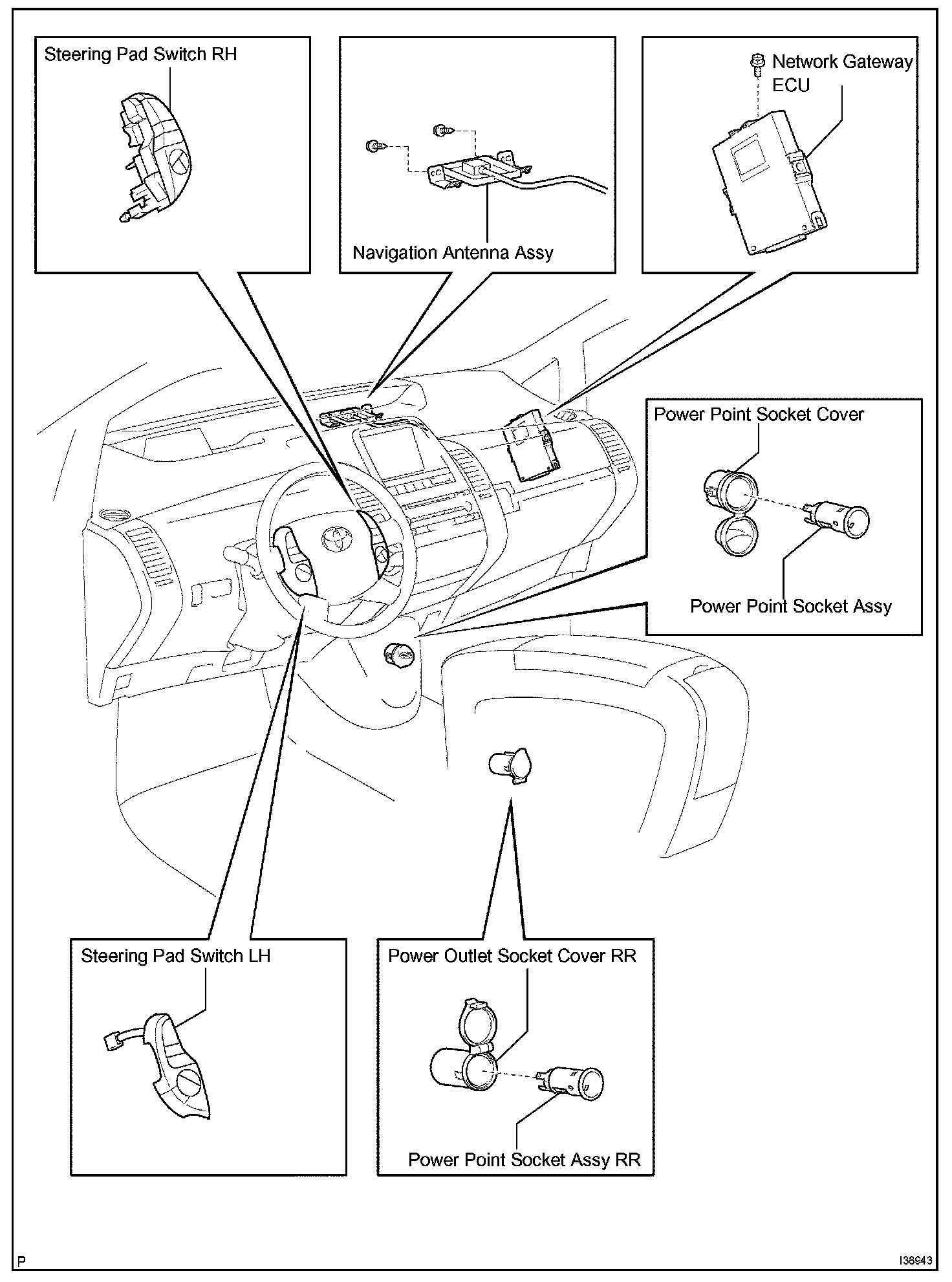

NETWORK GATEWAY ECUREPLACEMENTHINT: -
Installation is in the reverse order of removal.
1.
REMOVE INSTRUMENT PANEL SUB-ASSY W/ PASSENGER AIRBAG ASSY
2.
REMOVE NETWORK GATEWAY ECU
a.
Disconnect the connector.
b.

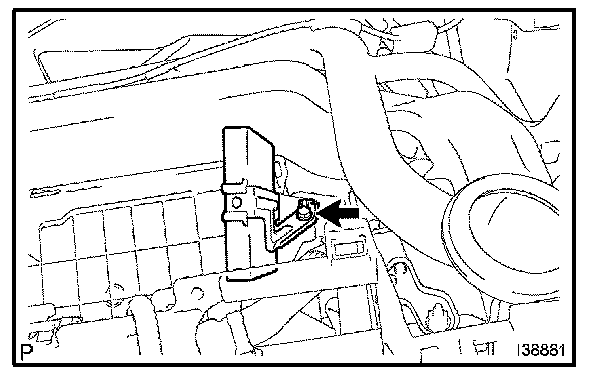

Remove the bolt and network gateway ECU.
3.
INSTALL INSTRUMENT PANEL SUB-ASSY W/ PASSENGER AIRBAG ASSY
