Navigation Module: Service and Repair

Audio & Visual System:

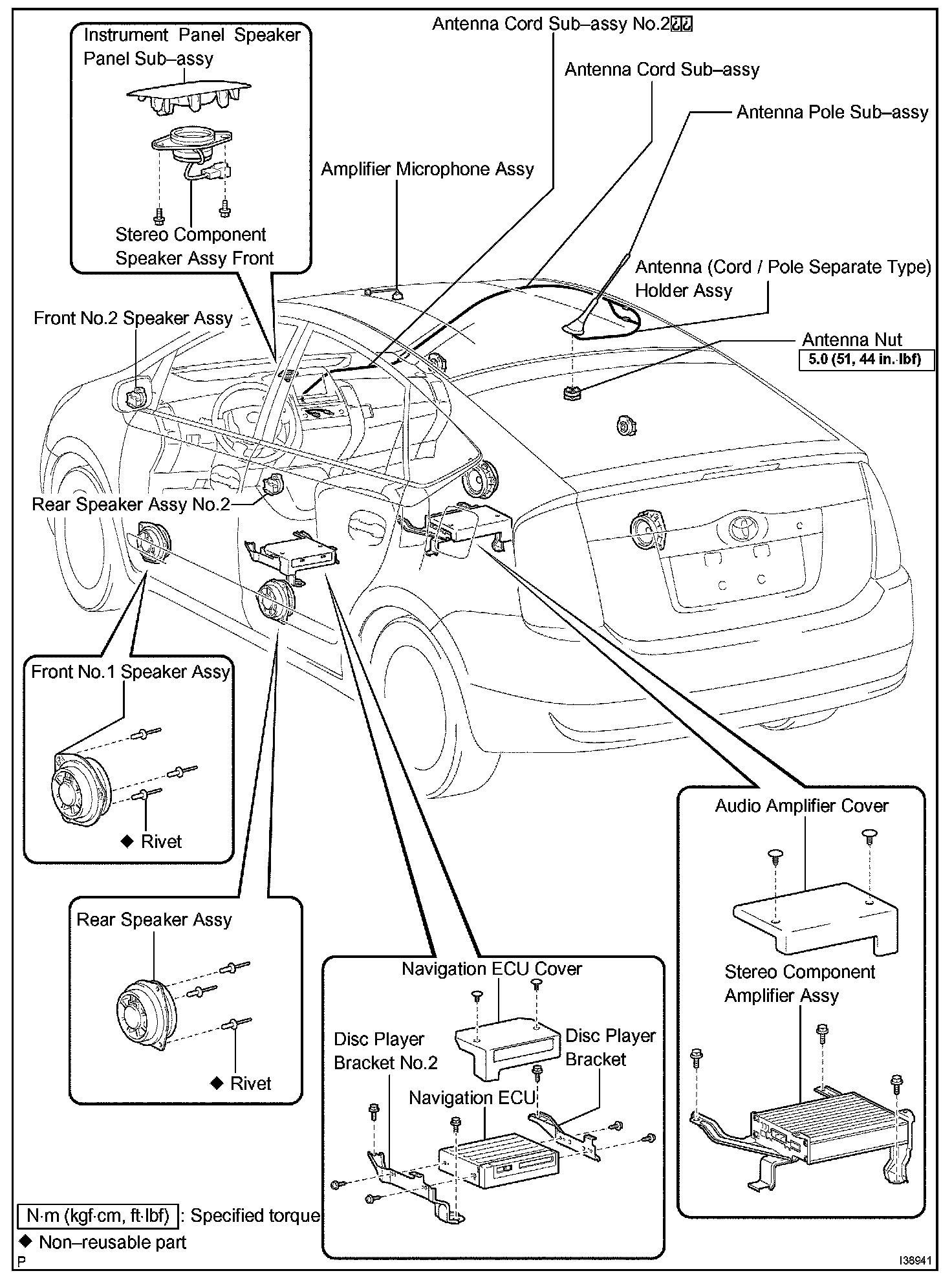

NAVIGATION ECU

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE FRONT SEAT ASSEMBLY LH




2. REMOVE NAVIGATION ECU COVER

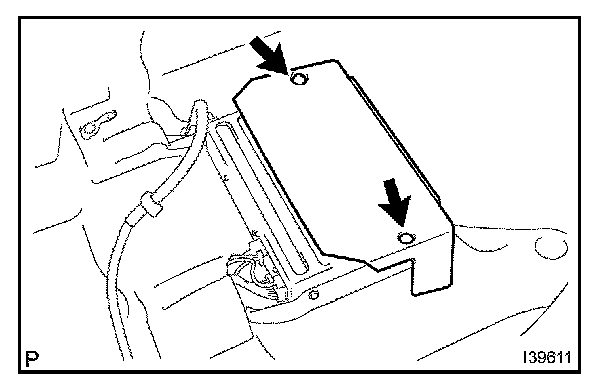

a. Remove the 2 clips and navigation ECU cover.




3. REMOVE NAVIGATION ECU W/BRACKET
a. Disconnect each connector.

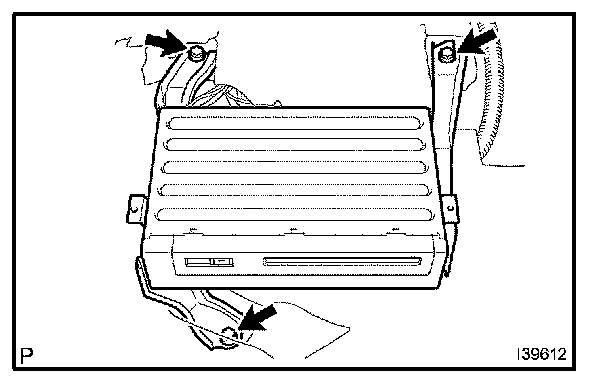

b. Remove the 3 bolts and navigation ECU w/ bracket.




4. REMOVE DISC PLAYER BRACKET

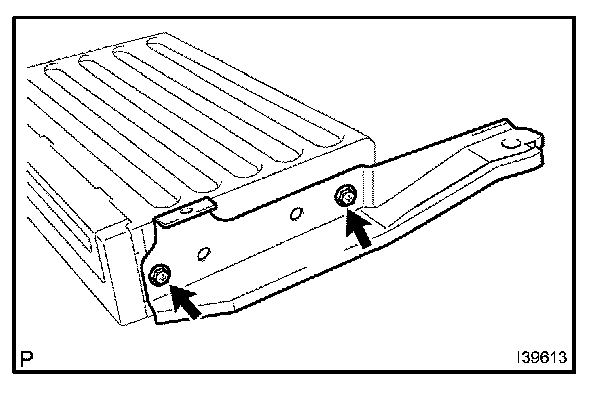

a. Remove the 2 bolts and disc player bracket.




5. REMOVE DISC PLAYER BRACKET N0.2

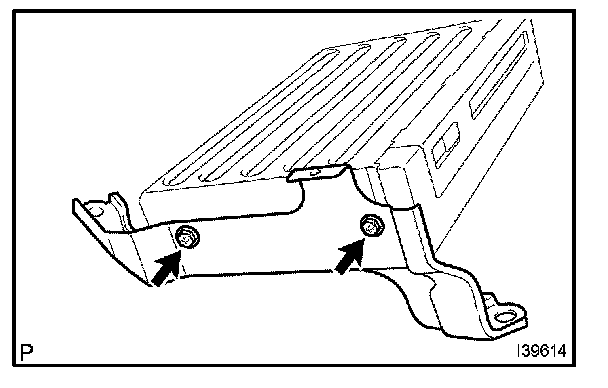

a. Remove the 2 bolts and disc player bracket No.2.

6. REMOVE NAVIGATION ECU
7. INSTALL FRONT SEAT ASSEMBLY LH
