Freeze Frame Data

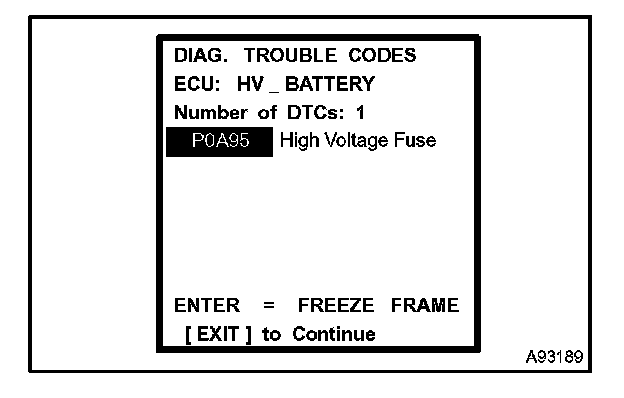

CHECK FREEZE FRAME DATA




a. If a DTC is present, select that DTC in order to display its freeze frame data.
b. Read freeze frame data recorded when the DTC was set.

FREEZE FRAME DATA

HINT: The freeze frame data record the operating conditions of the HV battery system and components when the DTC was set. It is used for estimating or simulating the condition of the vehicle when the malfunction occurred.

Freeze Frame Data:




a. Connect the hand-held tester to the DLC3.
b. Turn the power switch ON (IG).
c. Turn the hand-held tester ON.
d. Select the following menu items: DIAGNOSIS / OBD/MOBD / HV BATTERY / DTC INFO / TROUBLE CODES.

e. Select a DTC in order to display its freeze frame data.

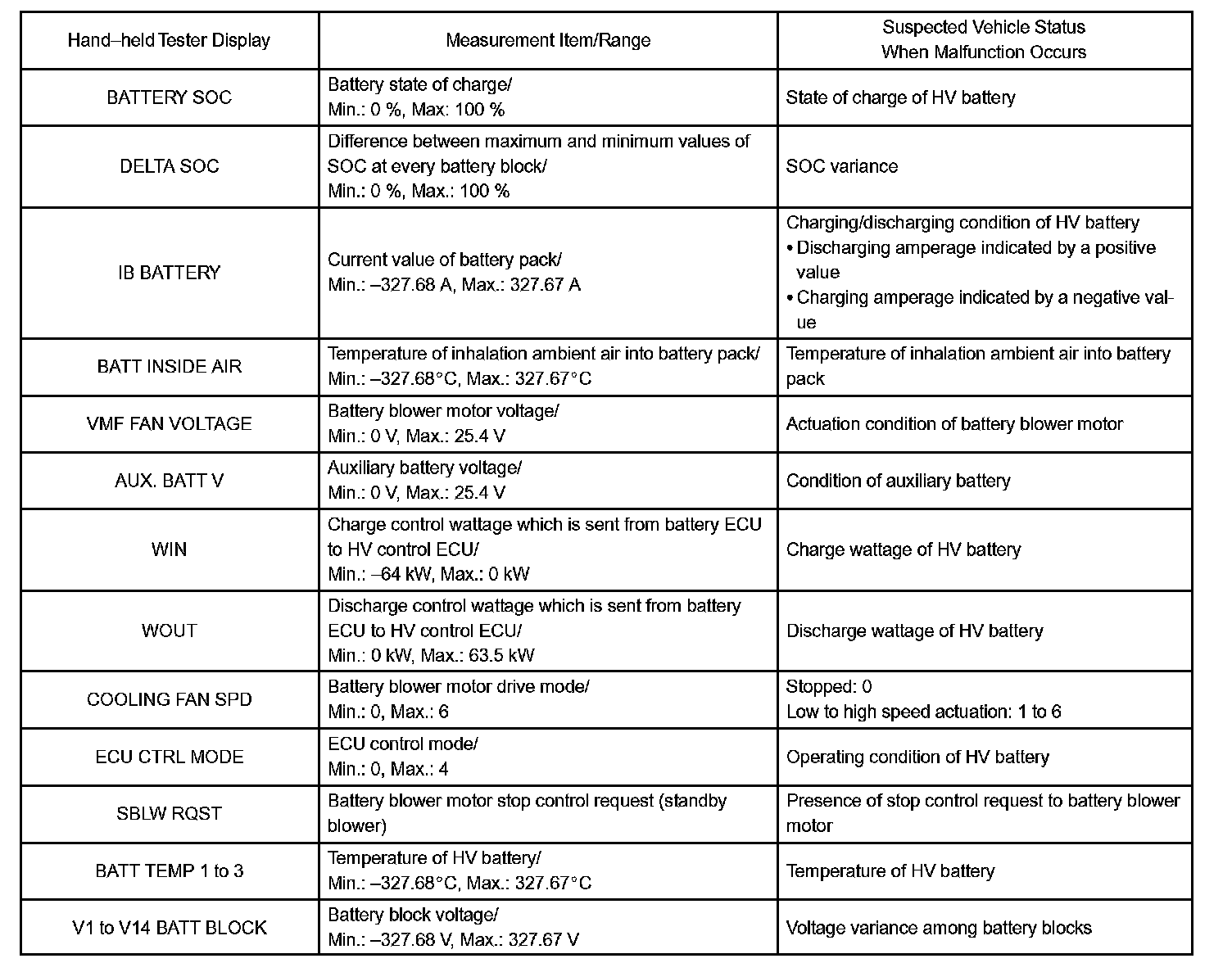

f. Check the freeze frame data of the DTC that has been detected. Freeze frame data
