Customize Parameters

CUSTOMIZE PARAMETERS

HINT: The following items can be customized.

NOTE:
- Check if the items requested from a customer can be customized before beginning work.
- Be sure to record current values before customization.
- When troubleshooting, be careful as the function may be turned off by customization. For example, when the wireless operation does not function, check the wireless operation continues after customization, then perform troubleshooting.

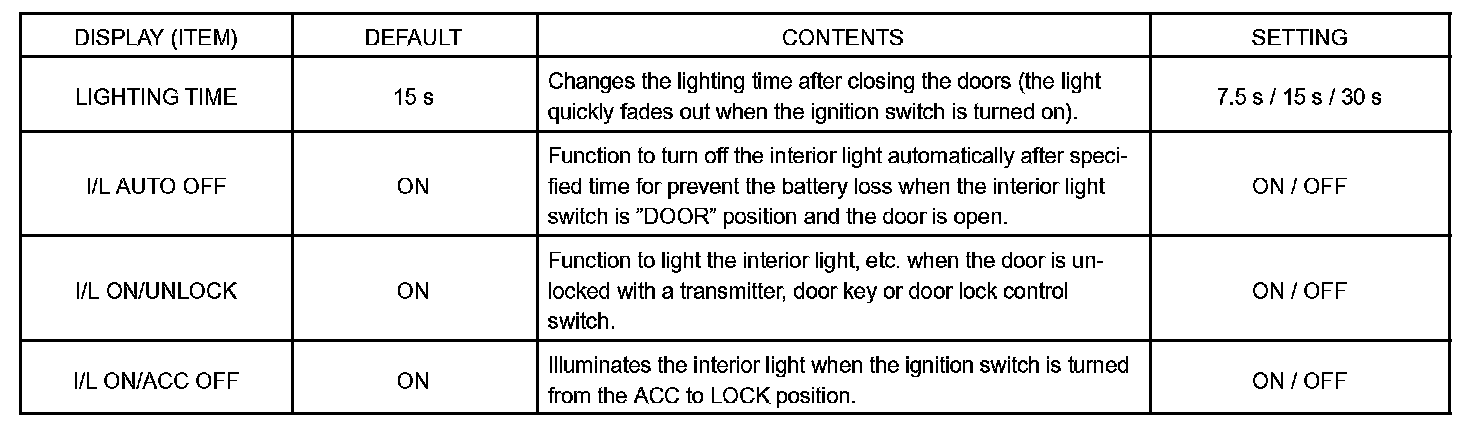

Illuminated Entry:




ILLUMINATED ENTRY

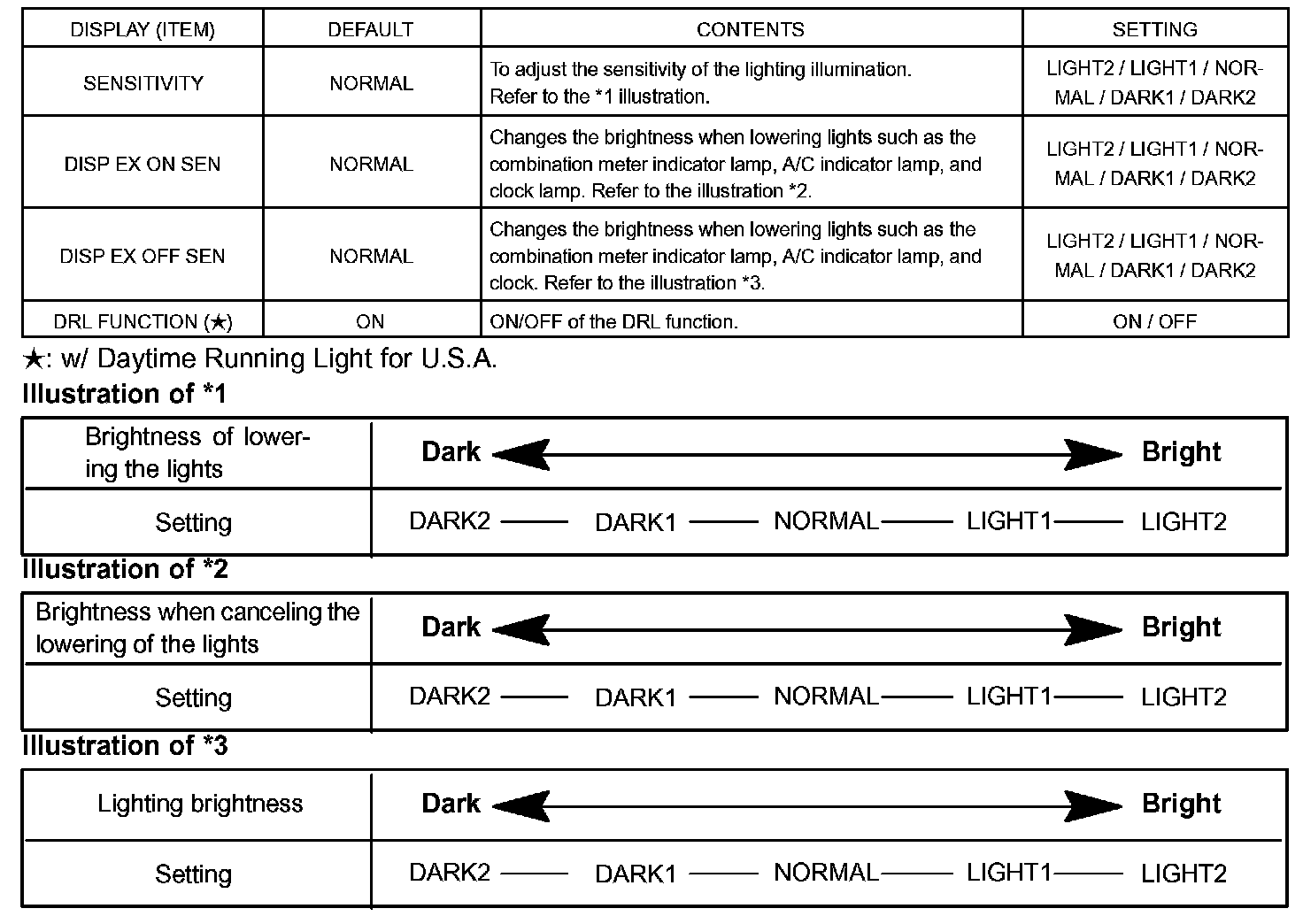

Light Control:




LIGHT CONTROL
