Accelerator Pedal Position Sensor: Service and Repair

ACCELERATOR PEDAL ROD ASSY
REPLACEMENT
1. REMOVE REAR FLOOR BOARD NO.2
2. REMOVE DECK FLOOR BOX REAR
3. REMOVE REAR FLOOR BOARD NO.3
4. DISCONNECT BATTERY NEGATIVE TERMINAL

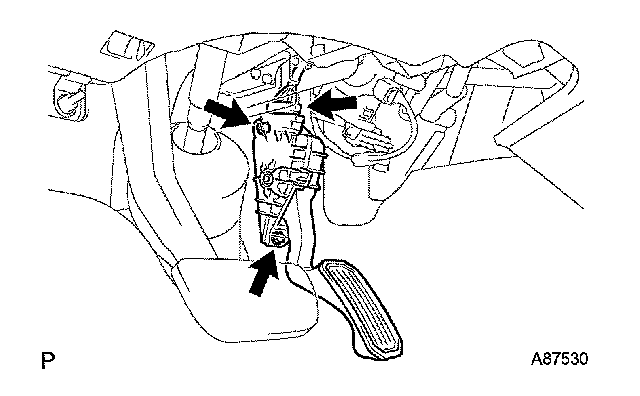

5. REMOVE ACCELERATOR PEDAL ROD ASSY
a. Disconnect the accelerator position sensor connector.
b. Remove the 2 bolts, then remove the accelerator pedal.
6. INSTALL ACCELERATOR PEDAL ROD ASSY
Torque: 7.5 Nm (77 kgf-cm, 66 inch lbs.)
7. CONNECT BATTERY NEGATIVE TERMINAL
Torque: 6.0 Nm (61 kgf-cm, 53 inch lbs.)
8. INSTALL REAR FLOOR BOARD NO.3
9. INSTALL DECK FLOOR BOX REAR
10. INSTALL REAR FLOOR BOARD NO.2
11. POWER WINDOW CONTROL SYSTEM INITIALIZE
