Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW METER

REPLACEMENT

1. REMOVE REAR FLOOR BOARD NO.2
2. REMOVE DECK FLOOR BOX REAR
3. REMOVE REAR FLOOR BOARD NO.3
4. DISCONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)

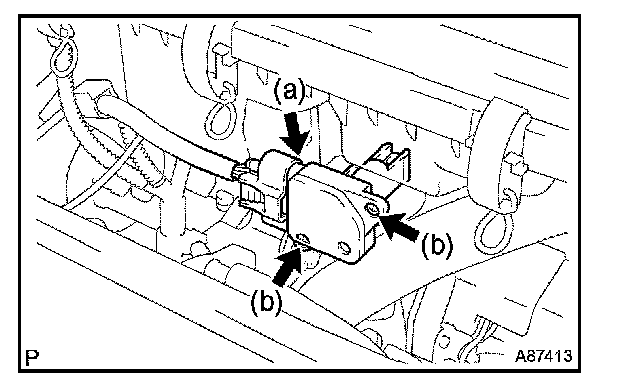

5. REMOVE MASS AIR FLOW METER




a. Disconnect the mass air flow meter connector.
b. Remove the 2 screws, then remove the mass air flow meter.

6. INSTALL MASS AIR FLOW METER

NOTE: Be careful that the O-ring is not cracked or jammed when installing.

7. CONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)
8. INSTALL REAR FLOOR BOARD NO.3
9. INSTALL DECK FLOOR BOX REAR
10. INSTALL REAR FLOOR BOARD NO.2
11. POWER WINDOW CONTROL SYSTEM INITIALIZE
