Malfunction Indicator Lamp: Service and Repair

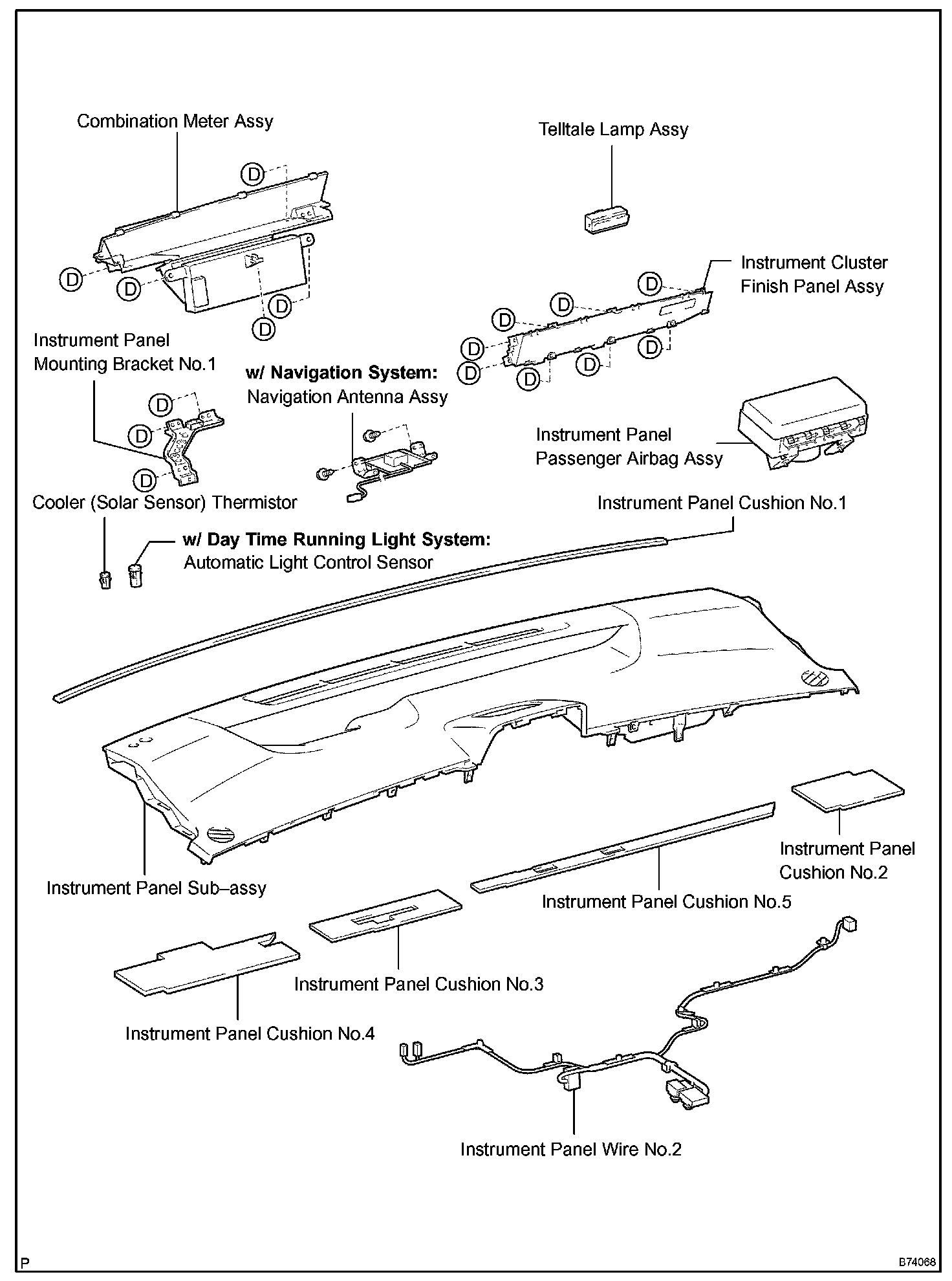

Instrument Panel/Meter:
TELLTALE LAMP ASSYREPLACEMENTHINT: -
Installation is in the reverse order of removal.
1.
REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
2.
REMOVE TELLTALE LAMP ASSY
a.
Disconnect the connector.
b.
Disengage the 2 claws and then remove the telltale lamp assy.
3.
INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
