Recalibration Label Installation

1. Install the Recalibration (Authorized Modifications) Label.

A. Using a permanent marker, write the following information on the recalibration label:

^ ECM (PCM) part number 89661-47101 (or newer part number).

^ Calibration number 34705100 (or newer calibration).

^ Dealer code.

^ Repair date.

^ Change authority (this TSB No.).

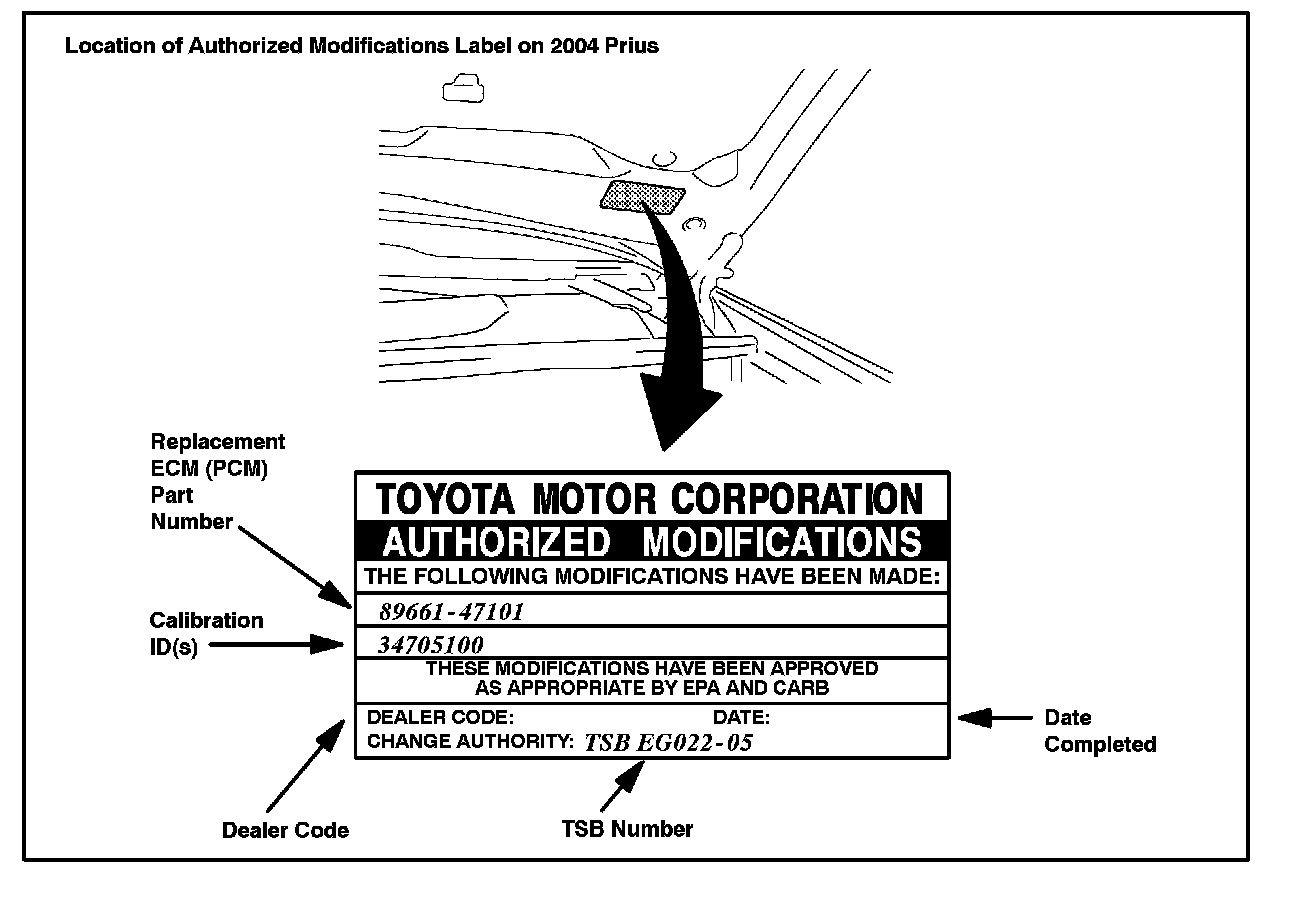

B. Install the Recalibration Label on the underside of the hood in front of the driver (see illustration).
