III. Preparation

A. PARTS

^ No parts are necessary for the completion of this campaign, however, order Recalibration Labels, Material Number 00451-00001-LBL, from the Material Distribution Center for installation after the calibration is completed.

B. TOOLS

^ Toyota Diagnostic Tester

^ CAN Interface Module

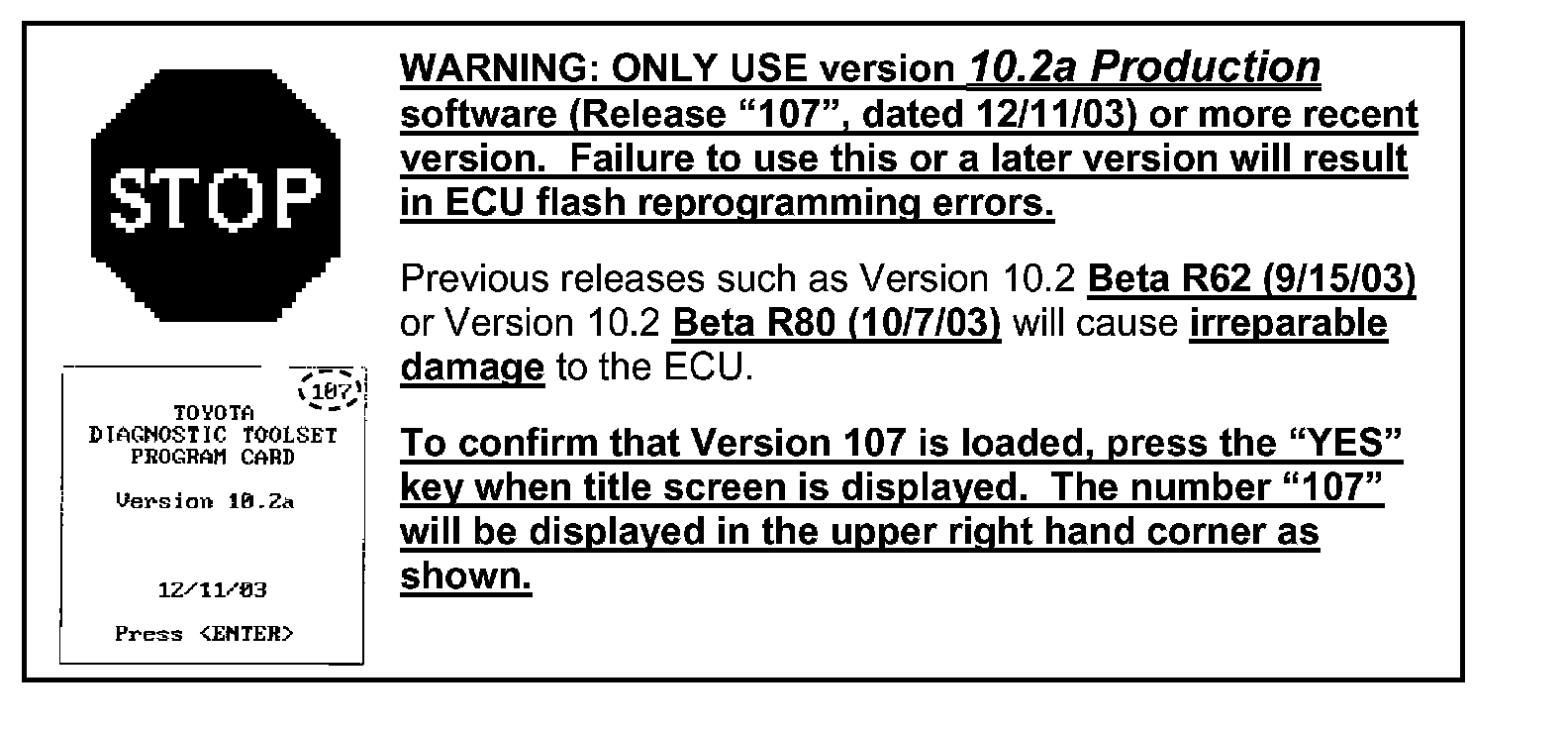

^ 12 Megabyte Diagnostic Tester Program Card with the Version 1O.2a Production or later version software file and calibration update wizard software file.

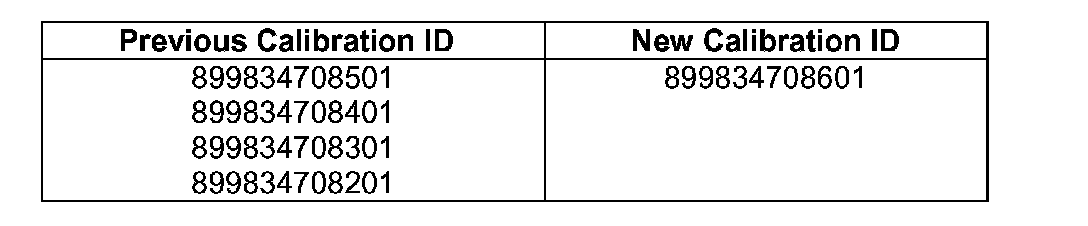

The new Calibration file can be downloaded from the ECU Flash Reprogramming section of TIS.
