Removal And Installation

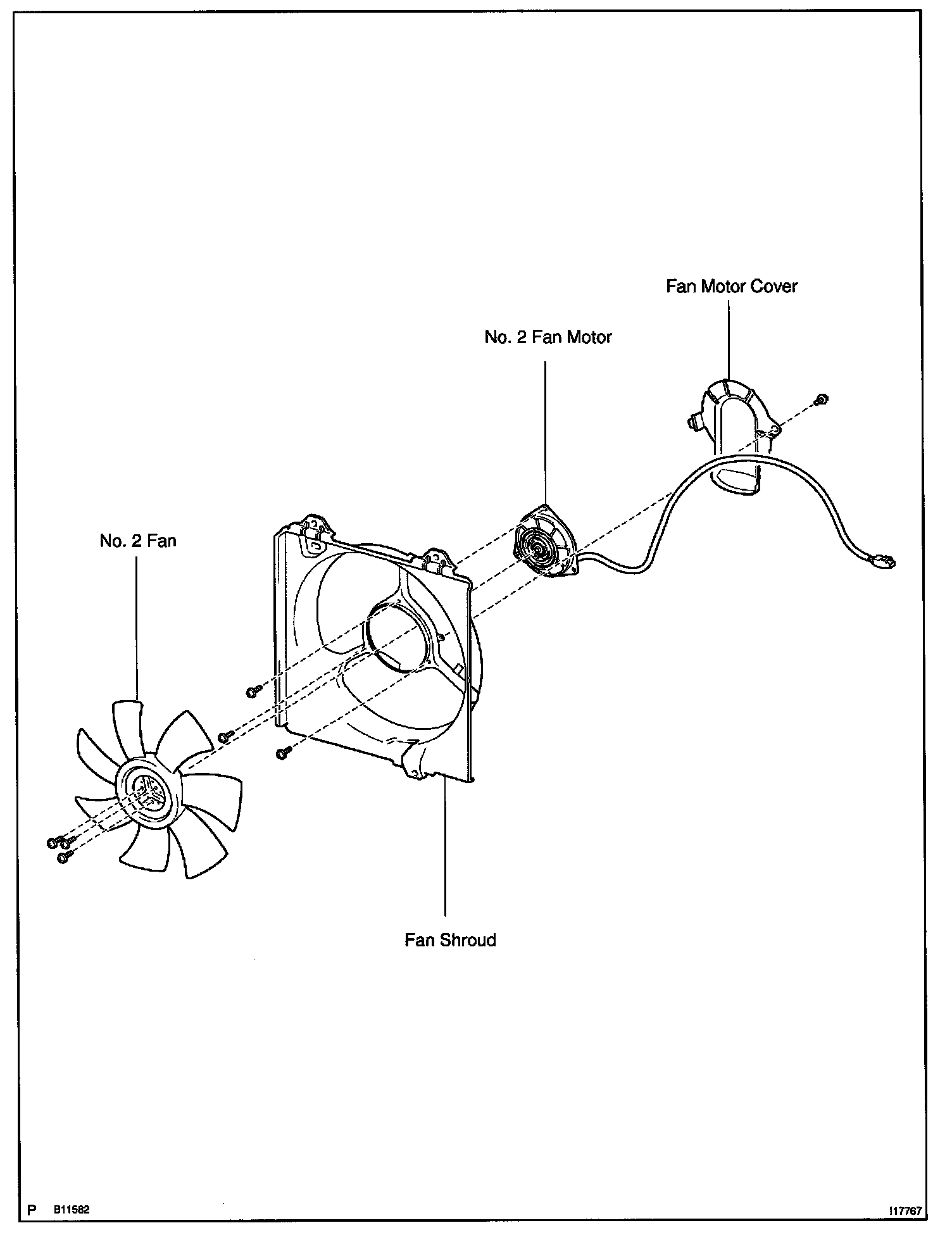

Condenser Fan (Part 1):

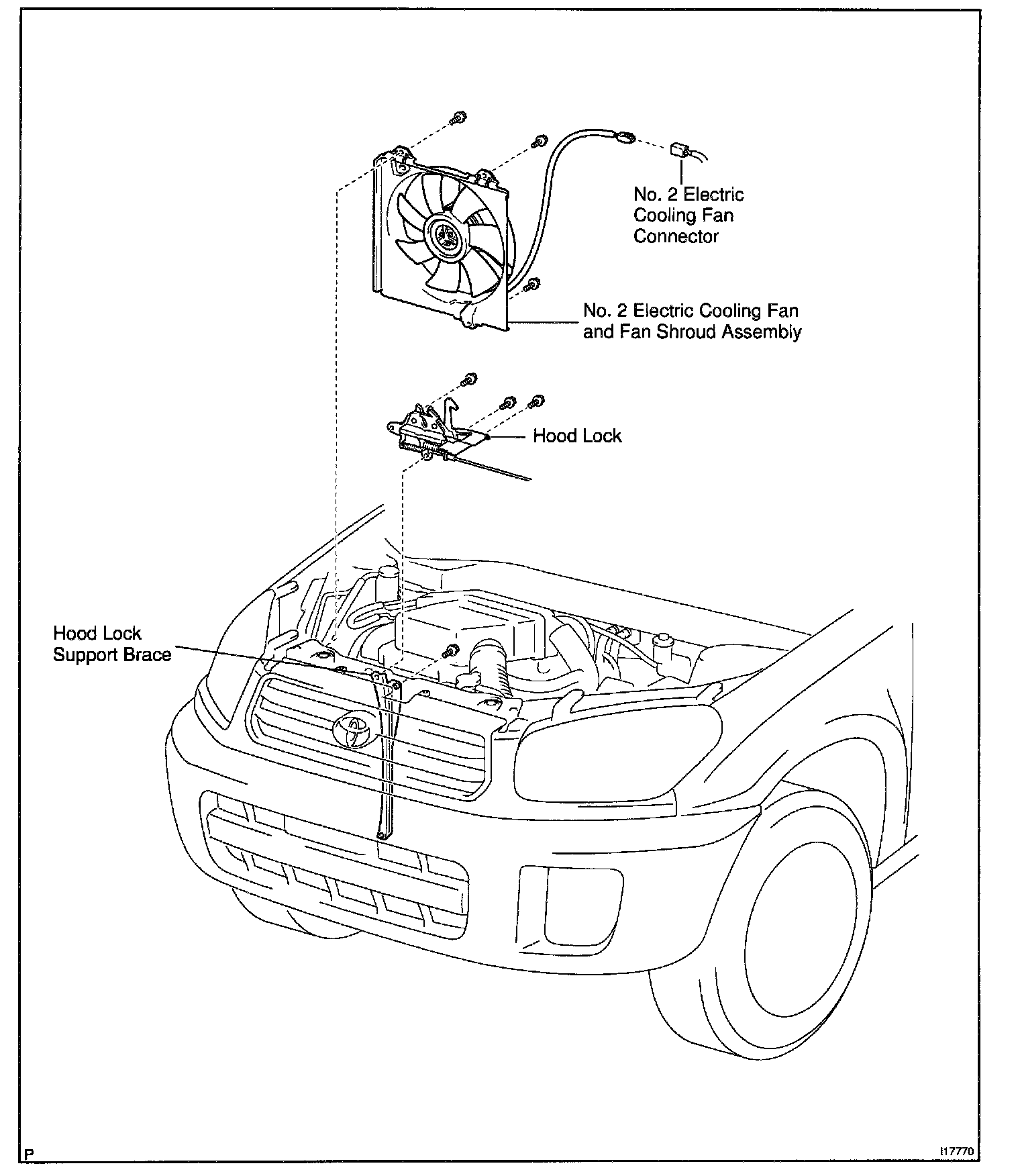

Condenser Fan (Part 2):

REMOVAL




1. REMOVE HOOD LOCK
Remove the 3 bolts and hood lock.




2. DISCONNECT HOOD LOCK SUPPORT BRACE
Remove the bolt.

3. REMOVE NO.2 ELECTRIC COOLING FAN AND FAN SHROUD ASSEMBLY




a. Disconnect the No.2 electric cooling fan connector and clamp.

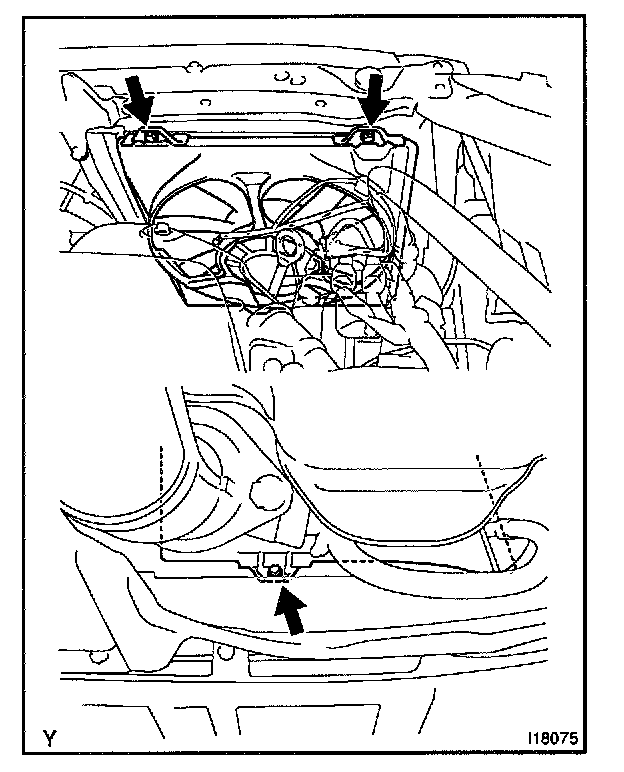

b. Remove the 3 bolts, the No.2 electric cooling fan and fan shroud assembly.

INSTALLATION

1. INSTALL NO.2 ELECTRIC COOLING FAN AND FAN SHROUD ASSEMBLY

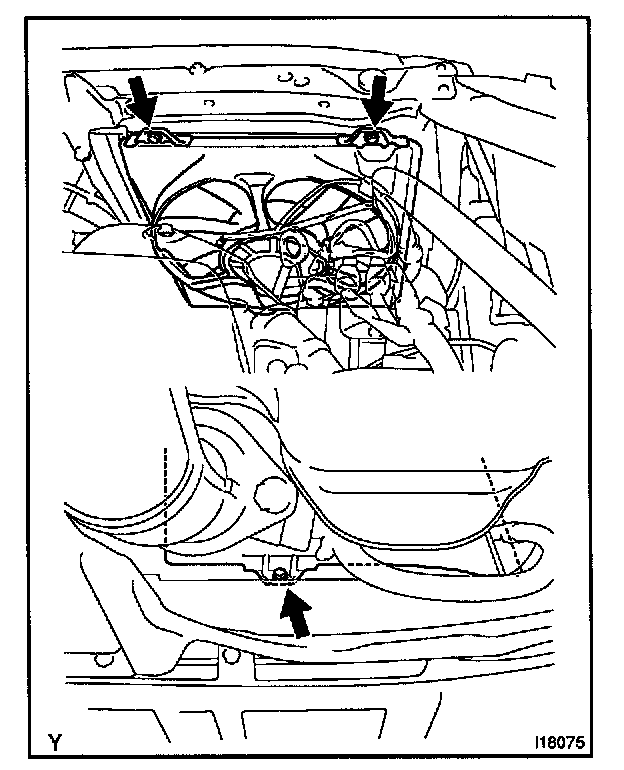

a. Install the No.2 electric cooling fan and fan shroud assembly with the 3 bolts.




b. Connect the No.2 electric cooling fan connector and clamp.




2. INSTALL HOOD LOCK SUPPORT BRACE
Install the bolt.




3. INSTALL HOOD LOCK
Install the hood lock with the 3 bolts.
