Airbag Sensor Connectors

DISCONNECTION OF CONNECTOR FOR AIRBAG SENSOR ASSEMBLY

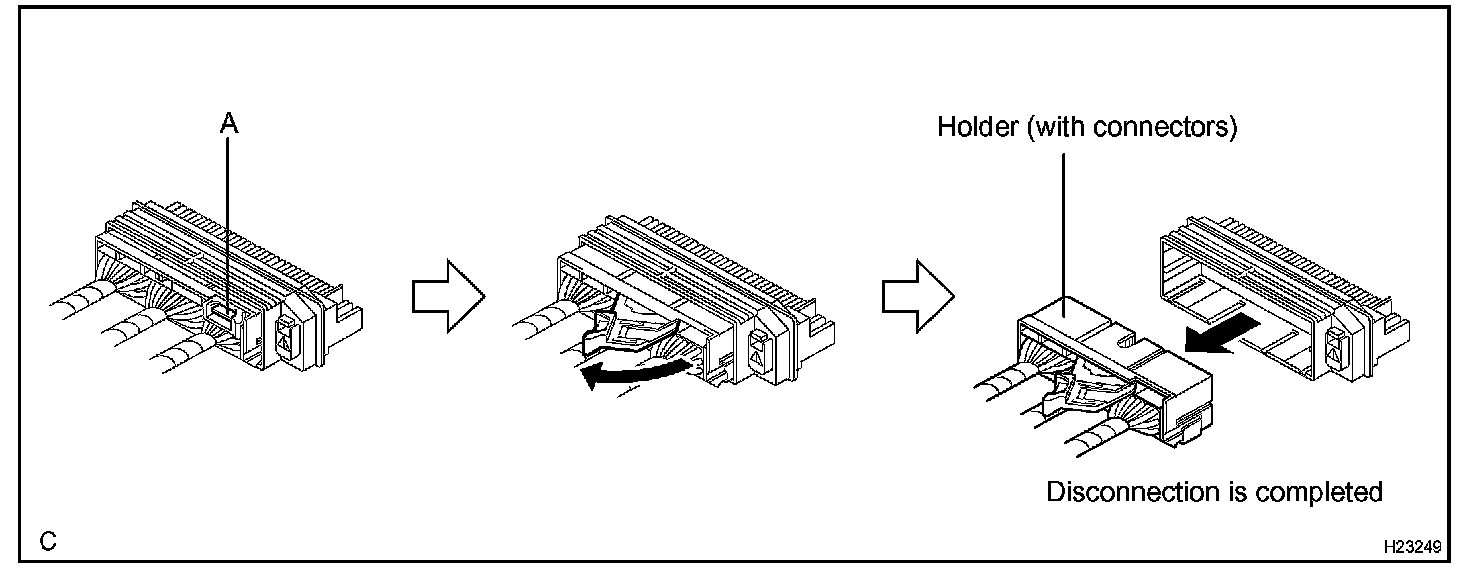

(a) Pull the lever by pushing the part A as shown in the illustration and disconnect the holder (with connectors).








HINT: Perform the following procedures when replacing the holder.

(b) Remove the holder.

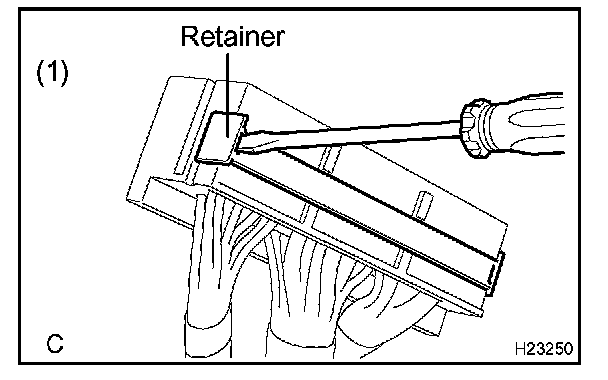

(1) Using a screwdriver, remove the retainer.

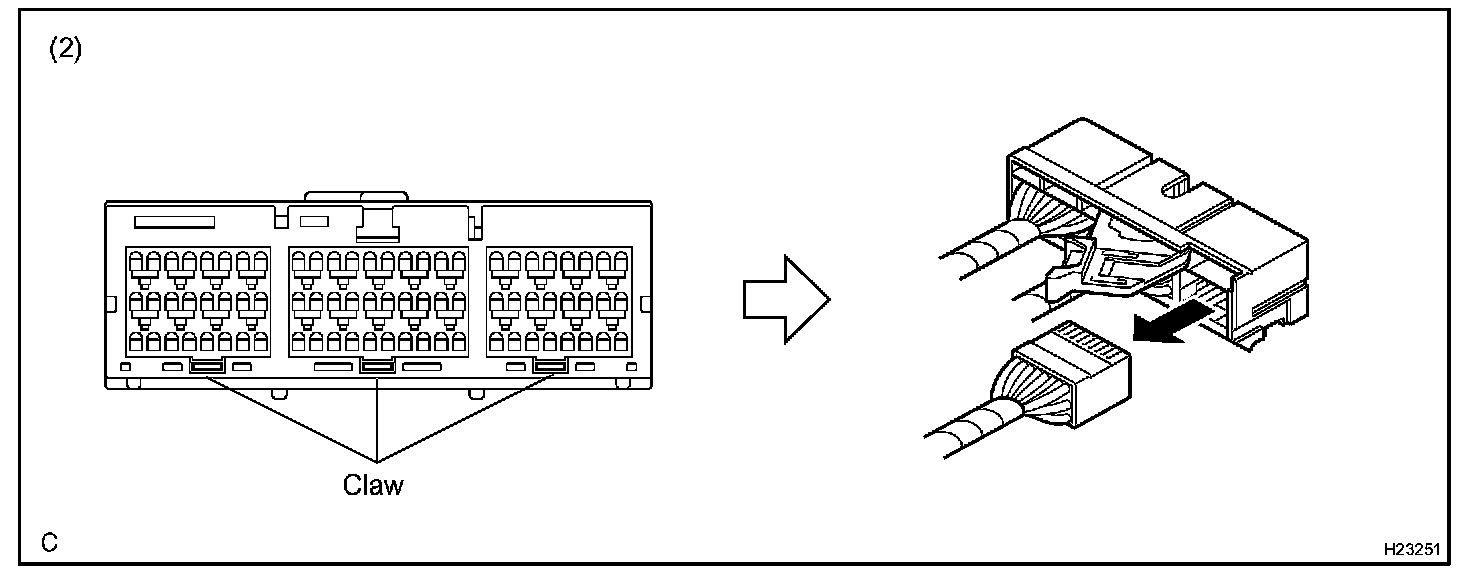

(2) Release the claw fitting and remove the holder.





(c) Install the holder.

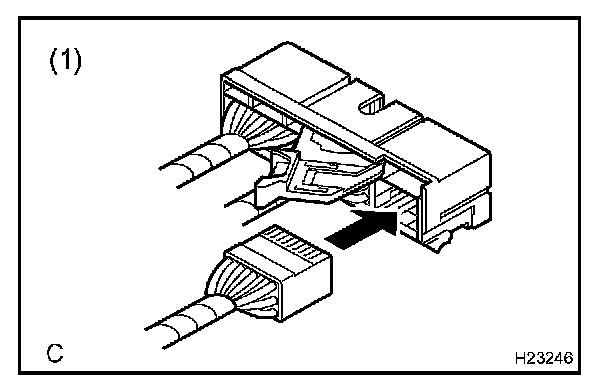

(1) Install the connector to the holder. When locking, a click sound should be heard.

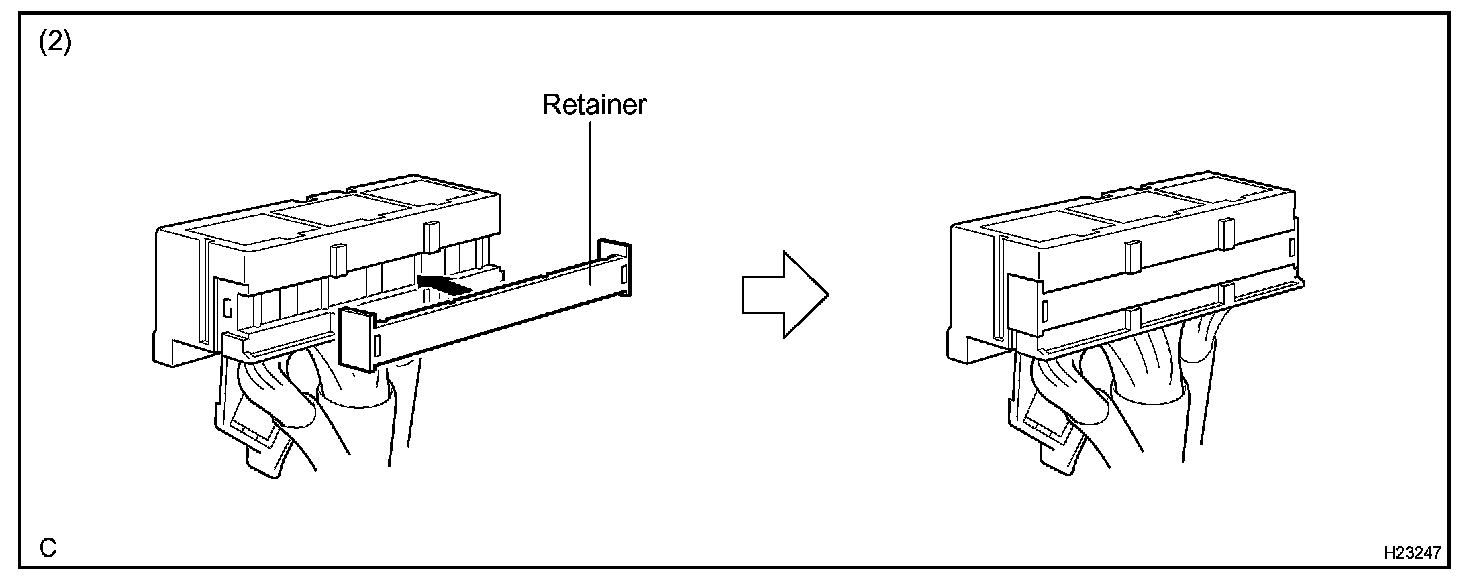

(2) Install the retainer.





CONNECTION OF CONNECTOR FOR AIRBAG SENSOR ASSEMBLY
(a) Firmly inert the holder (with connectors) until it cannot be pushed any further.

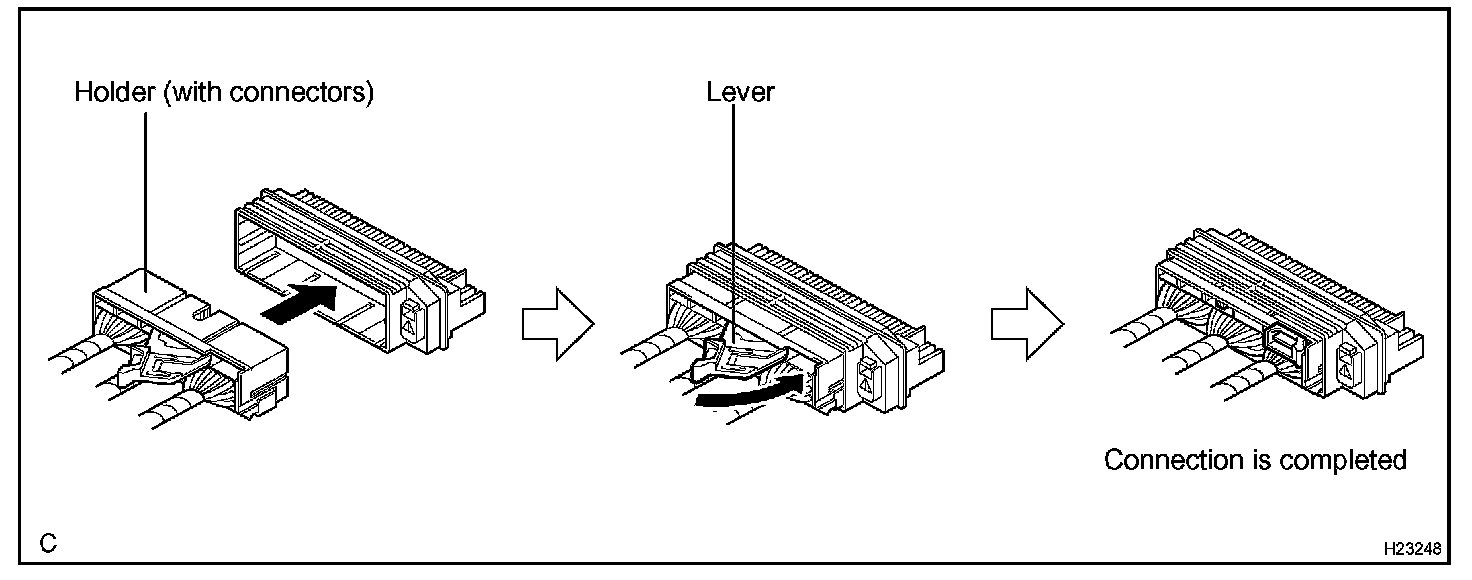

(b) Push the lever to connect the holder (with connectors). When locking, a click sound should be heard.

HINT: The holder slides when connected. Holding the holder when connecting may result in an insecure connection
