Engine - Updated Short Block Part Number

T-SB-0153-11

October 6, 2011

2AZ-FE Engine Block

Service Category
Engine/Hybrid System

Section
Engine Mechanical

Market
USA

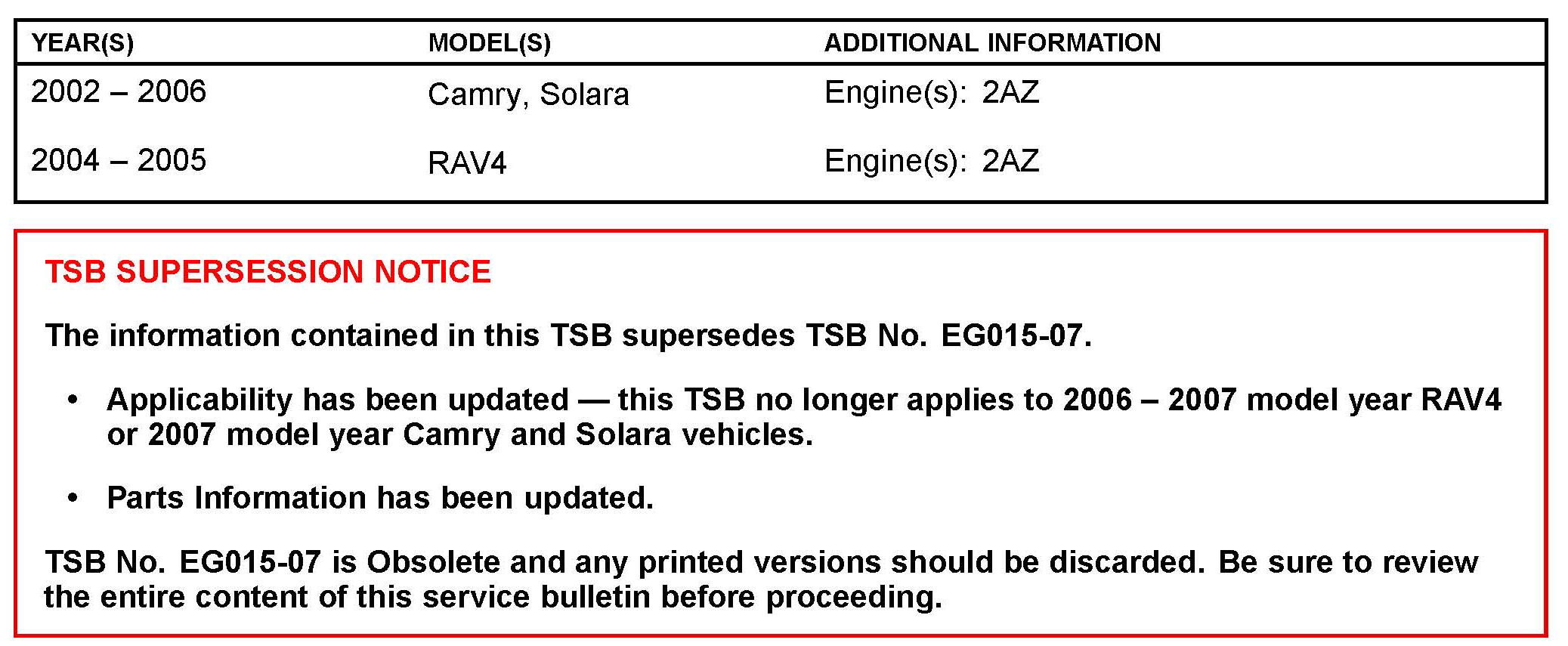

Applicability

Introduction

The purpose of this TSB is to provide updated short block part number information for certain vehicles equipped with the 2AZ-FE engine. Please use the information below when replacing the engine short block assembly.

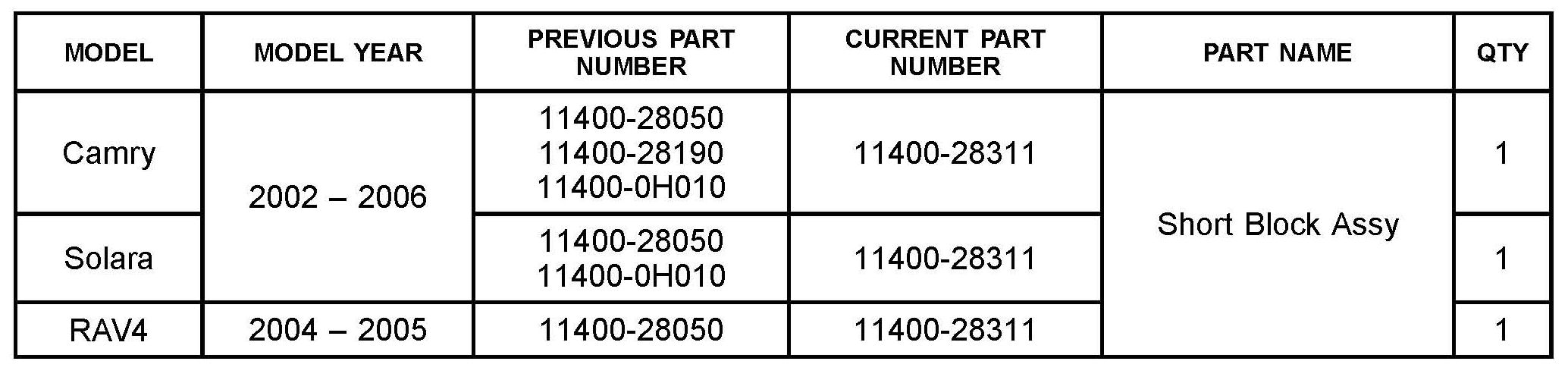

Parts Information

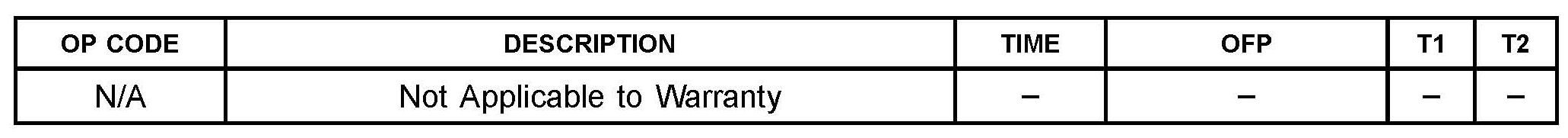

Warranty Information
