Back Door Power Window Limit Switch Circuit

CIRCUIT DESCRIPTION

This switch turns "OFF" the back door power window motor before the top dead center. ECU reads this "OFF" signal and close the window fully.

Wiring Diagram:

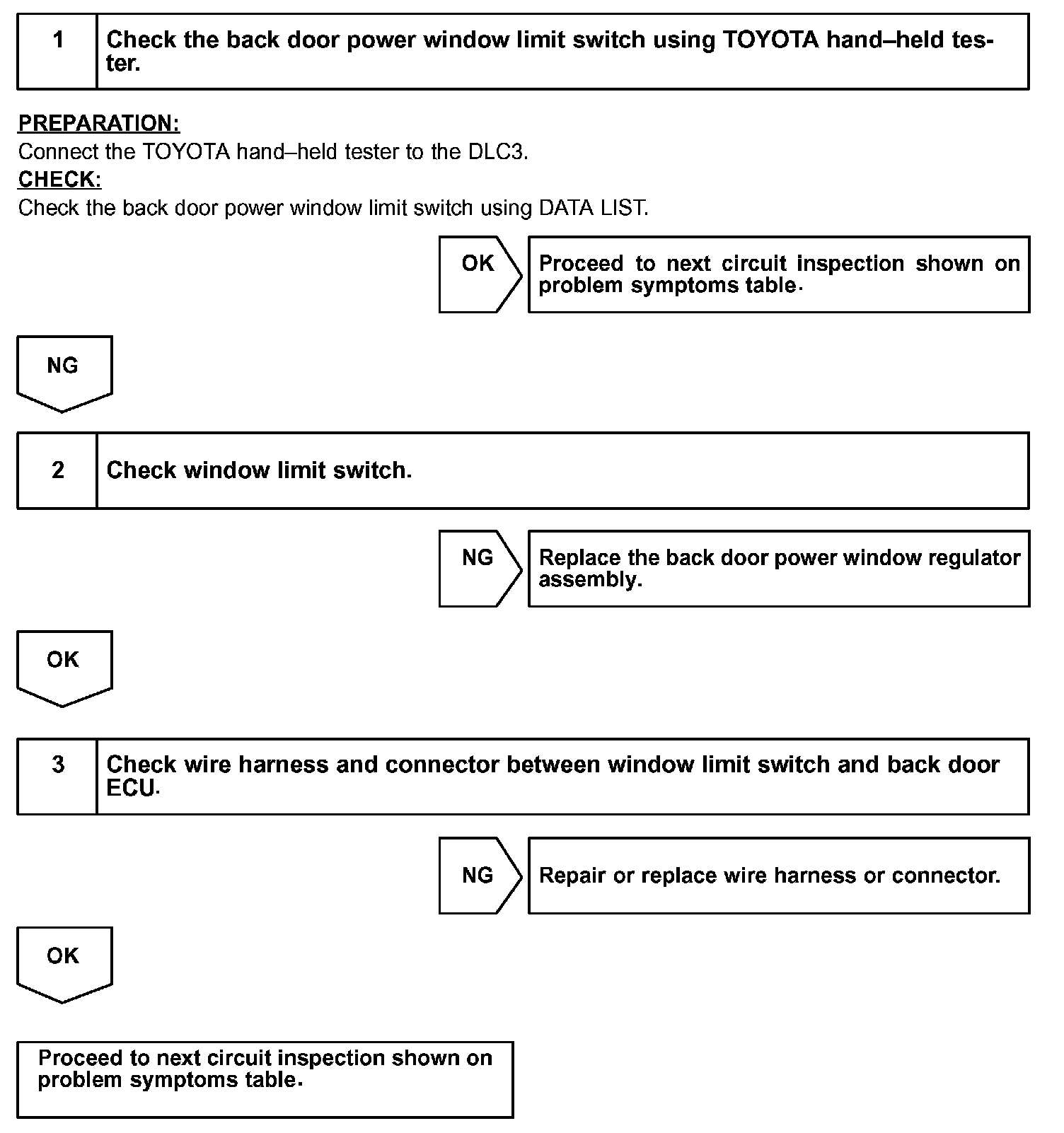

Step 1 - 3:

INSPECTION PROCEDURE

HINT: In case of using the TOYOTA hand-held tester, start the inspection from step 1 and in case of not using the TOYOTA hand-held tester, start from step 2.
