Navigation Module: Service and Repair

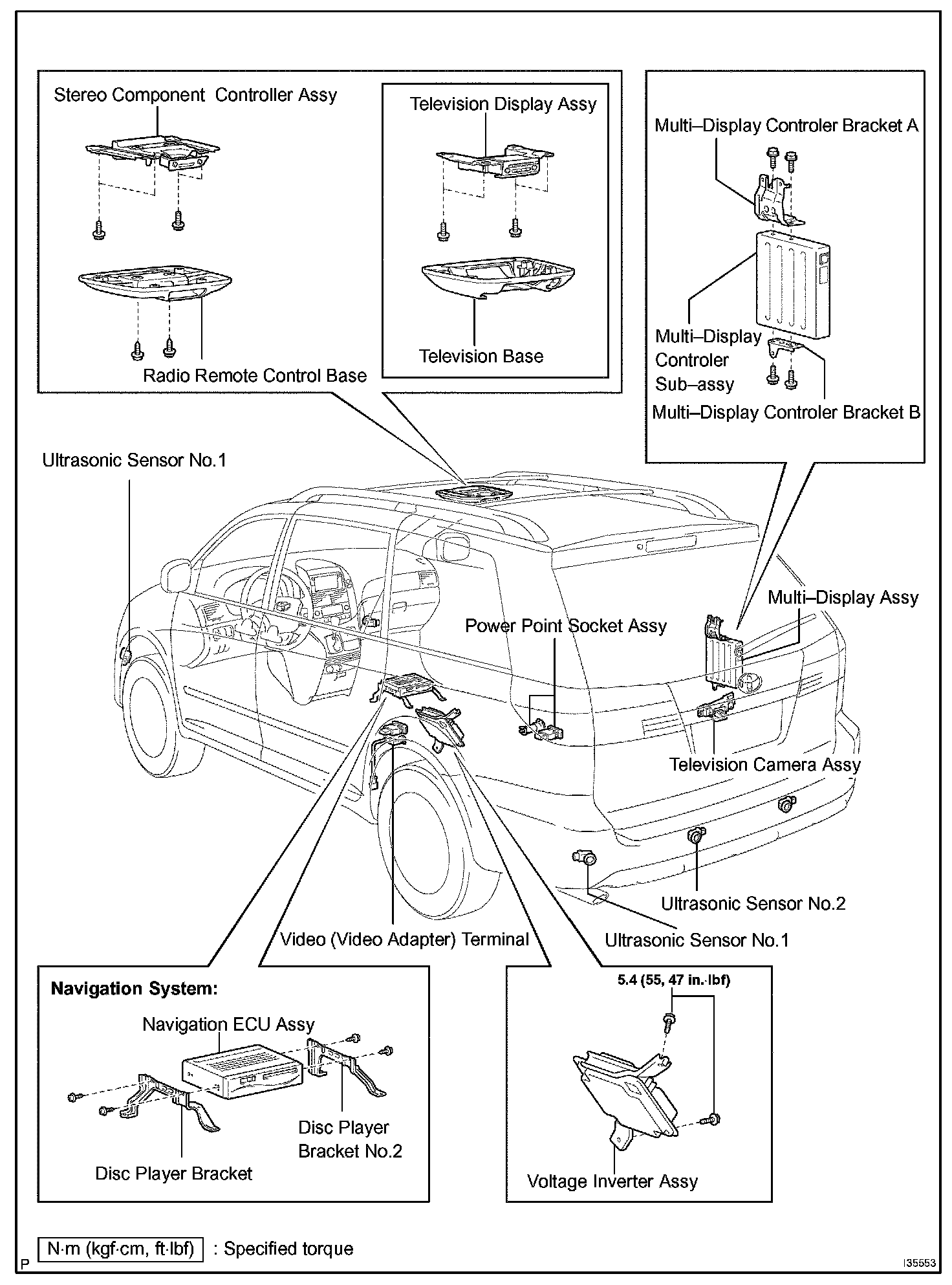

Audio & Visual System - Part 4:

NAVIGATION ECU ASSY

REPLACEMENT

1. REMOVE FRONT SEAT ASSY RH

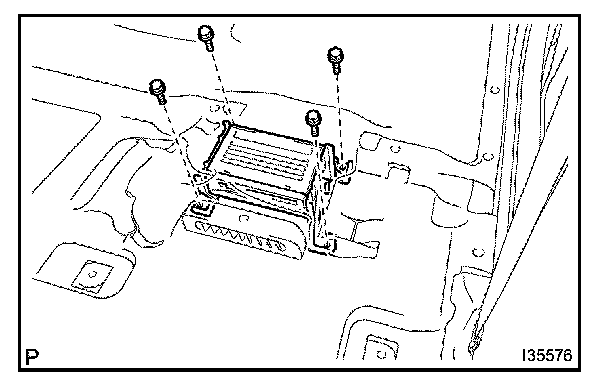

2. REMOVE NAVIGATION COMPUTER W/BRACKET
a. Disconnect the connector.
b. Remove the 4 bolts and the navigation computer W/ bracket.

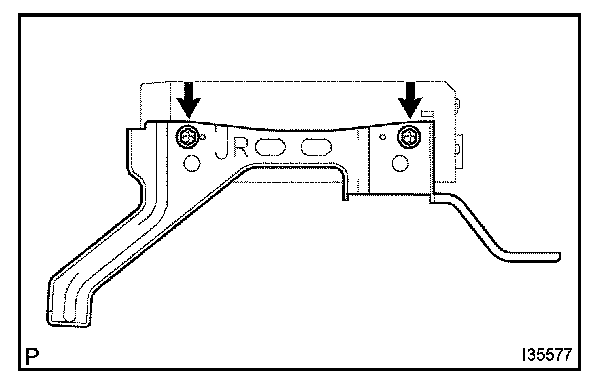

3. REMOVE DISC PLAYER BRACKET
a. Remove the 2 screws and the disc player bracket.

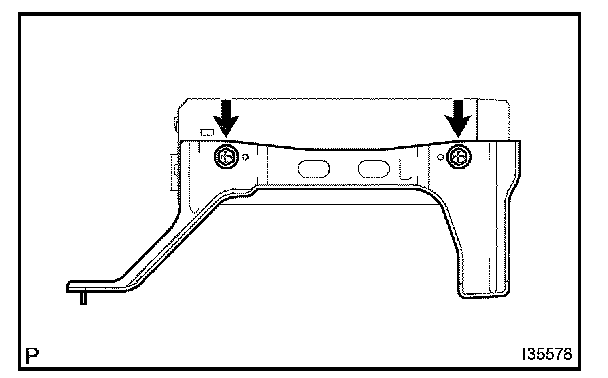

4. REMOVE DISC PLAYER BRACKET NO.2
a. Remove the 2 screws and the disc player bracket No.2.

5. REMOVE NAVIGATION ECU ASSY
