Cruise Main Indicator Light Circuit

CRUISE MAIN INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION

When the cruise control main switch is ON, CRUISE main indicator light and READY indicator light comes on.

This indicates the control condition (the front vehicle, vehicle-to-vehicle distance, and set vehicle speed) and fail-safe state through the multiplex communication system.

The master warning light, cruise main indicator light and vehicle-to-vehicle distance information come on as the alarm buzzer sounds.

HINT: If the front vehicle in the same lane significantly decrease the vehicle speed or another vehicle cuts in front of your vehicle, adequate deceleration cannot be applied and the vehicle-to-vehicle distance will shorten.

At this time, the system sounds the buzzer and the master warning light blinks to warn the driver.

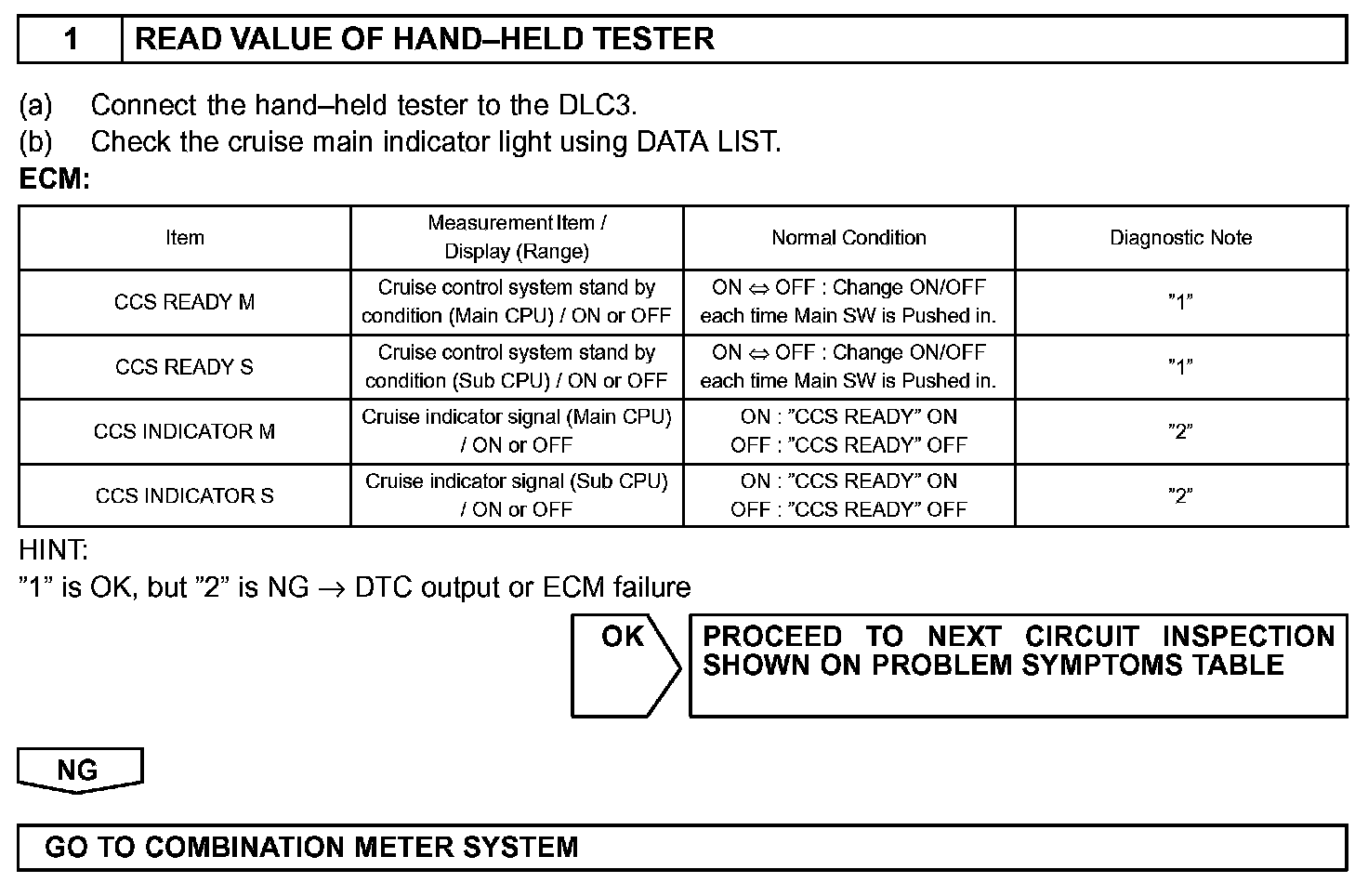

Step 1:

INSPECTION PROCEDURE
