Fuse: Application and ID

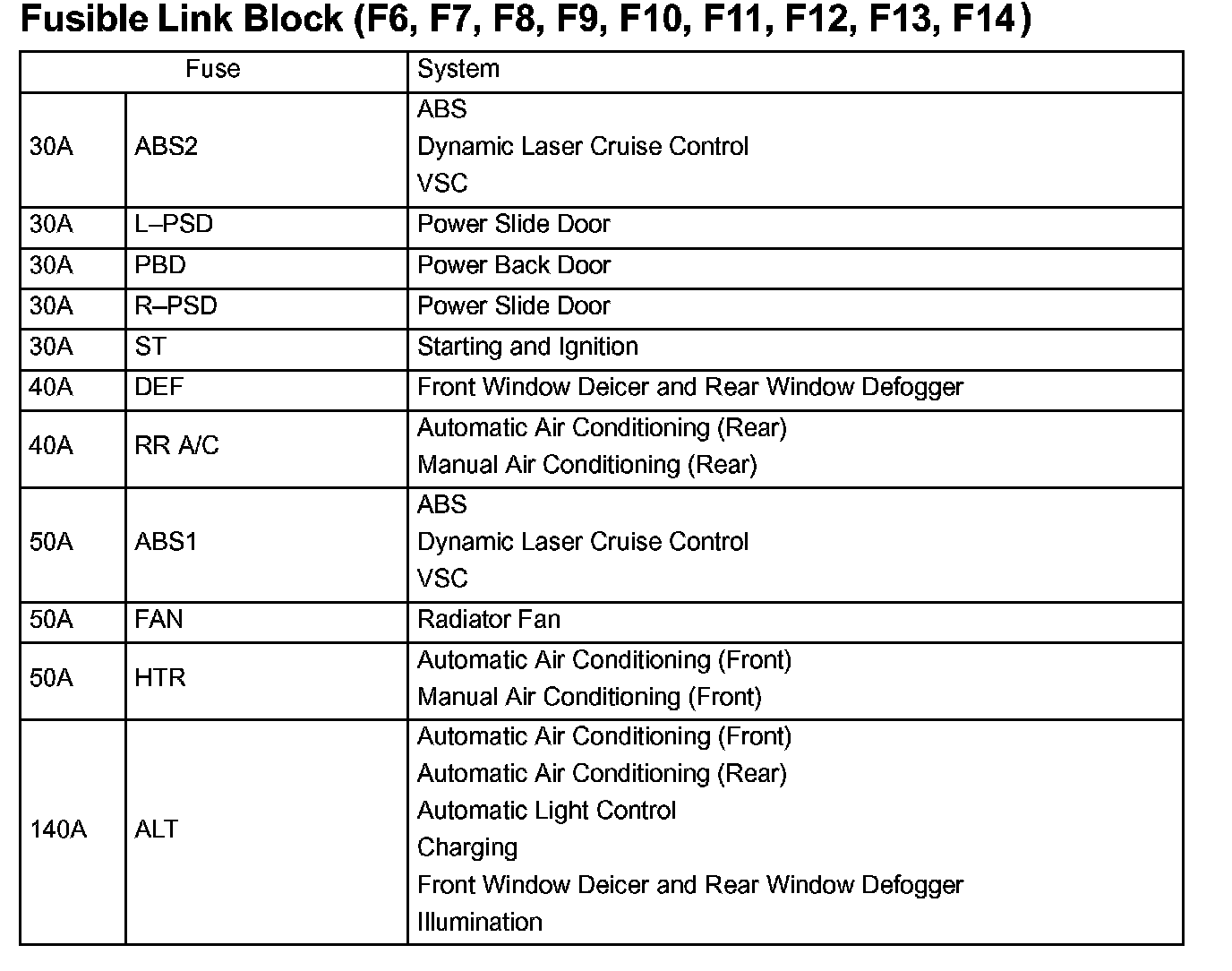

Fusible Link Block (F6, F7, F8, F9, F10, F11, F12, F13, F14) Part 1:




Fusible Link Block (F6, F7, F8, F9, F10, F11, F12, F13, F14) Part 2:

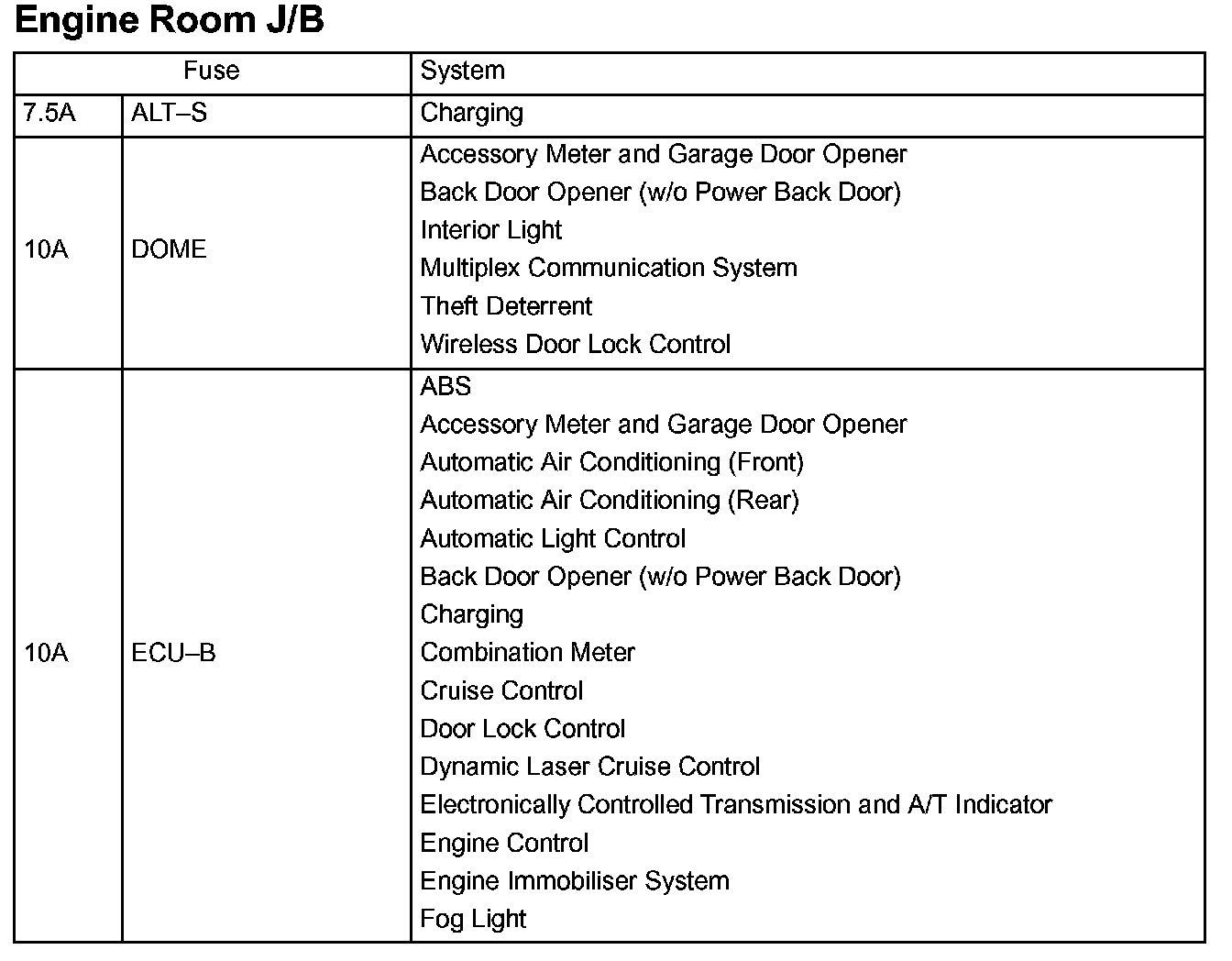

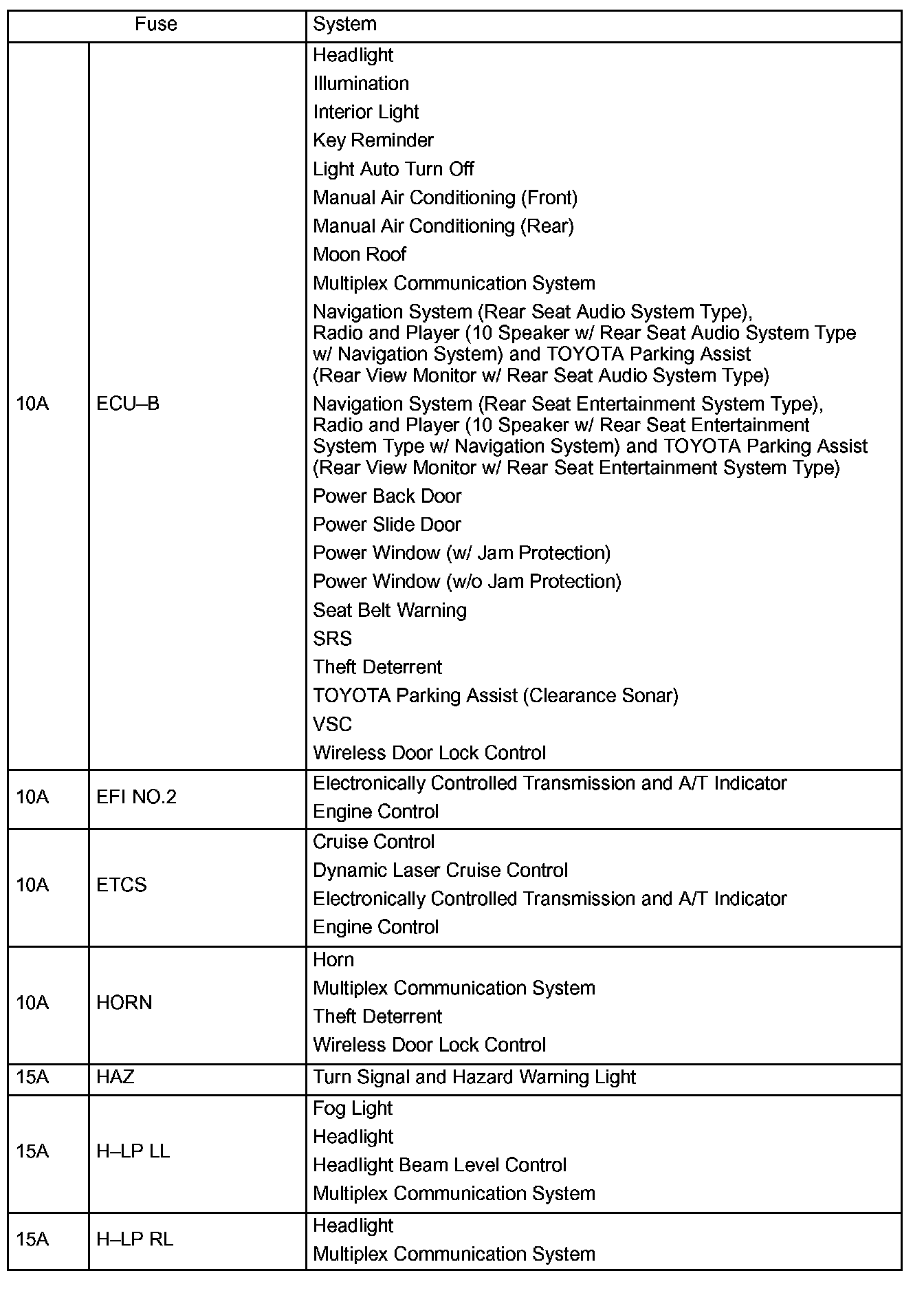

Engine Room J/B Part 1:

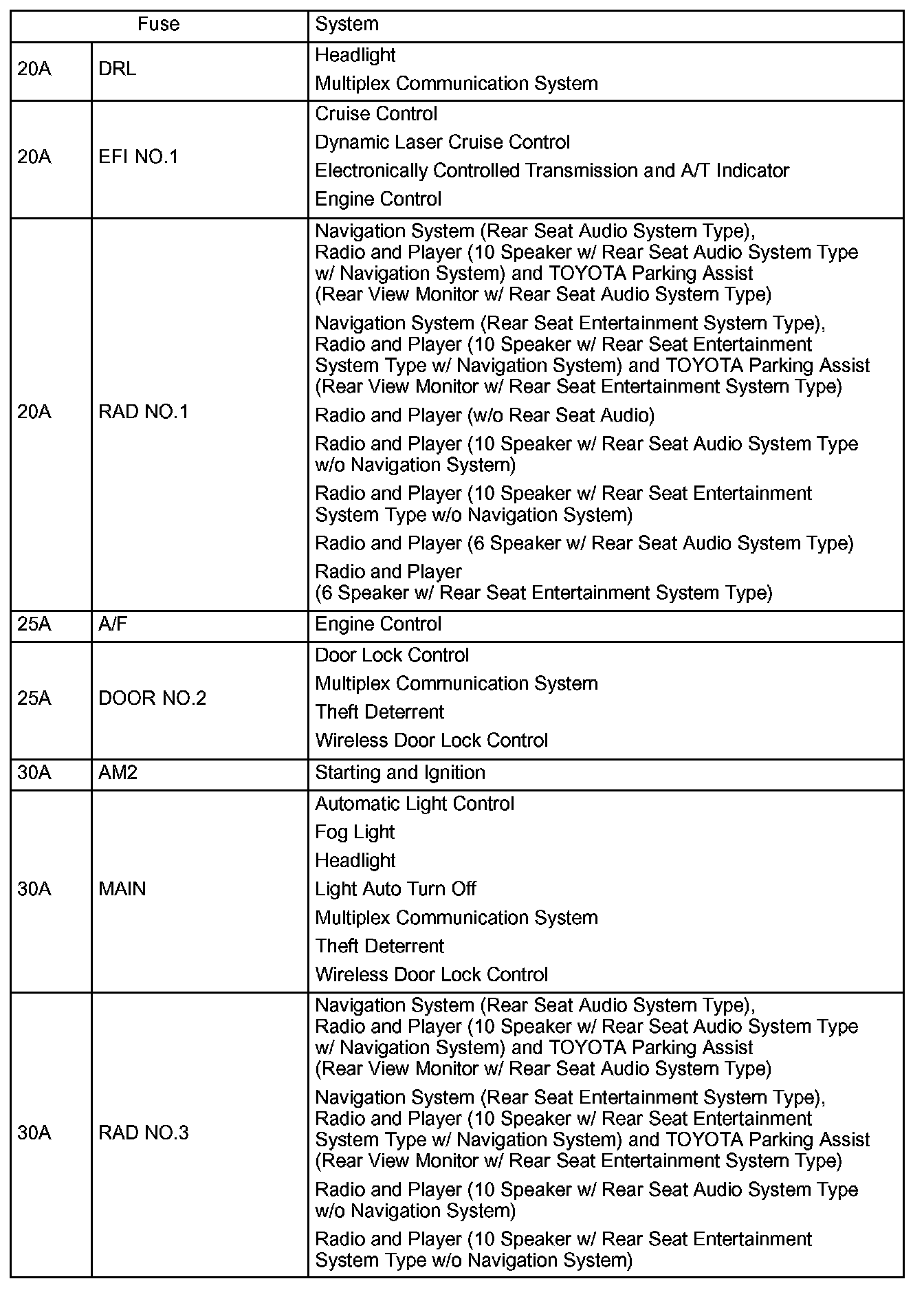

Engine Room J/B Part 2:

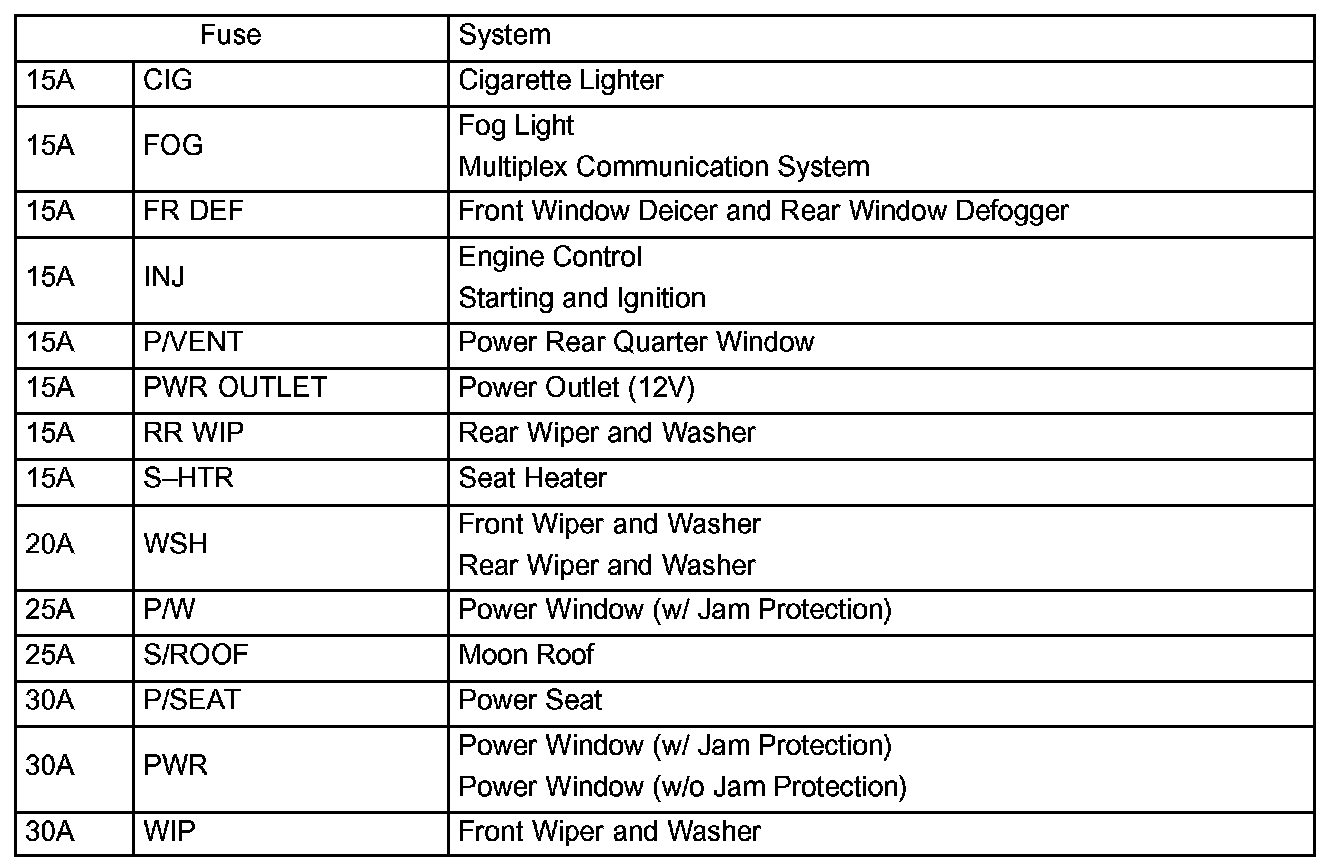

Engine Room J/B Part 3:

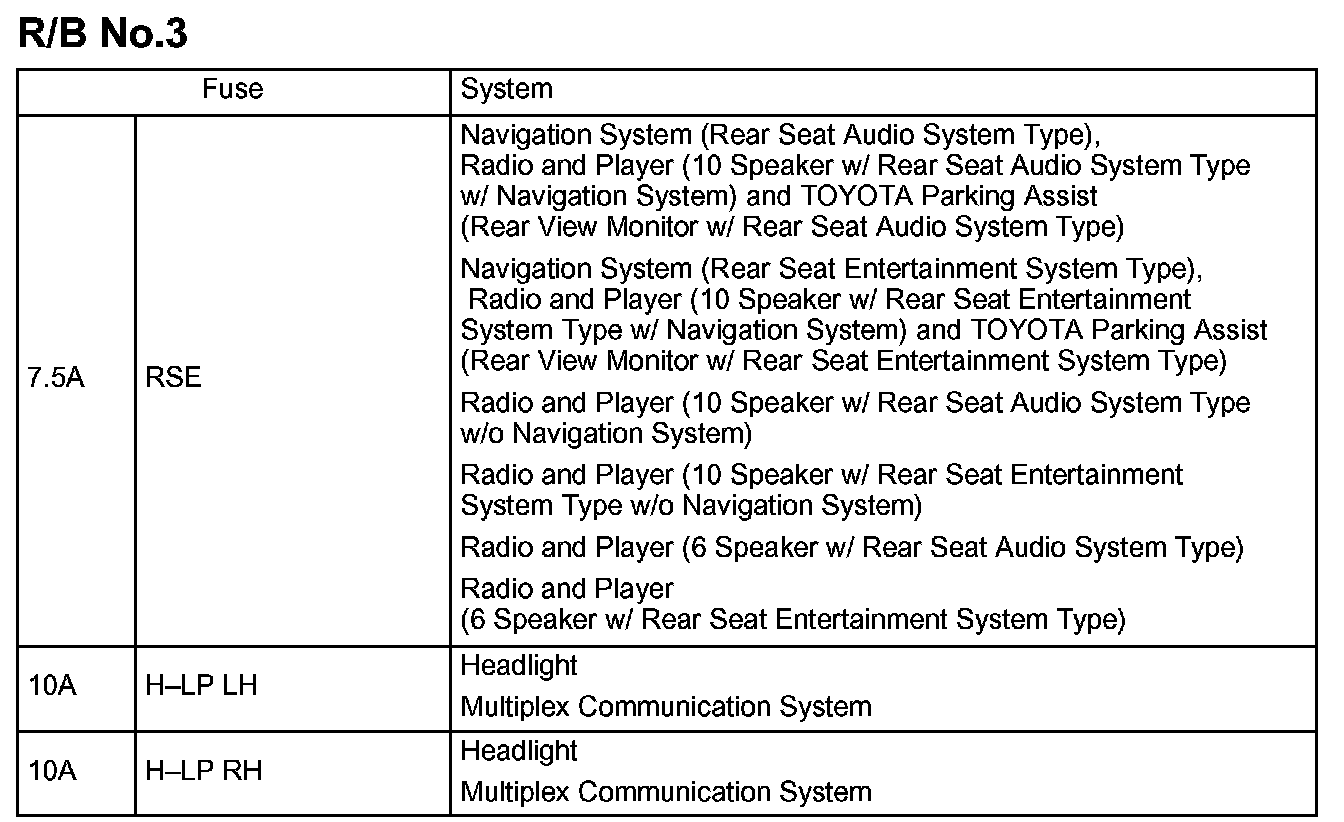

R/B No.3:




Engine Room Fuse Details



Fuse Box:

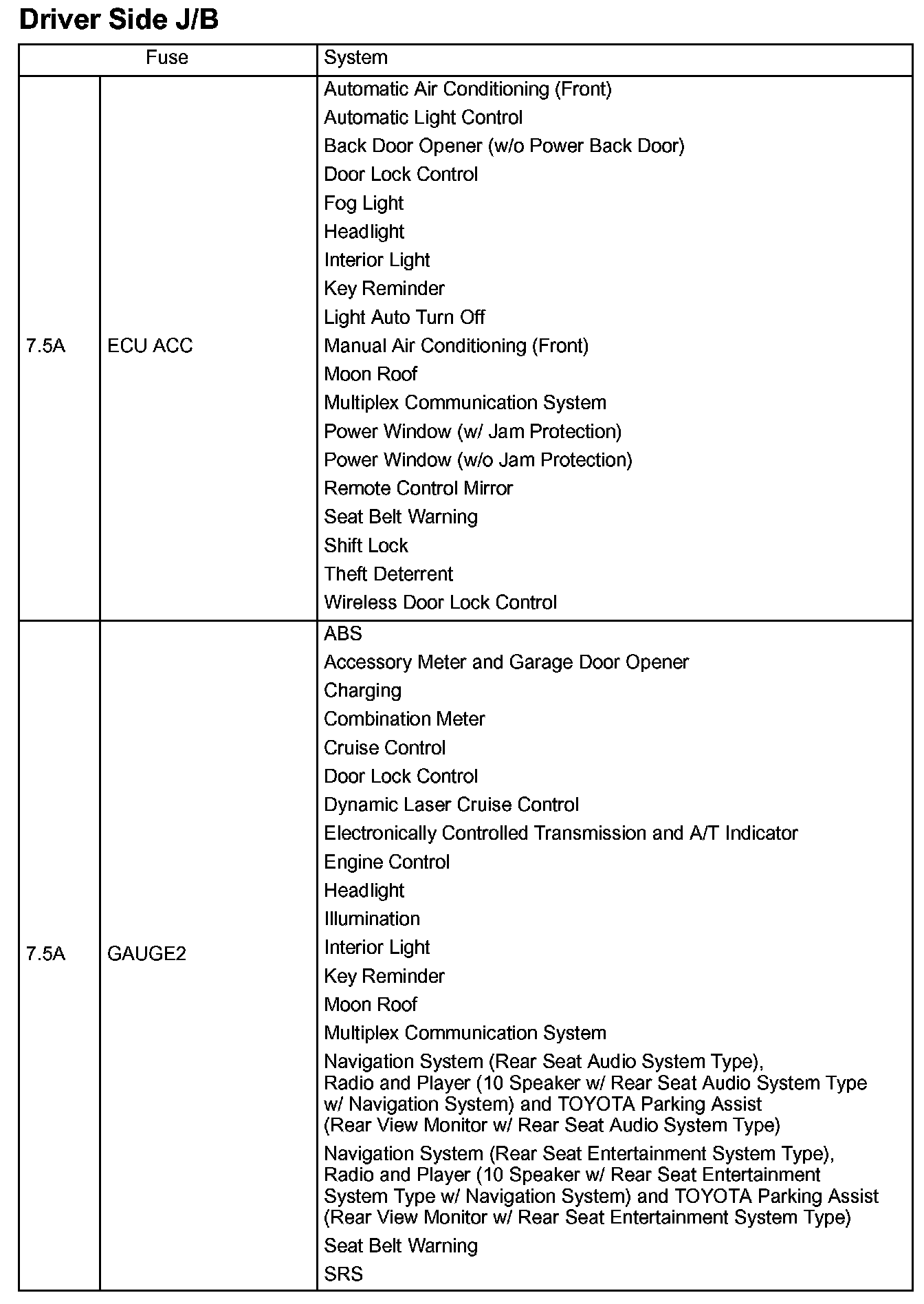

Driver Side J/B Part 1:

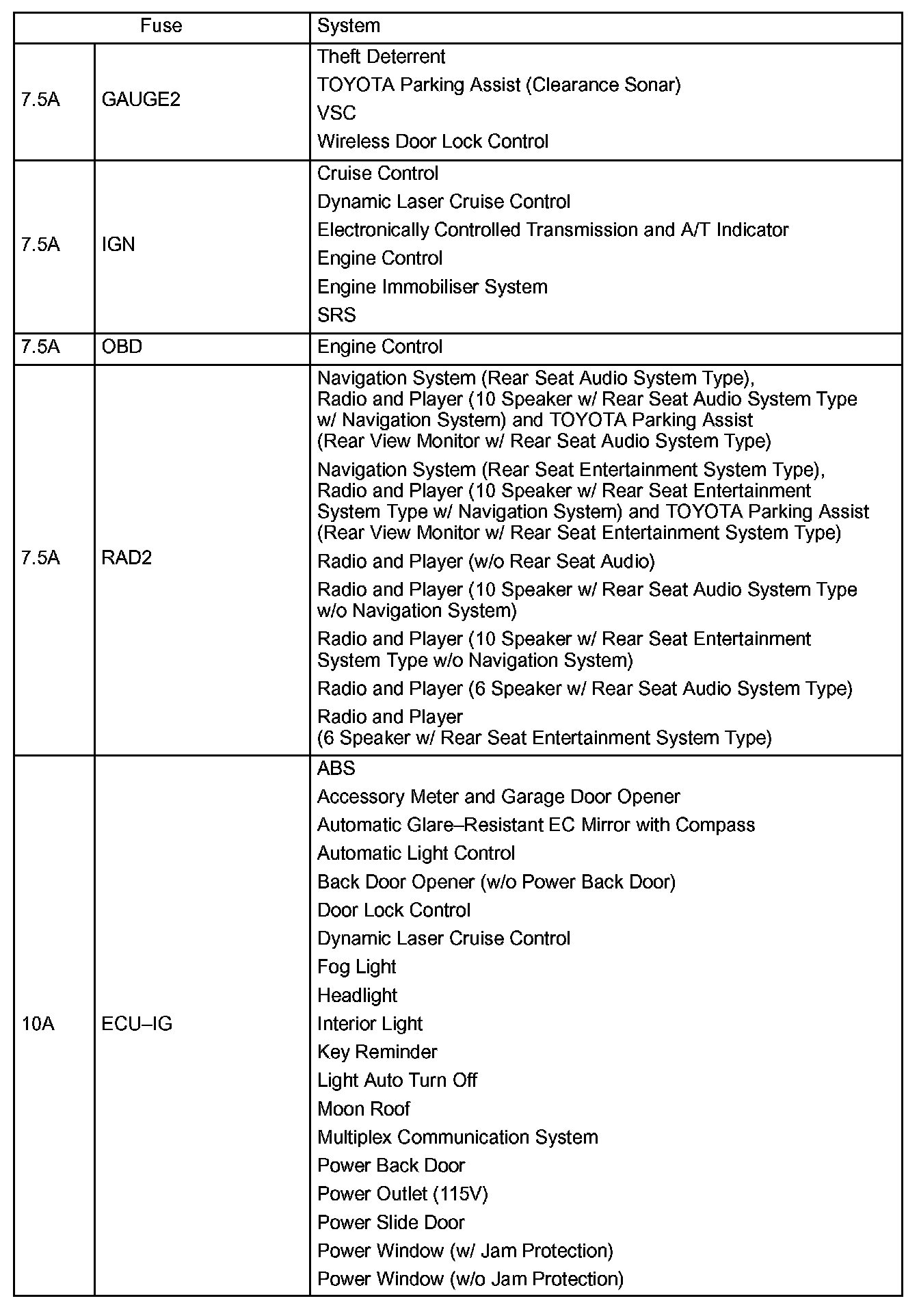

Driver Side J/B Part 2:




Driver Side J/B Part 3:

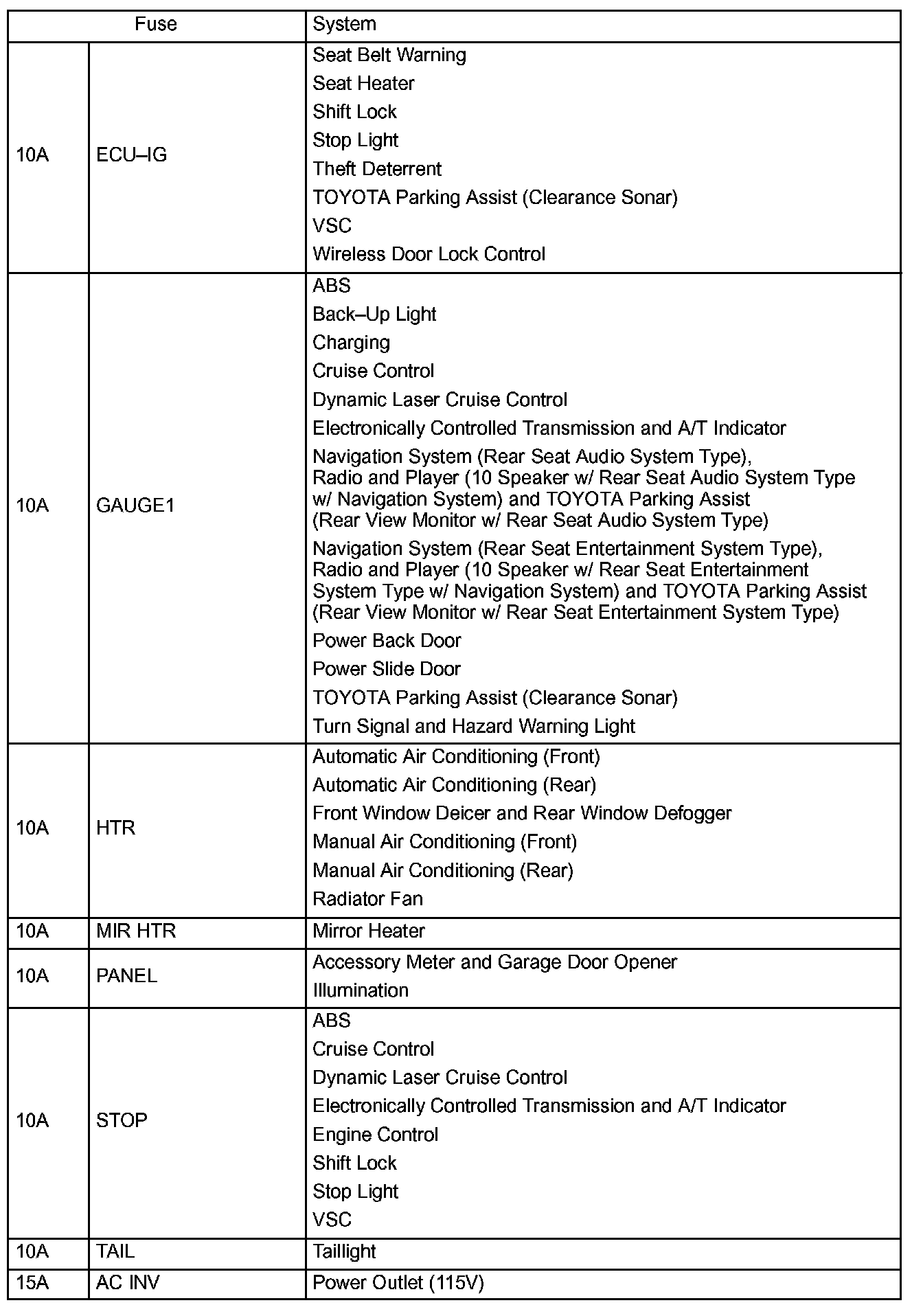

Driver Side J/B Part 4:




Interior Panel Fuse Details
