Knock Sensor: Testing and Inspection

INSPECTION

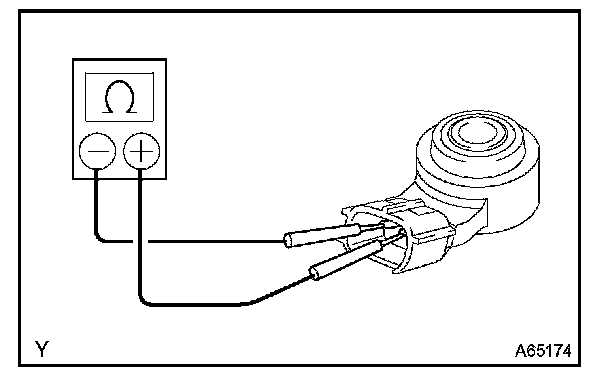

INSPECT KNOCK SENSOR

Using an ohmmeter, measure the resistance between the terminals.

Standard: 120 to 280 kOhms at 20 °C (68 °F)

If the result is not as specified, replace the sensor.
