System Specifications

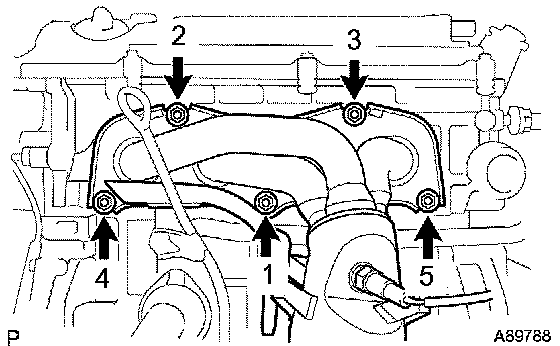

Install a new gasket and the exhaust manifold converter with the 5 nuts. Uniformly tighten the 5 nuts in the sequence shown in the illustration.
Torque 37 Nm (378 kgf-cm, 27 ft. lbs.)

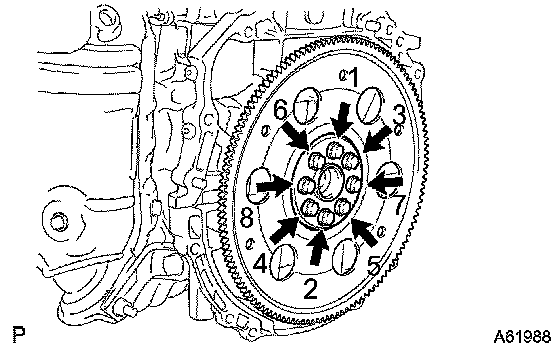

Install the front spacer, drive plate and rear spacer with the 8 bolts. Uniformly tighten the 8 bolts in the sequence shown in the illustration.
Torque 98 Nm (1,000 kgf-cm, 72 ft. lbs.)

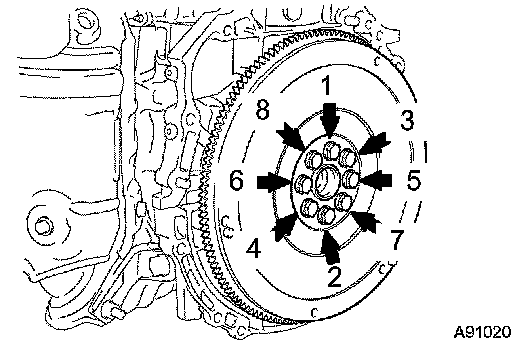

Install the flywheel with the 8 bolts. Uniformly tighten the 8 bolts in the sequence shown in the illustration.
Torque 130 Nm (1,330 kgf-cm, 96 ft. lbs.)
