TIMING BELT TENSIONERINSTALL V-RIBBED BELT TENSIONER ASSY
Install the tensioner with the bolt and nut.
Torque 59.5 Nm (607 kgf-cm, 44 ft. lbs.)
TIMING COVER

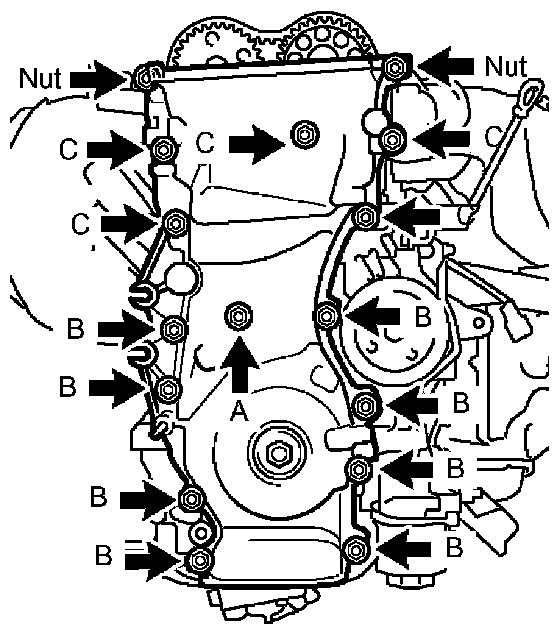

Install the timing chain cover with the 14 bolts and 2 nuts.
Torque
9.0 Nm (92 kgf-cm, 80 inch lbs.) for bolt A
21 Nm (214 kgf-cm, 15 ft. lbs.) for bolt B
43 Nm (438 kgf-cm, 32 ft. lbs.) for bolt C
9.0 Nm (92 kgf-cm, 80 inch lbs.) for nut
CRANKSHAFT PULLEY
Using SST, tighten the bolt.
SST 09960-10010 (09962-01000, 09963-01000)
Torque 170 Nm (1,733 kgf-cm, 125 ft. lbs.)
