Power Window Control System (Coupe)

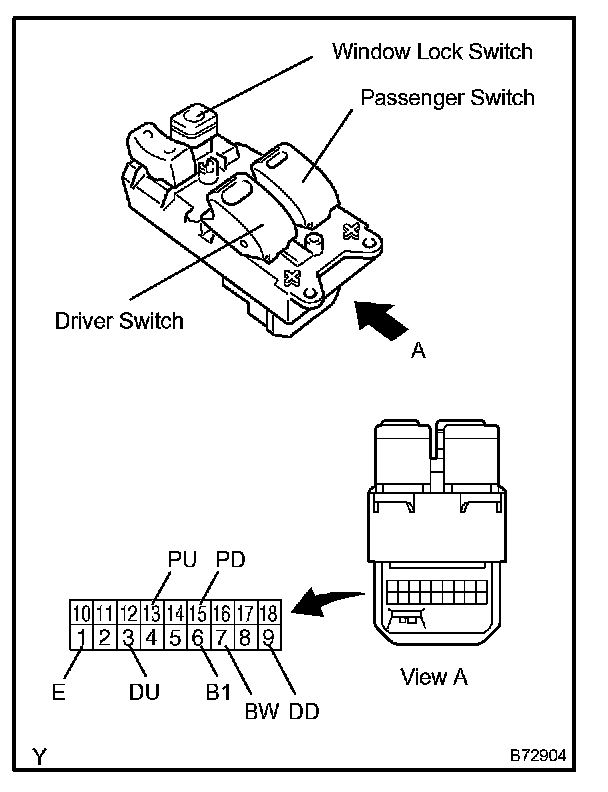

INSPECTIONINSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY a.
Remove the master switch.
b.

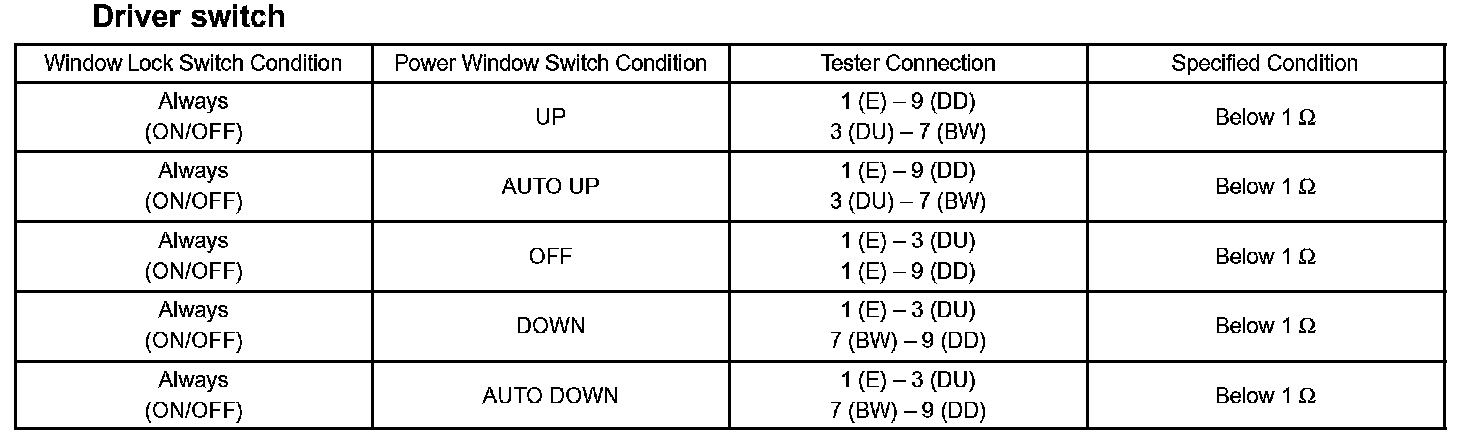

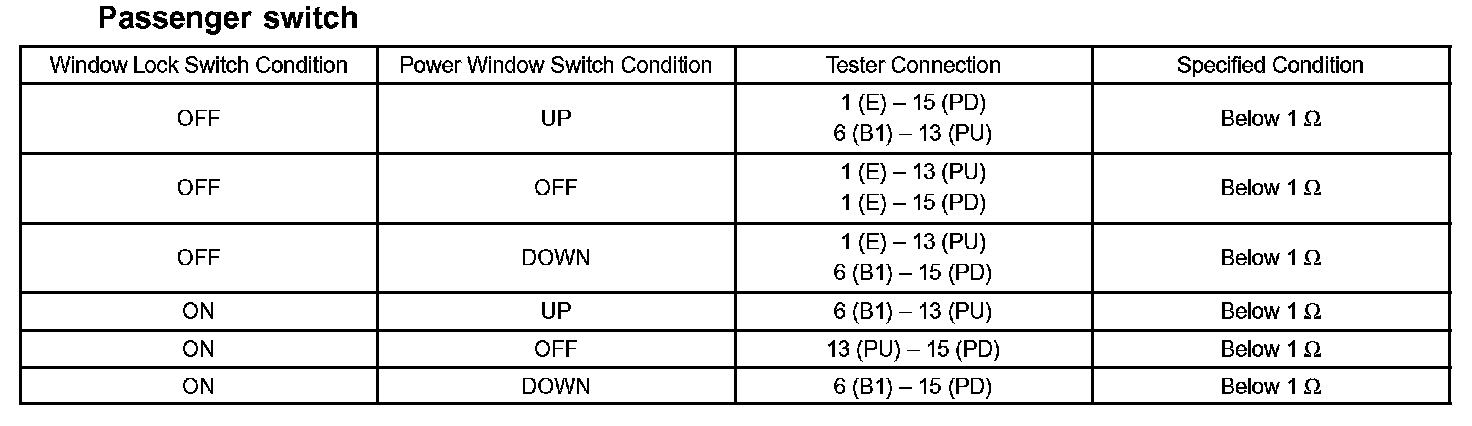

Measure the resistance of the switch when the switch is operated.
Standard: c.

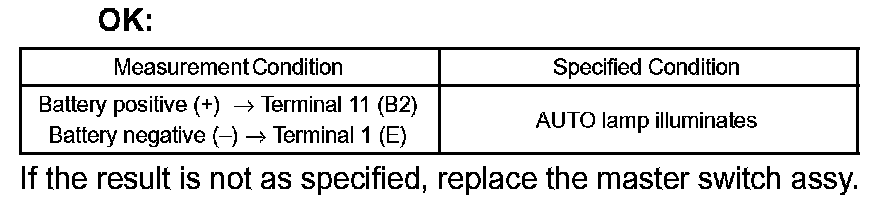

Check the master switch AUTO lamp.

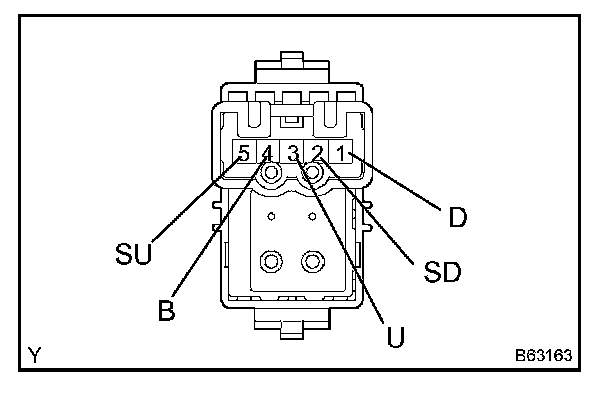

INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY a.
Remove the power window regulator switch.
b.

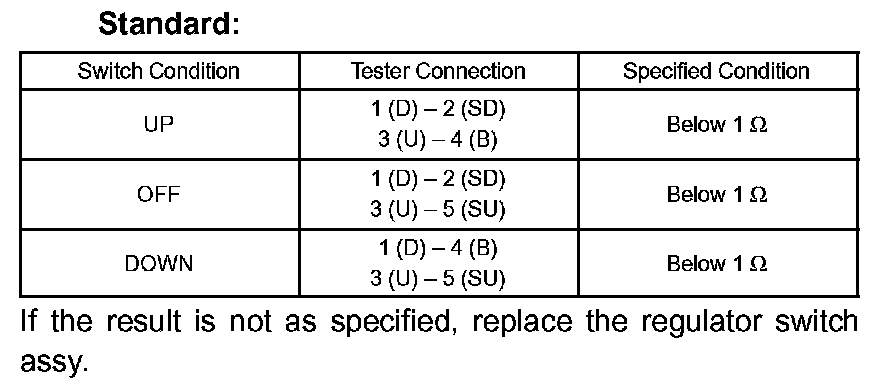

Measure the resistance of the switch when the switch is operated.
Standard:
