Crankshaft Position Sensor: Service and Repair
REPLACEMENT 1.
REMOVE ENGINE UNDER COVER
2.
REMOVE

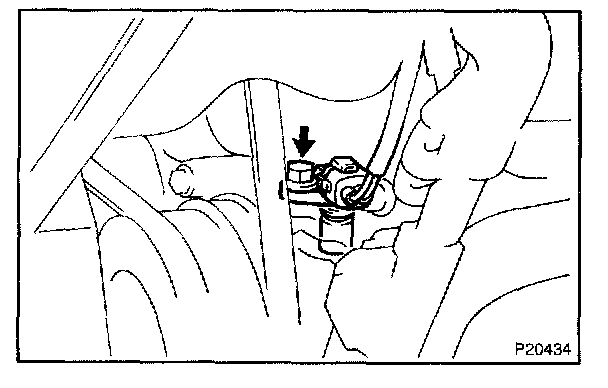

CRANKSHAFT POSITION SENSOR a.
Disconnect the sensor connector.
b.
Remove the bolt and sensor.
Torque:
7.8 N.m (80 kgf.cm, 69 in.lbf) 3.
REINSTALL NEW
CRANKSHAFT POSITION SENSOR a.
Install the sensor with the bolt.
b.
Connect the sensor connector.
4.
REINSTALL ENGINE UNDER COVER
