Ignition Coil: Service and Repair

Ignition Coil:

REPLACEMENT

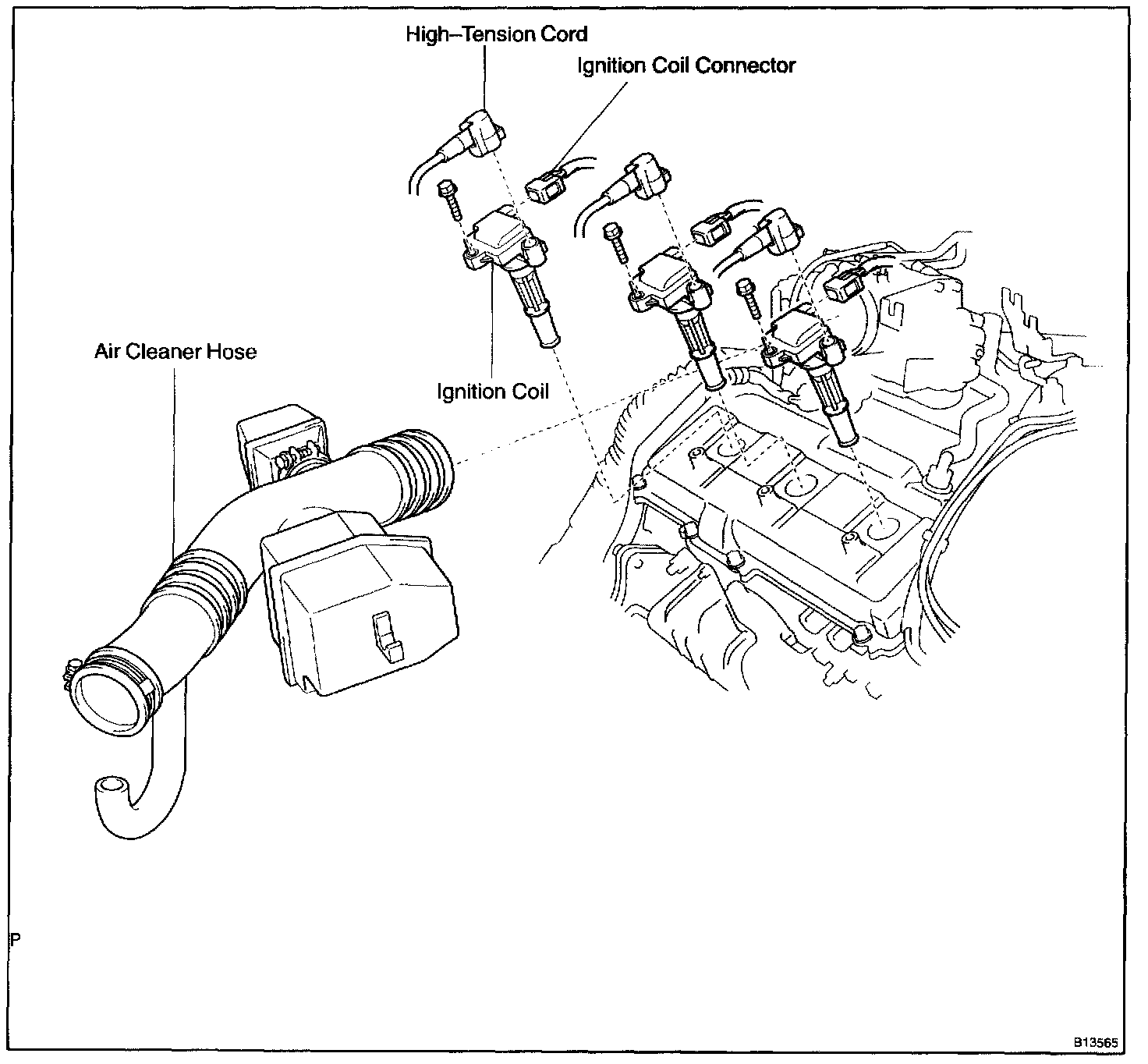

1. REMOVE AIR CLEANER HOSE
2. DISCONNECT HIGH-TENSION CORDS FROM IGNITION COILS

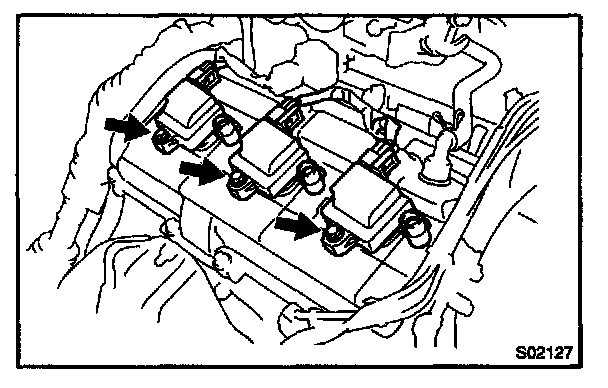

3. REMOVE IGNITION COILS




a. Disconnect the connector from the ignition coil.
b. Remove the bolt and ignition coil from the LH cylinder head.

4. REINSTALL NEW IGNITION COILS
a. Connect a new ignition coil to the spark plug, and attach the ignition coil to the cylinder head cover.
b. Install the ignition coil with the bolt.

Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

5. RECONNECT HIGH-TENSION CORDS TO IGNITION COILS
6. REINSTALL AIR CLEANER HOSE
