Fuse Block: Locations

Driver Side J/B And Integration Relay - Lower Finish Panel:

Driver Side J/B and Integration Relay - Lower Finish Panel:

Driver Side J/B And Integration Relay - Lower Finish Panel:

Driver Side J/B and Integration Relay - Lower Finish Panel:

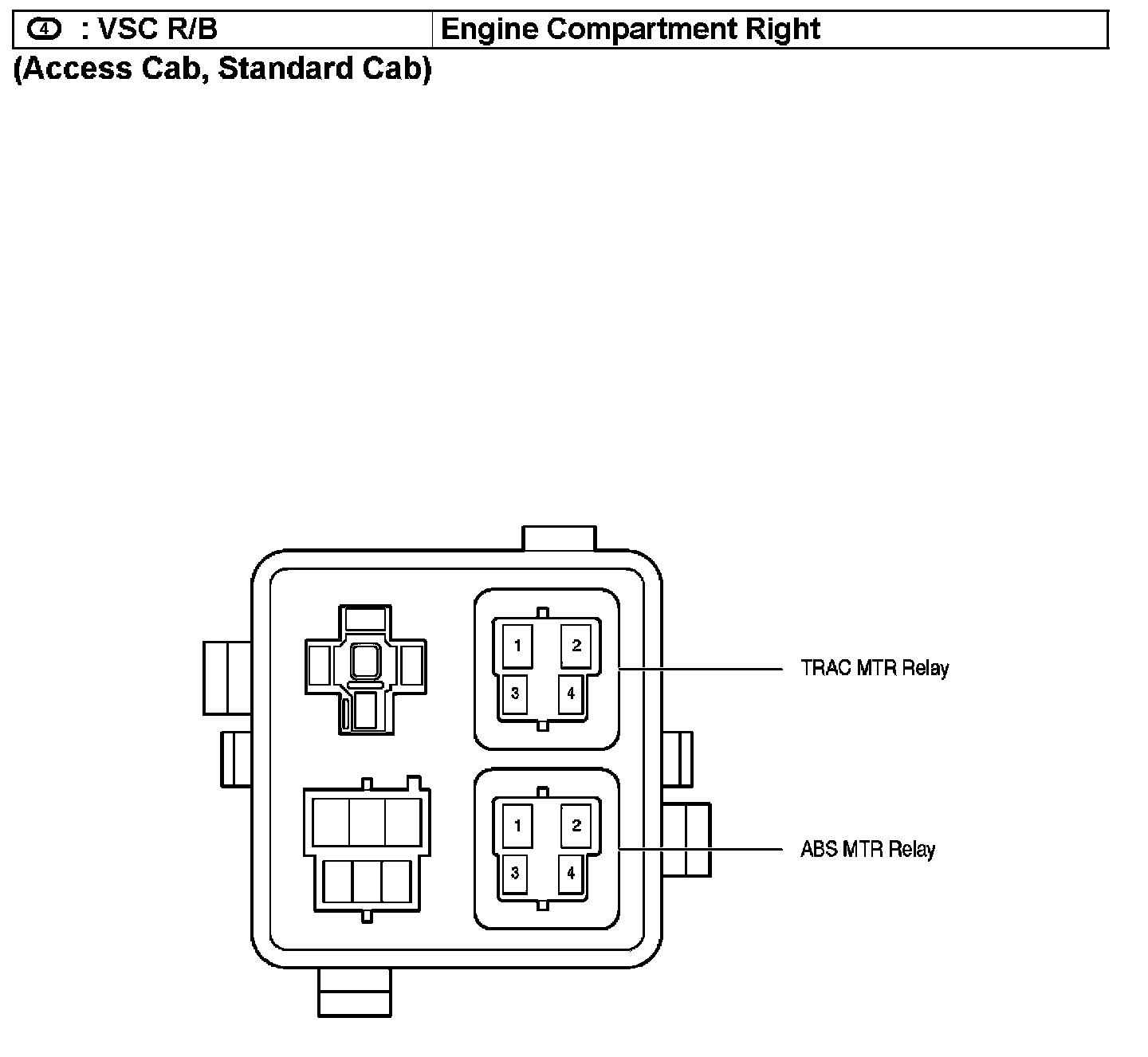

VSC R/B - Engine Compartment Right:

Access Cab & Standard Cab Details

Engine Room R/B No.2 - Engine Compartment Left:

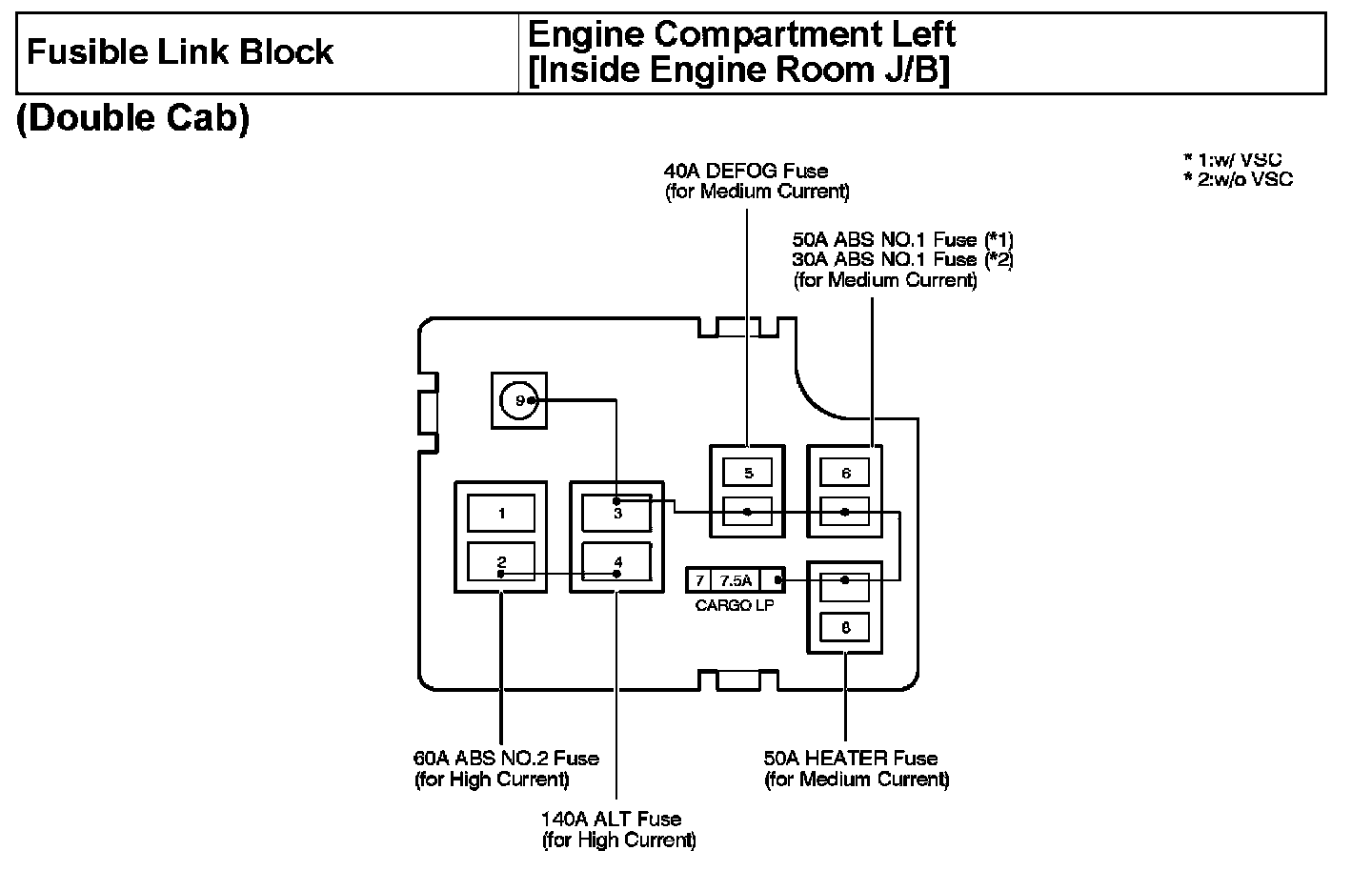

Fusible Link Block - Engine Compartment Left:

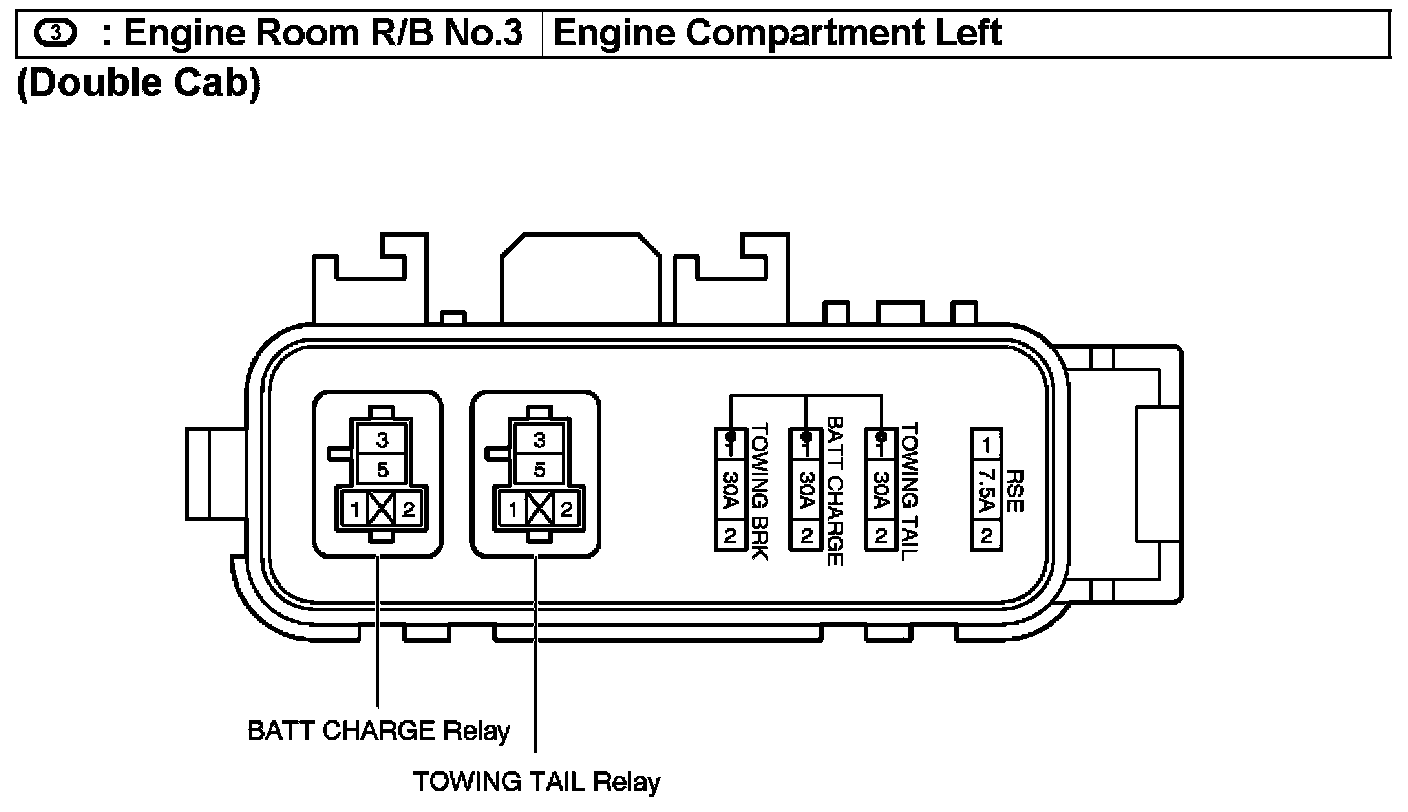

Engine Room R/B No.3 - Engine Compartment Left:

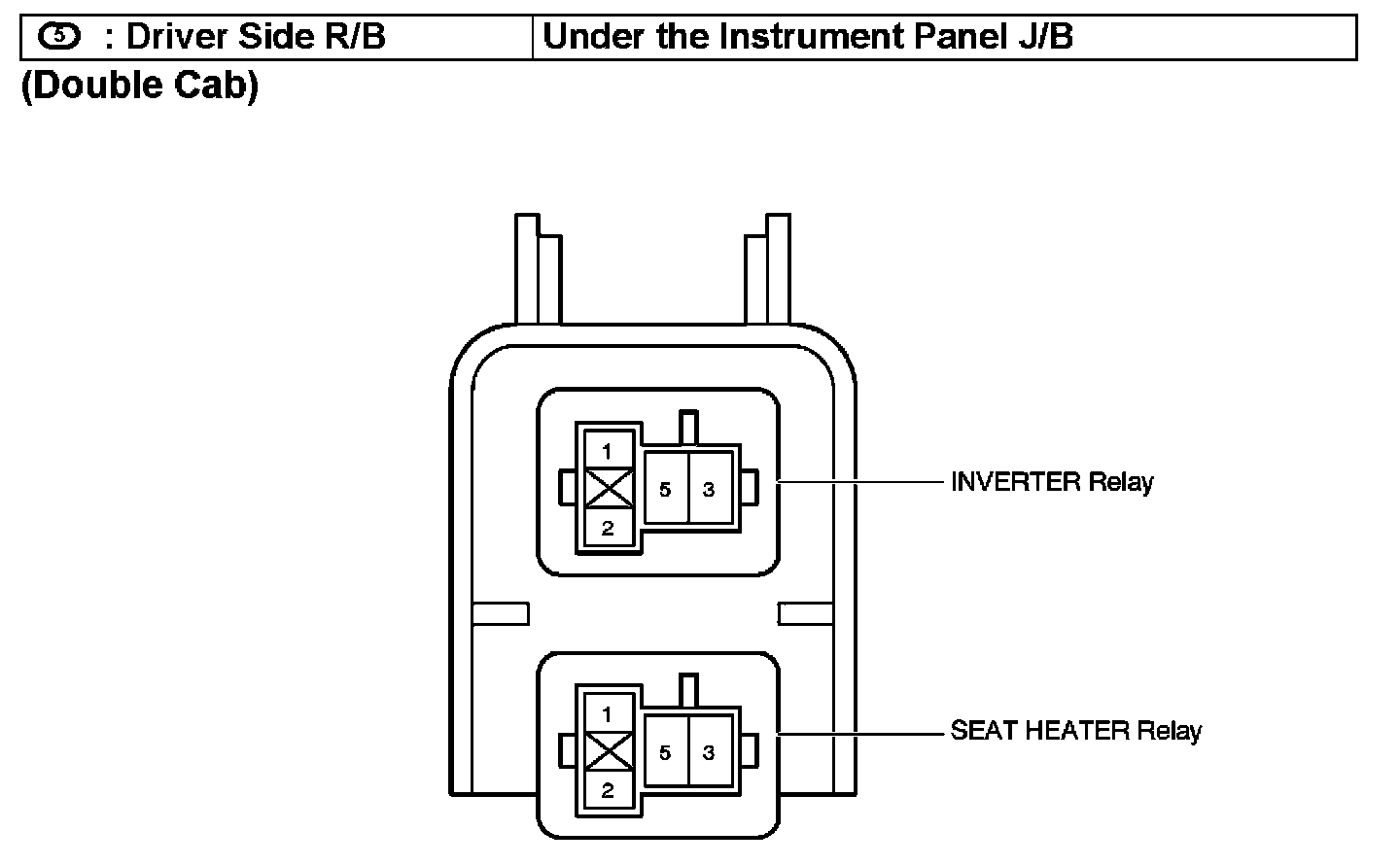

Driver Side R/B - Under the Instrument Panel J/B:

Engine Room J/B - Engine Compartment Left:

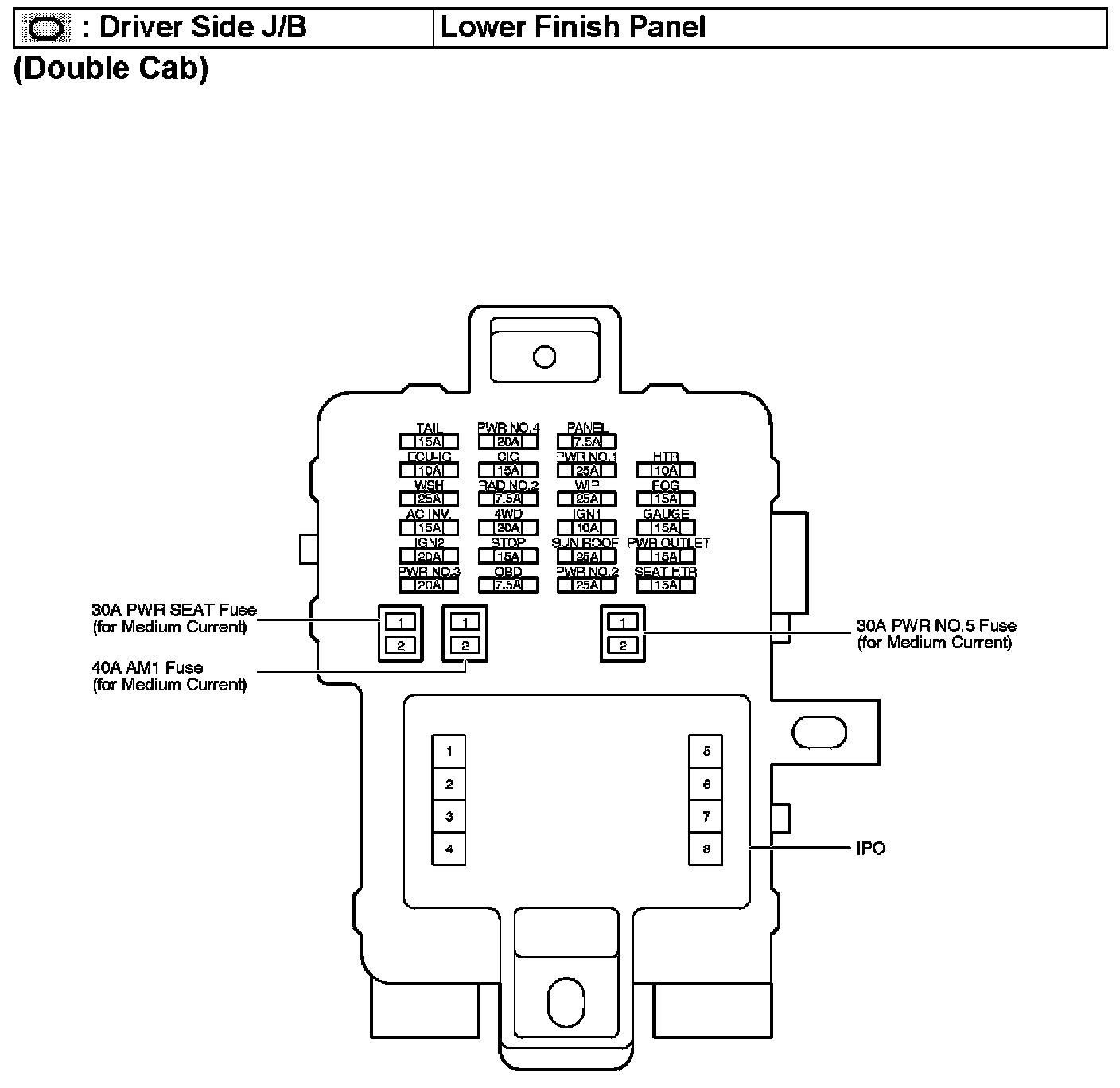

Driver Side J/B - Lower Finish Panel:

Driver Side J/B - Lower Finish Panel:

Double Cab Details

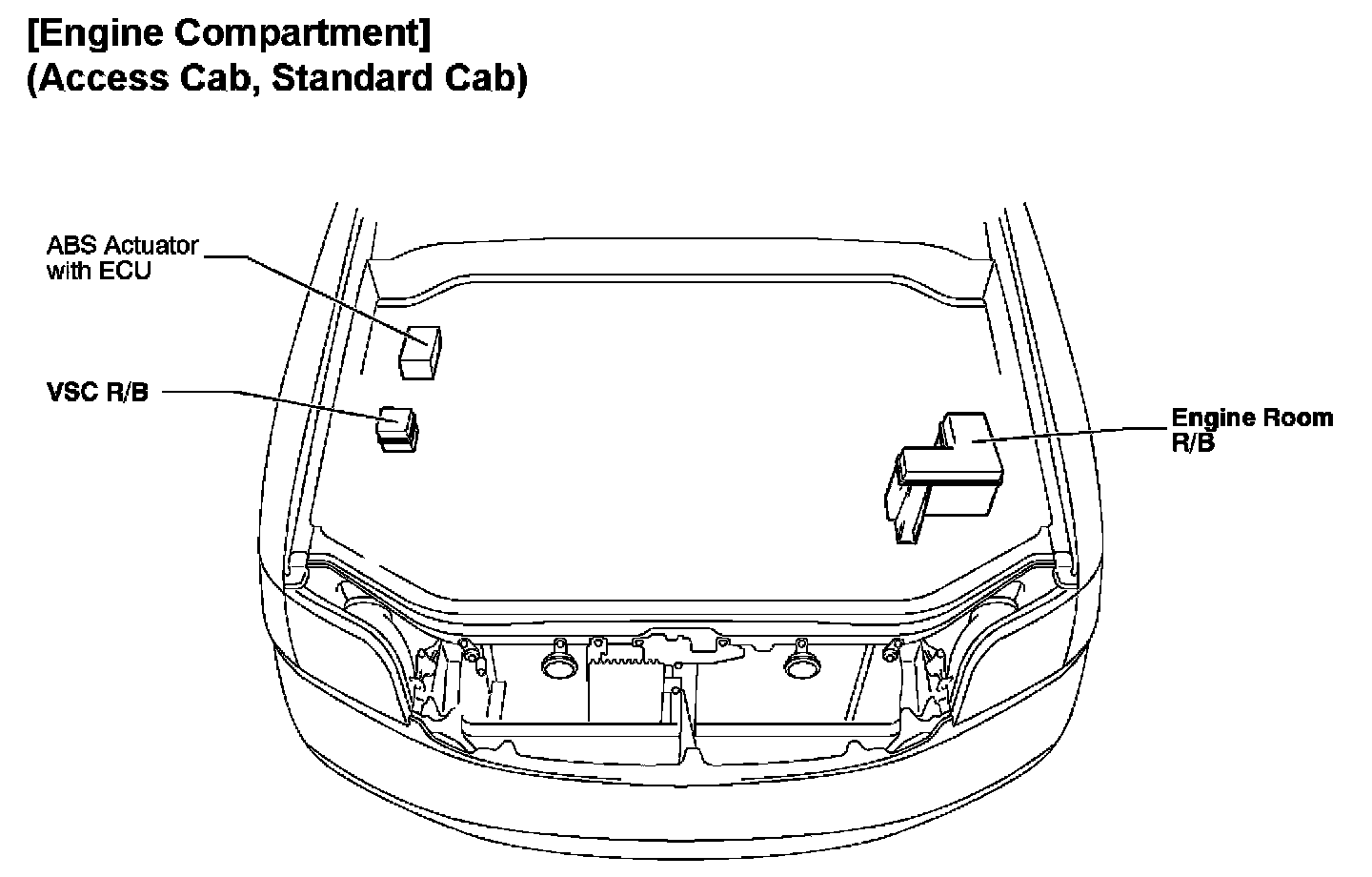

Engine Compartment:

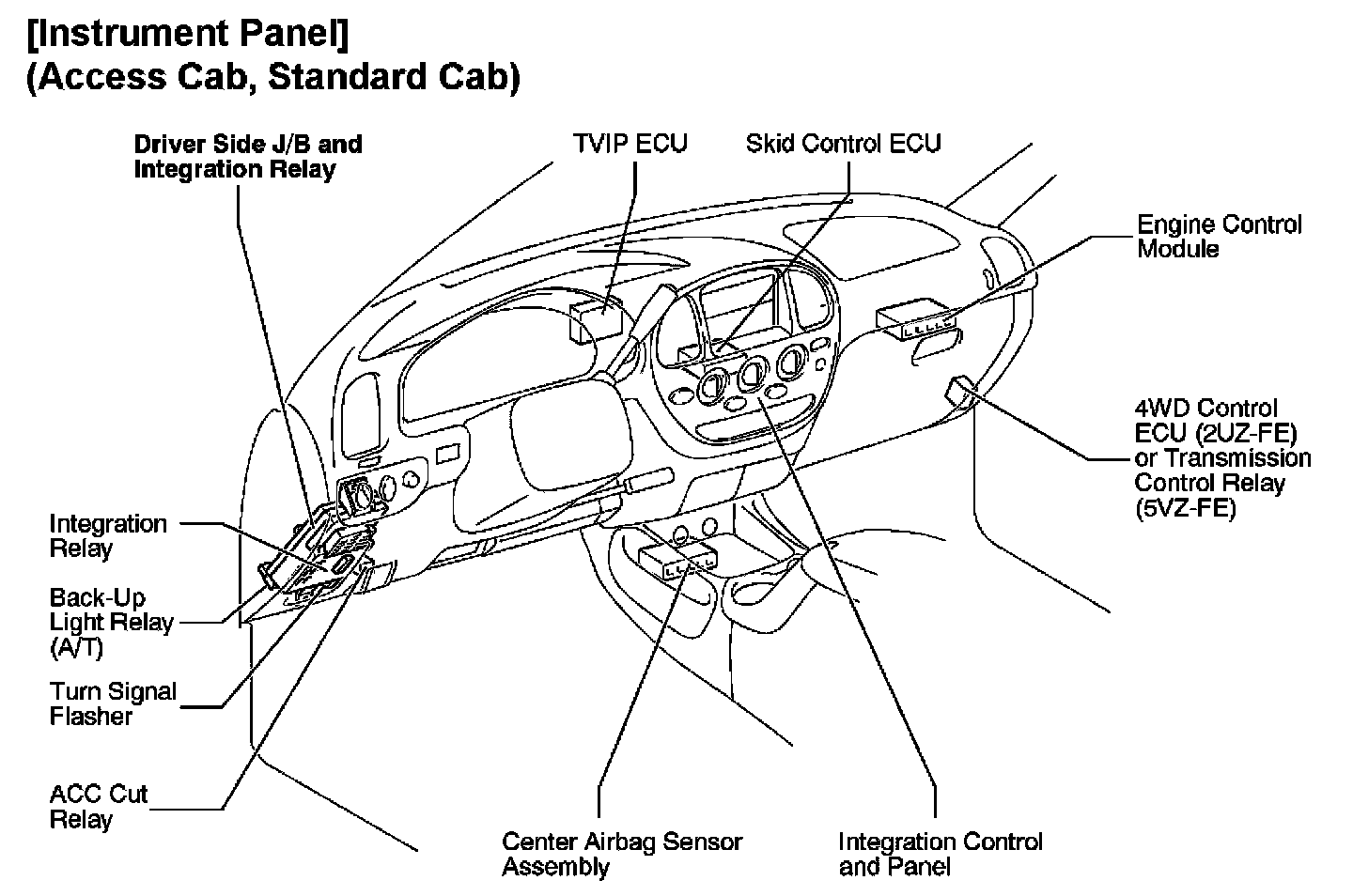

Instrument Panel (Access Cab/Standard Cab):

Engine Room R/B - Engine Compartment Left:

Access Cab & Standard Cab Locations

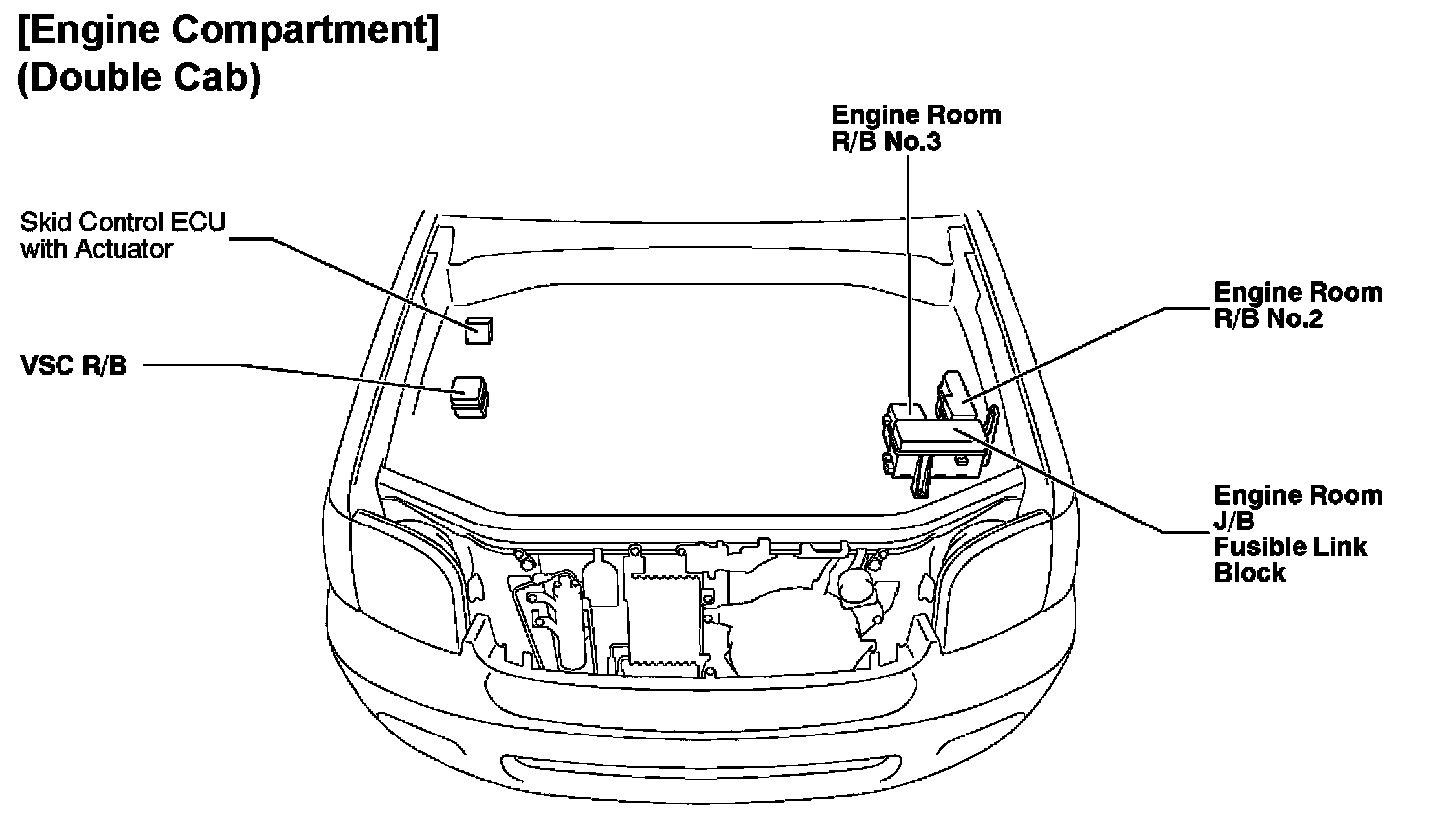

Engine Compartment (Double Cab):

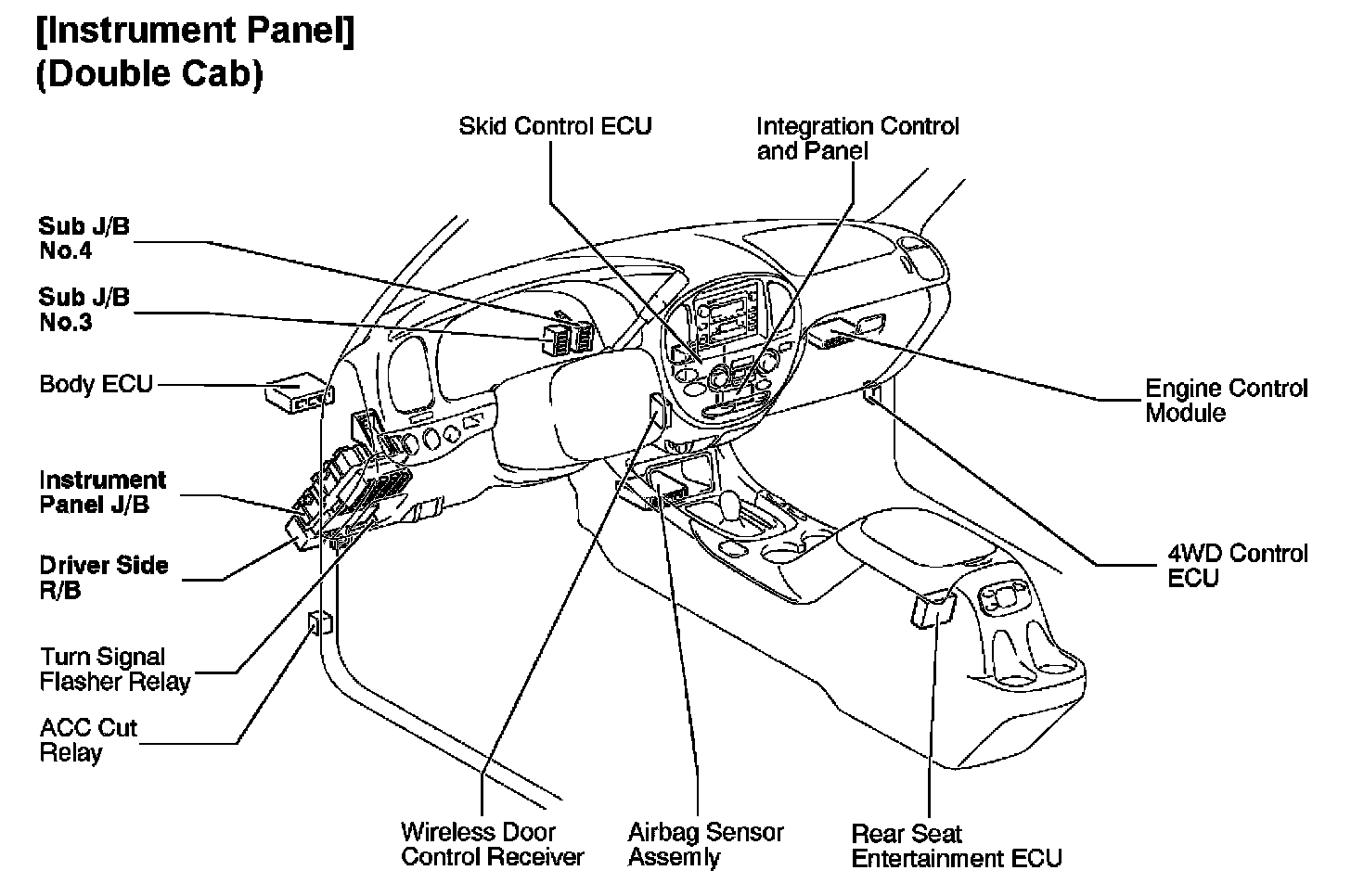

Instrument Panel (Double Cab):

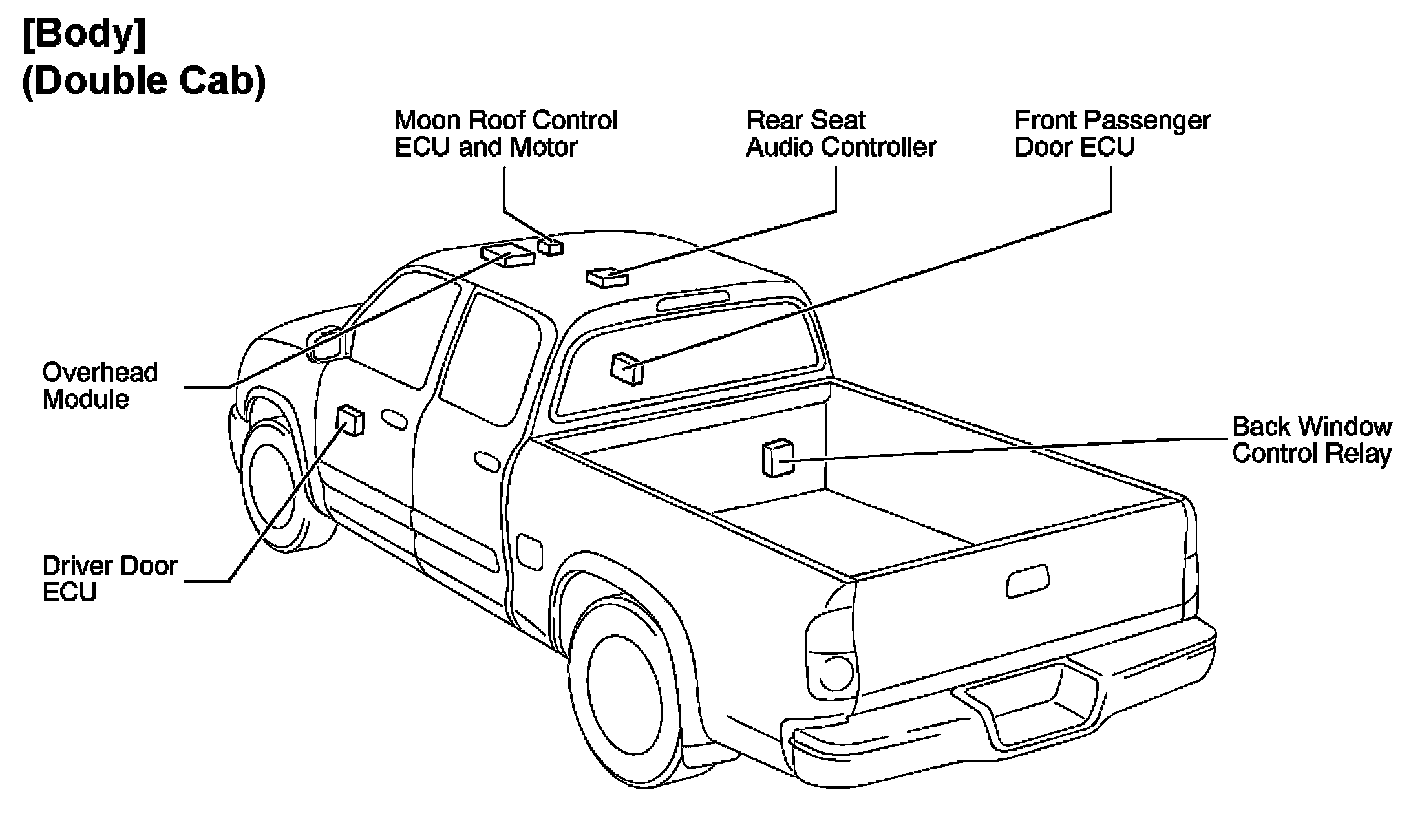

Body (Double Cab):

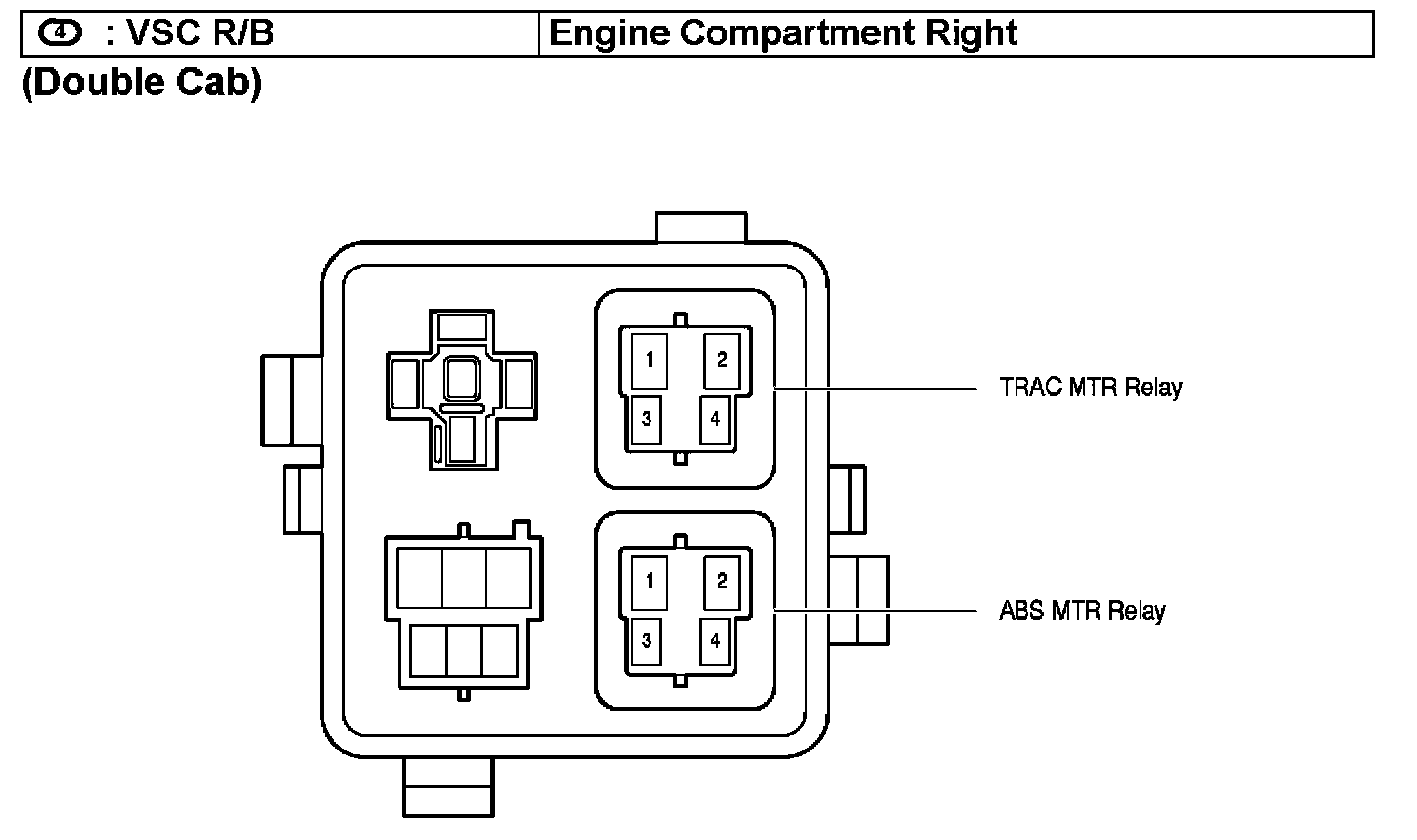

VSC R/B - Engine Compartment Right:

Double Cab Locations
