Ignition Coil: Service and Repair

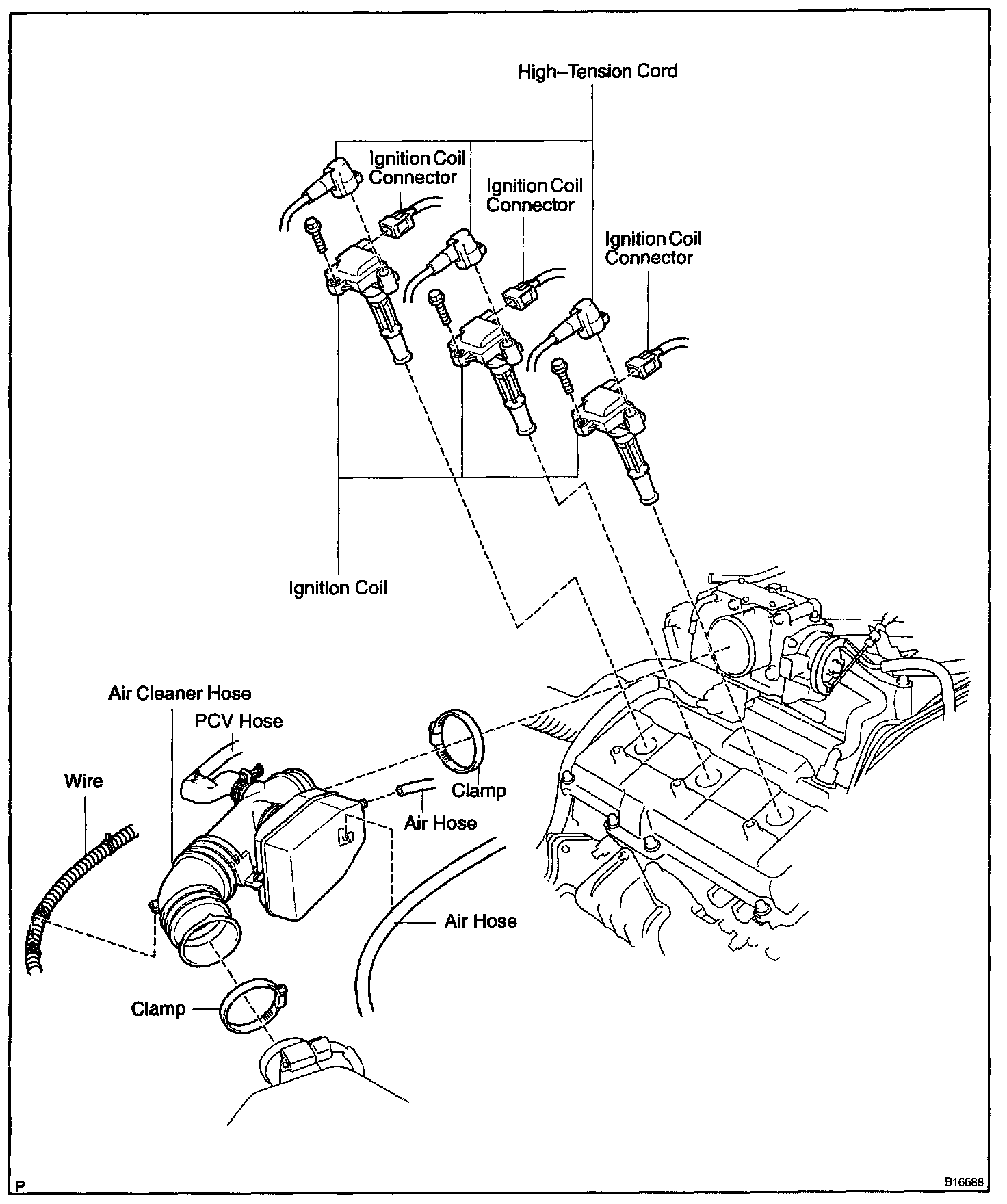

Ignition Coil:






REMOVAL

1. REMOVE AIR CLEANER HOSE
2. DISCONNECT HIGH-TENSION CORDS FROM IGNITION COILS
3. REMOVE IGNITION COILS




a. Disconnect the 3 connectors from the ignition coils.
b. Remove the 3 bolts and 3 ignition coils from the RH cylinder head cover.

HINT: Arrange the ignition coils in correct order.

INSTALLATION

1. INSTALL IGNITION COILS




a. Install the 3 ignition coils to the RH cylinder head cover with the 3 bolts.

Torque: 8 N.m (80 kgf.cm, 70 in.lbf)

b. Connect the 3 connectors to the ignition coils.

2. CONNECT HIGH-TENSION CORDS TO IGNITION COILS
3. INSTALL AIR CLEANER HOSE
