O/D Off Indicator Light Does Not Light Up

O/D OFF Indicator Light Does Not Light Up

CIRCUIT DESCRIPTION
If the O/D main switch is pressed while the O/D OFF indicator is off, the O/D indicator will turn on. If the O/D main switch is pressed while the O/D OFF indicator is on, the O/D indicator will turn off (the ignition switch ON).

Wiring Diagram:

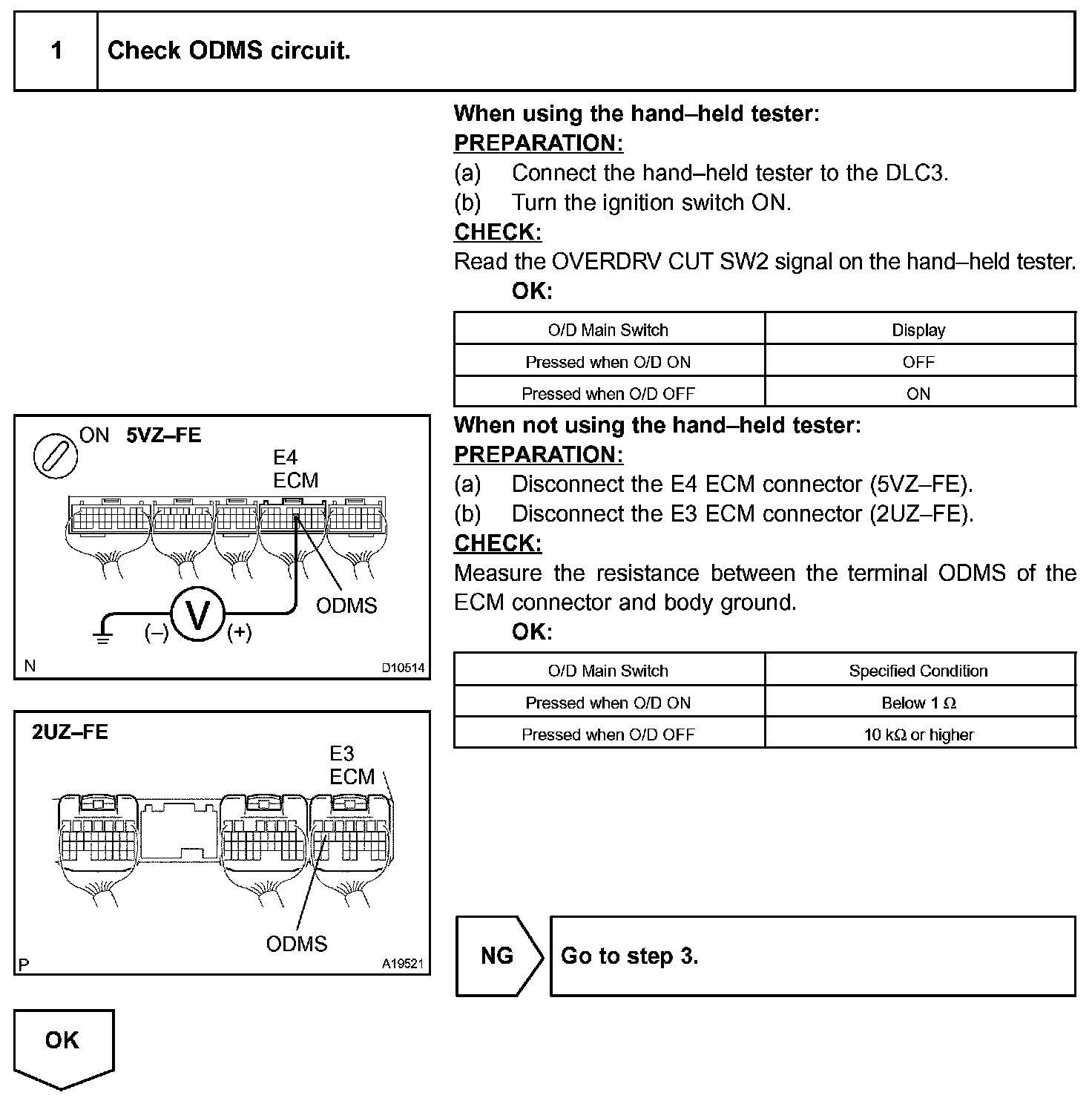

Step 1:

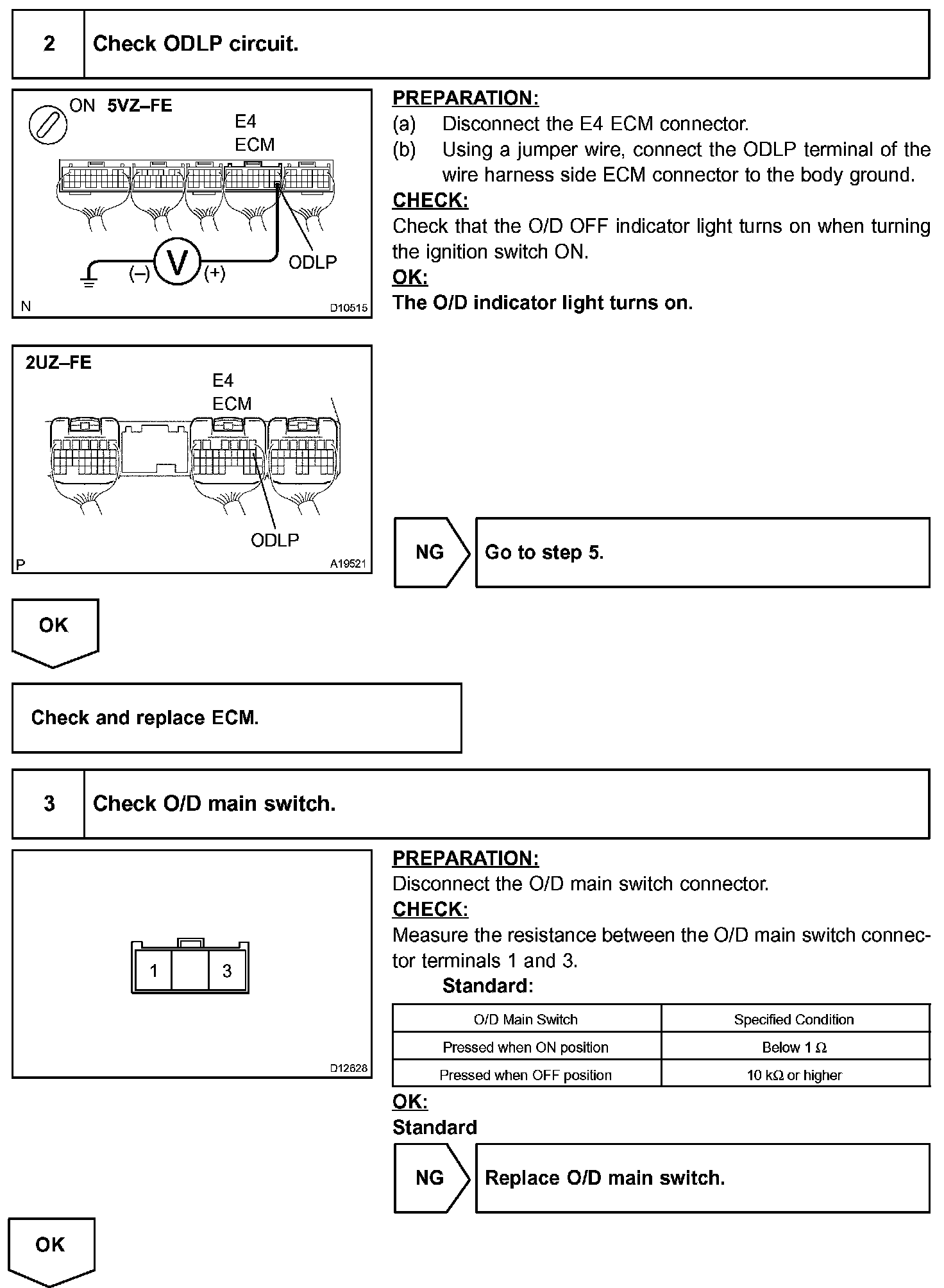

Step 2 - 3:

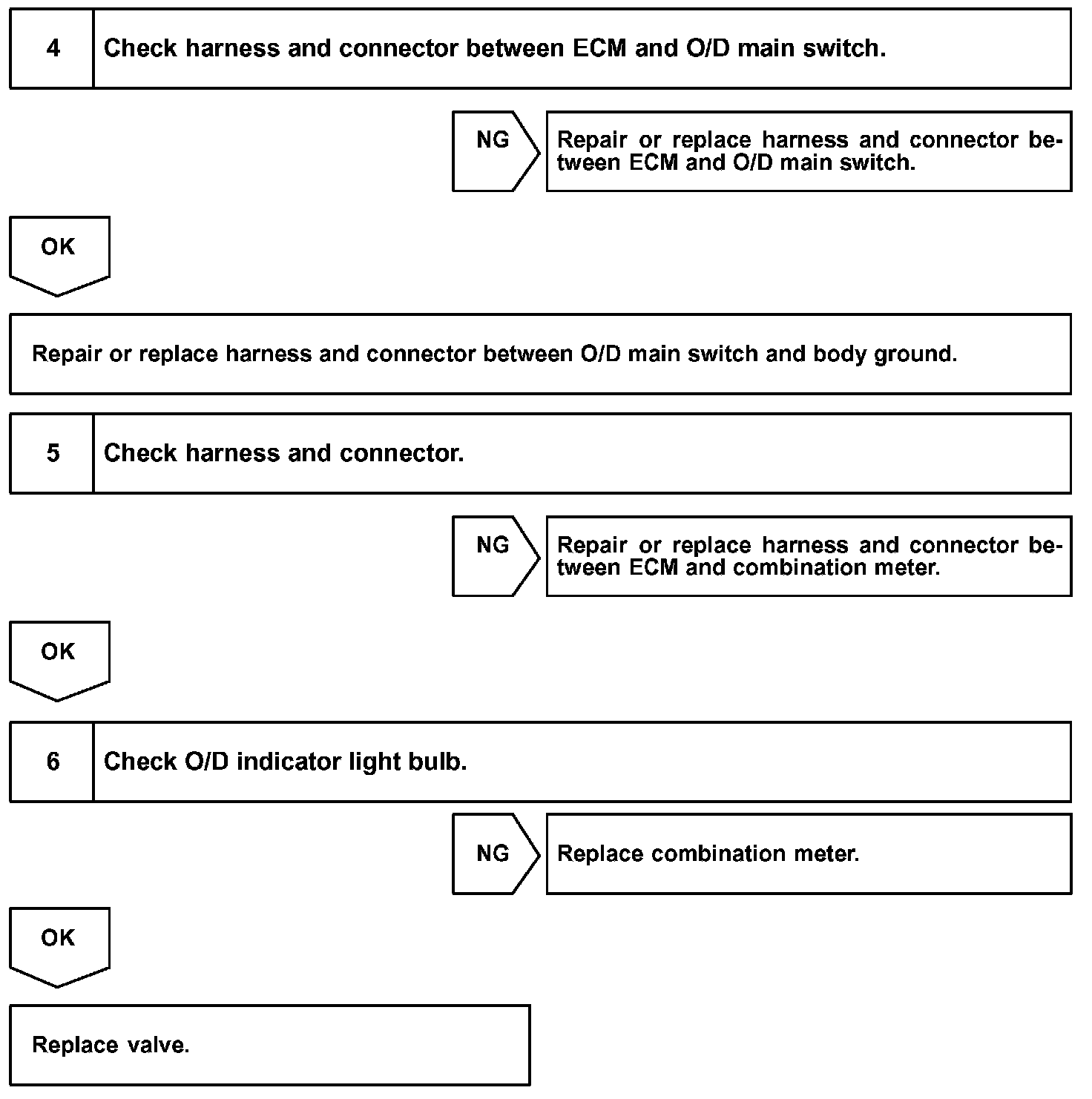

Step 4 - 6:

INSPECTION PROCEDURE
