Theft Deterrent System

TERMINALS OF ECU

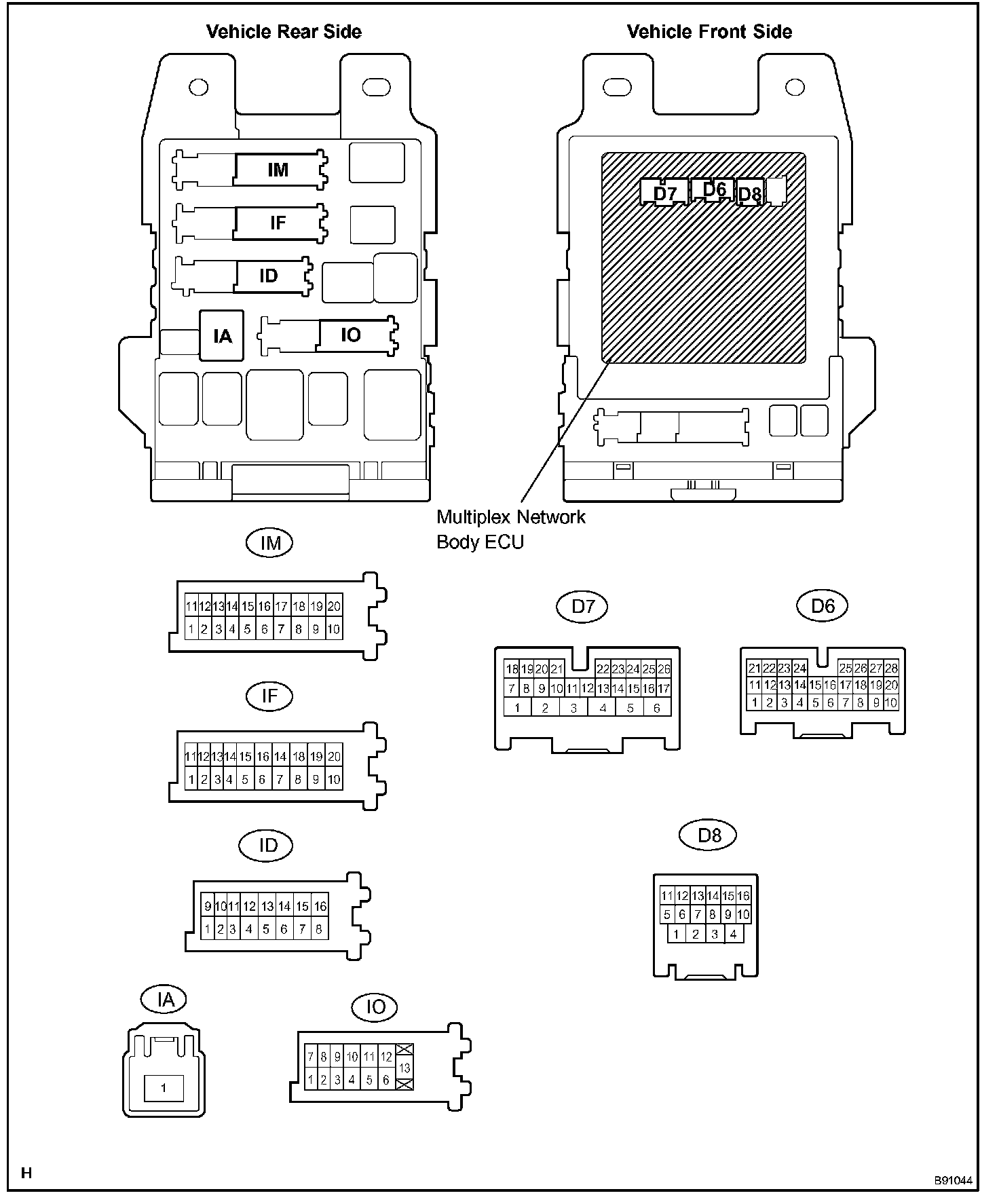

1. CHECK INSTRUMENT PANEL J/B ASSEMBLY (MULTIPLEX NETWORK BODY ECU)
a. Disconnect the D6, D7 and D8 ECU connectors.
b. Disconnect the IA,ID,IF and IM J/B connectors.

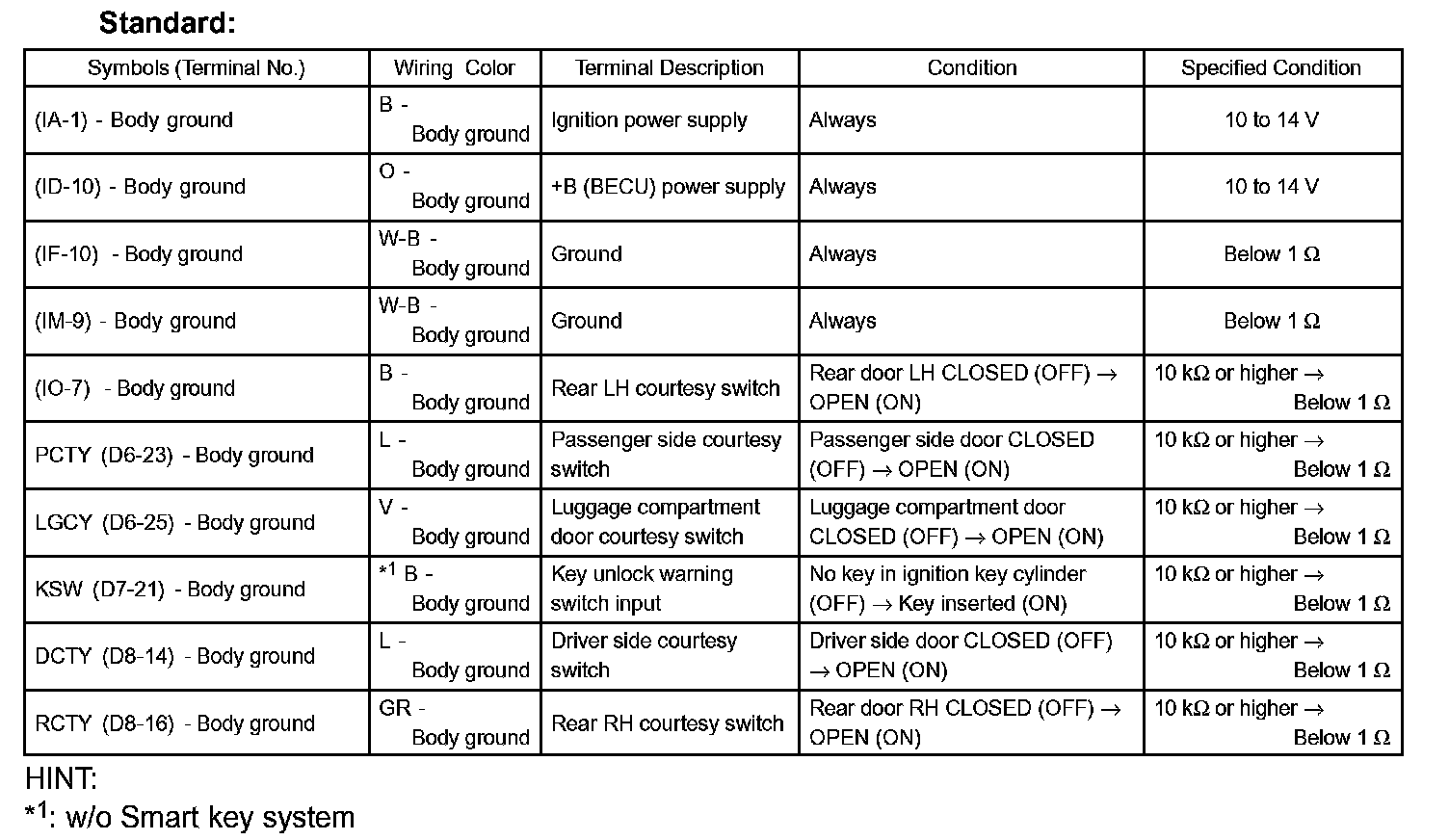

c. Check the voltage and resistance between each terminal of the wire harness side connectors and body ground.
d. Reconnect the D6, D7 and D8 ECU connectors.
e. Reconnect the 1A,1D,1F and 1M J/B connectors.




f. Check the voltage between each terminal of the connectors and the body ground.

2. CHECK ENGINE ROOM J/B ASSEMBLY (FRONT CONTROLLER)




a. Disconnect the 1B, 1C and 1I ECU connectors.




b. Check the resistance between each terminal of the wire harness connectors and body ground.
c. Reconnect the 1B,1C and 1I ECU connectors.




d. Check the voltage between each terminal of the connectors and the body ground.
