Active Test

ACTIVE TEST

HINT: Perform the ACTIVE TEST using the hand-held tester to operate the motors of the front seat outer belts. Performing the ACTIVE TEST is one of the methods to shorten labor time. It is possible to display the DATA LIST during the ACTIVE TEST.

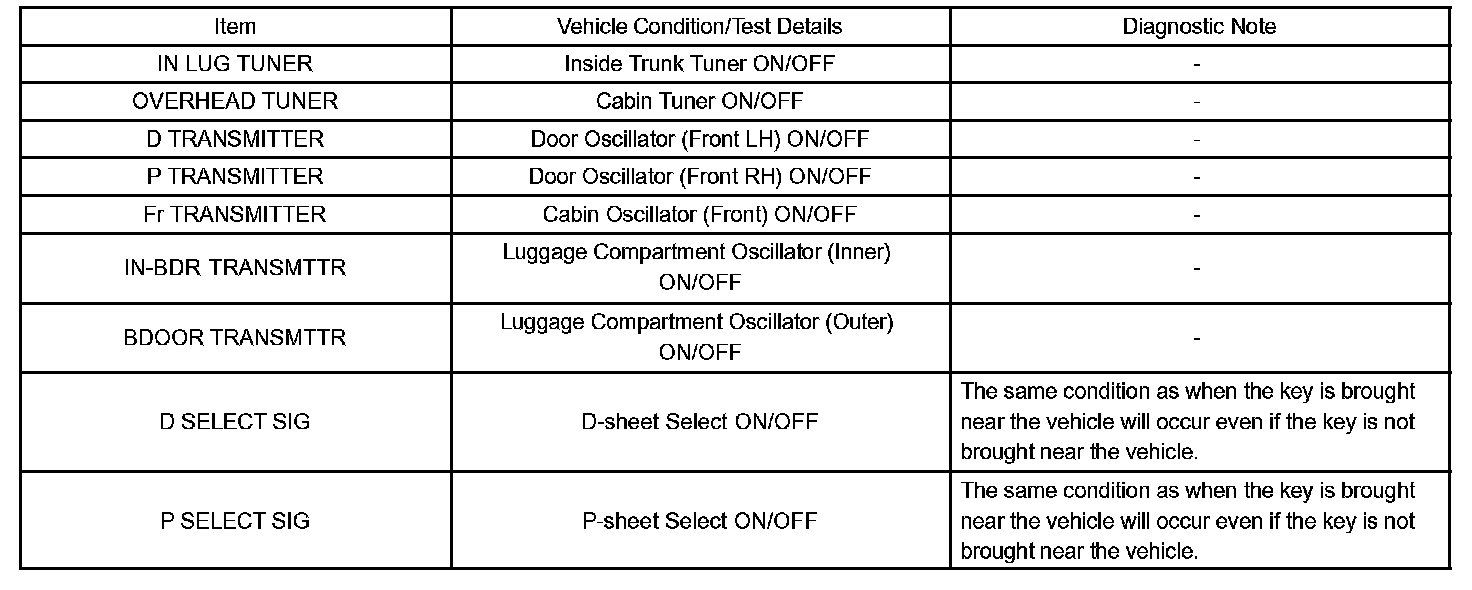

Smart Key (Certification ECU):

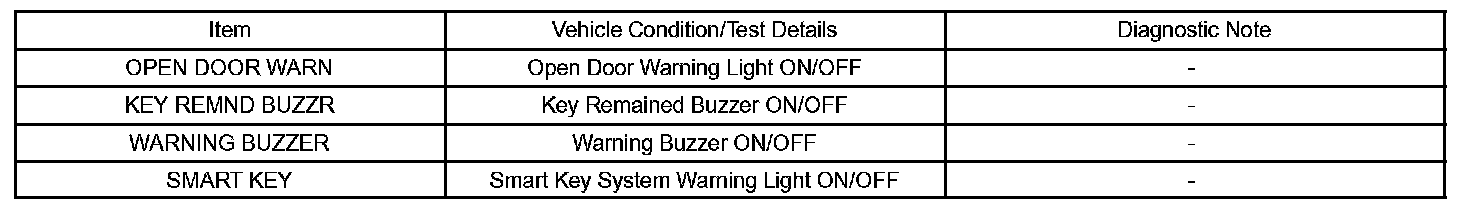

Meter (Combination Meter):

Smart Key (Steering Lock ECU):

a. Connect the hand-held tester to the DLC3.
b. Turn the engine switch on (IG).
c. Following the display on the tester, select the "ACTIVE TEST".
