Navigation Module: Testing and Inspection

TERMINALS OF ECU

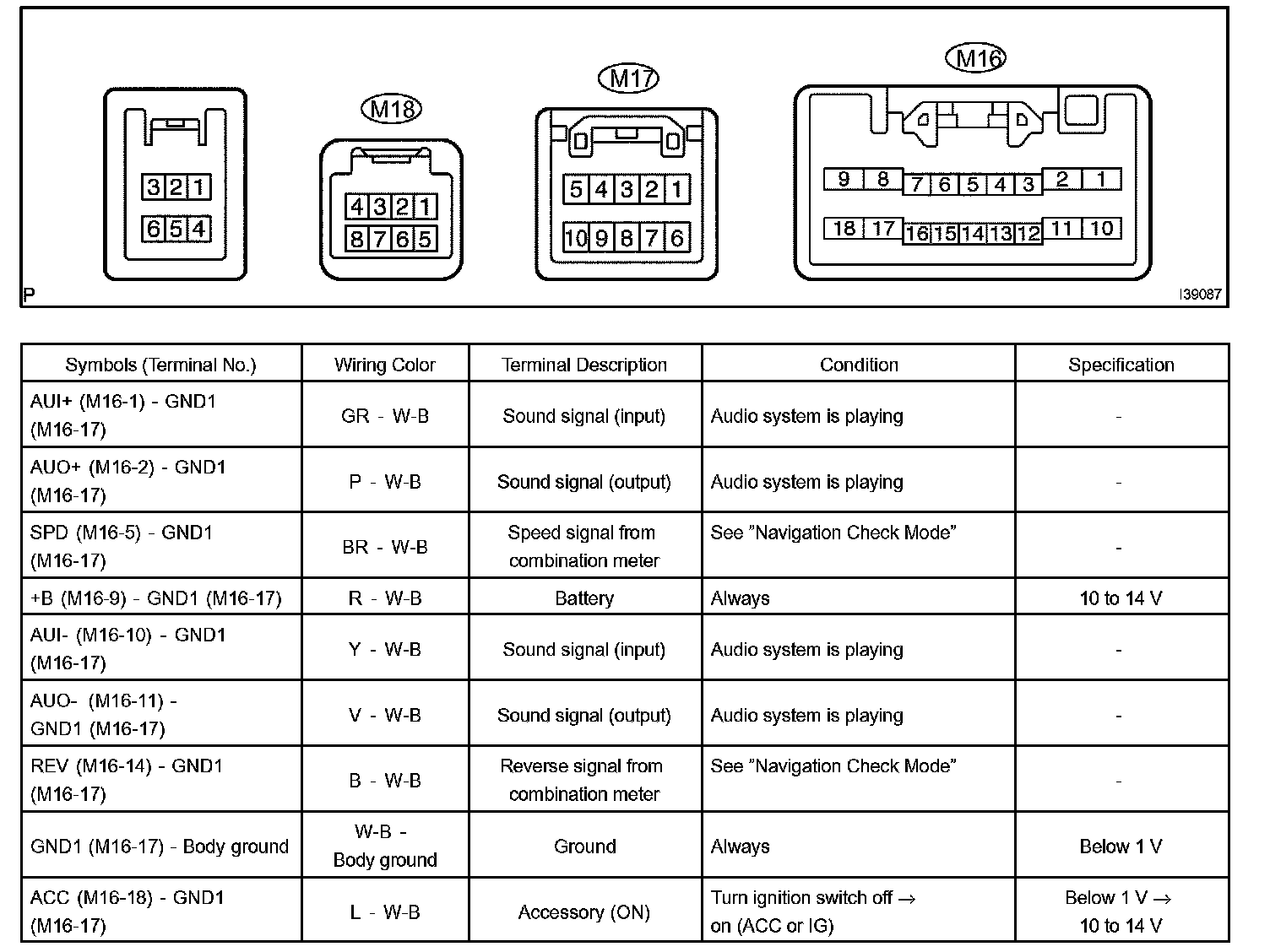

Terminals Of Control Module/Pinouts - Multi-Display Part 1:

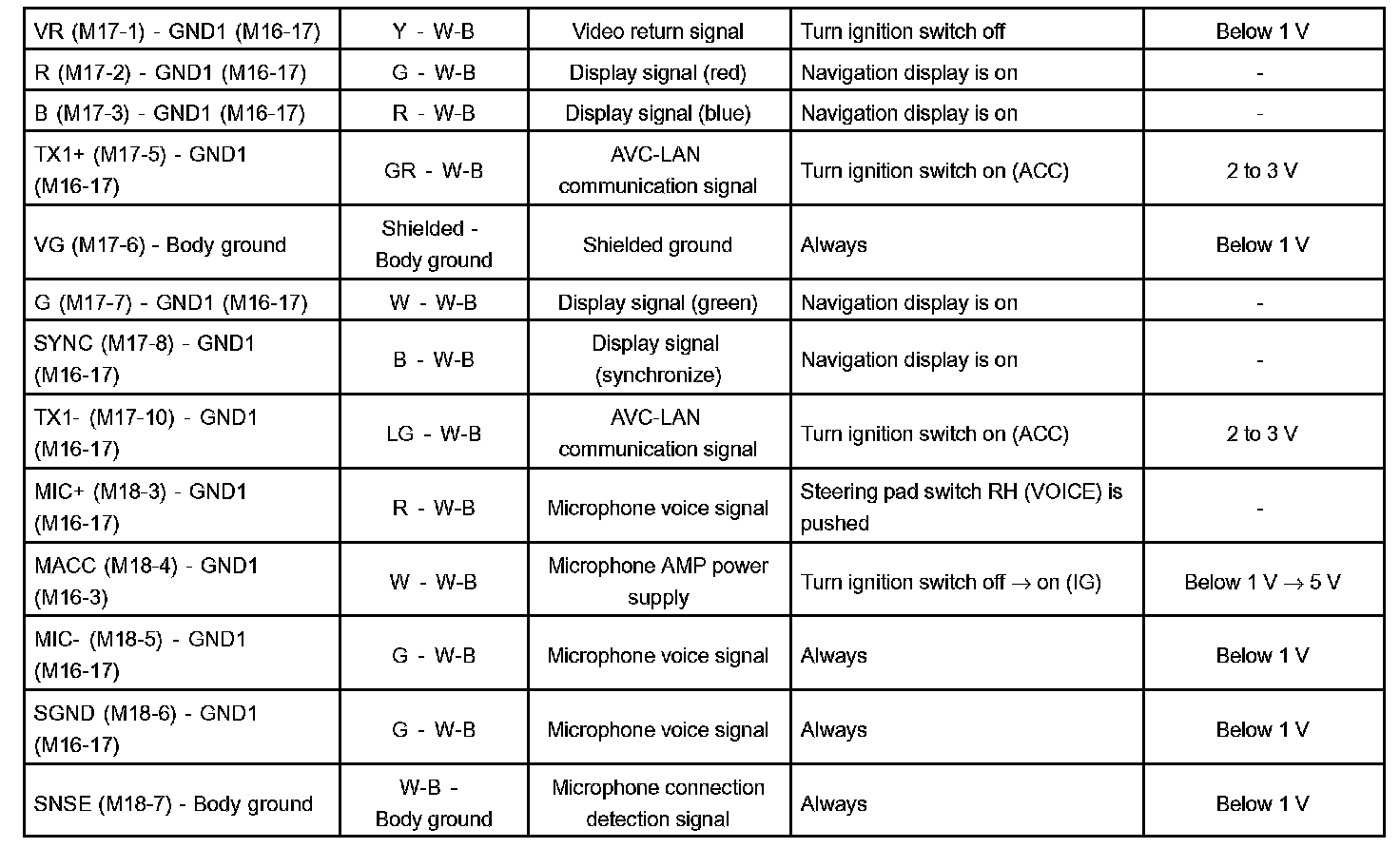

Terminals Of Control Module/Pinouts - Multi-Display Part 2:

1. MULTI-DISPLAY:

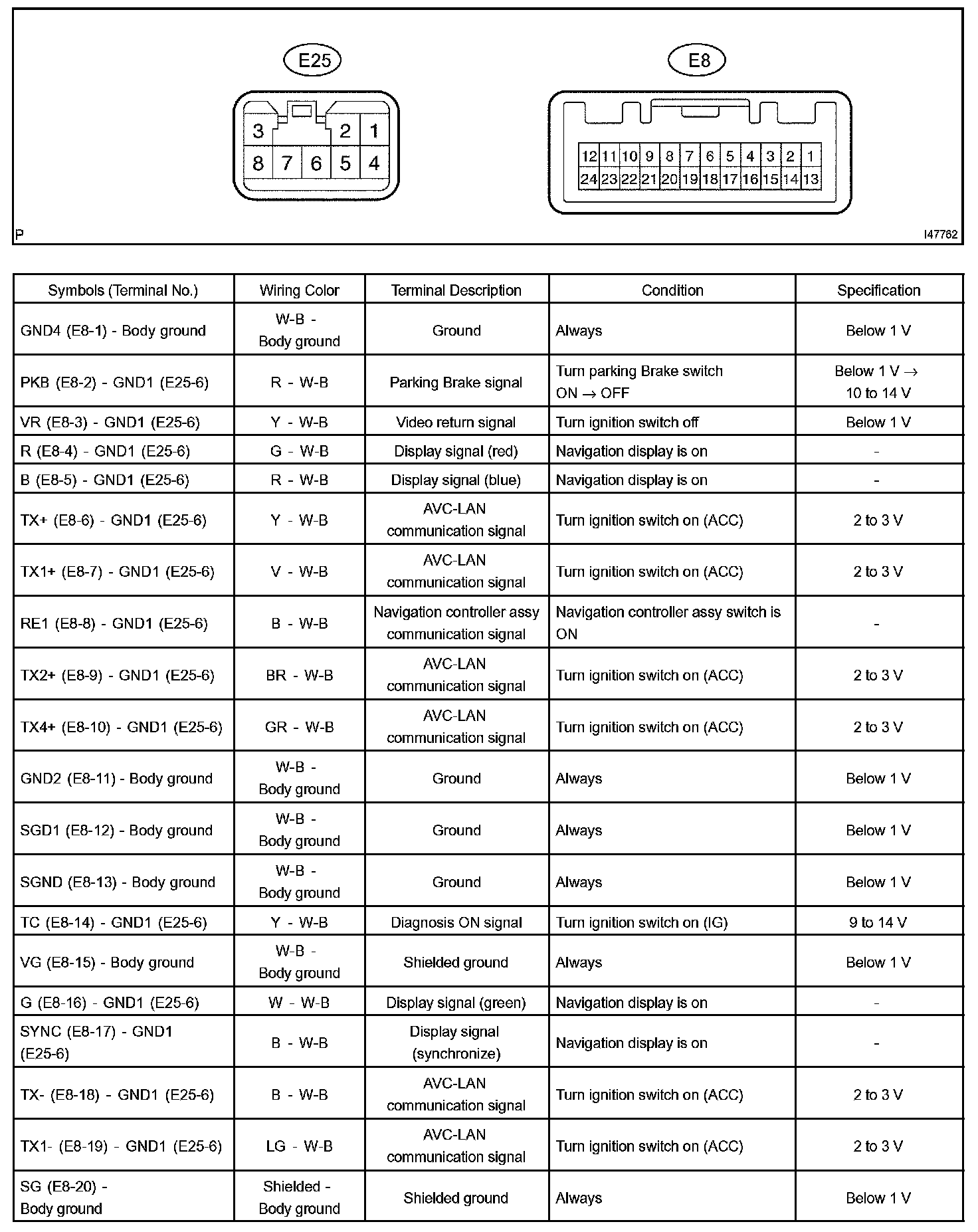

Terminals Of Control Module/Pinouts - Navigation ECU Part 1:

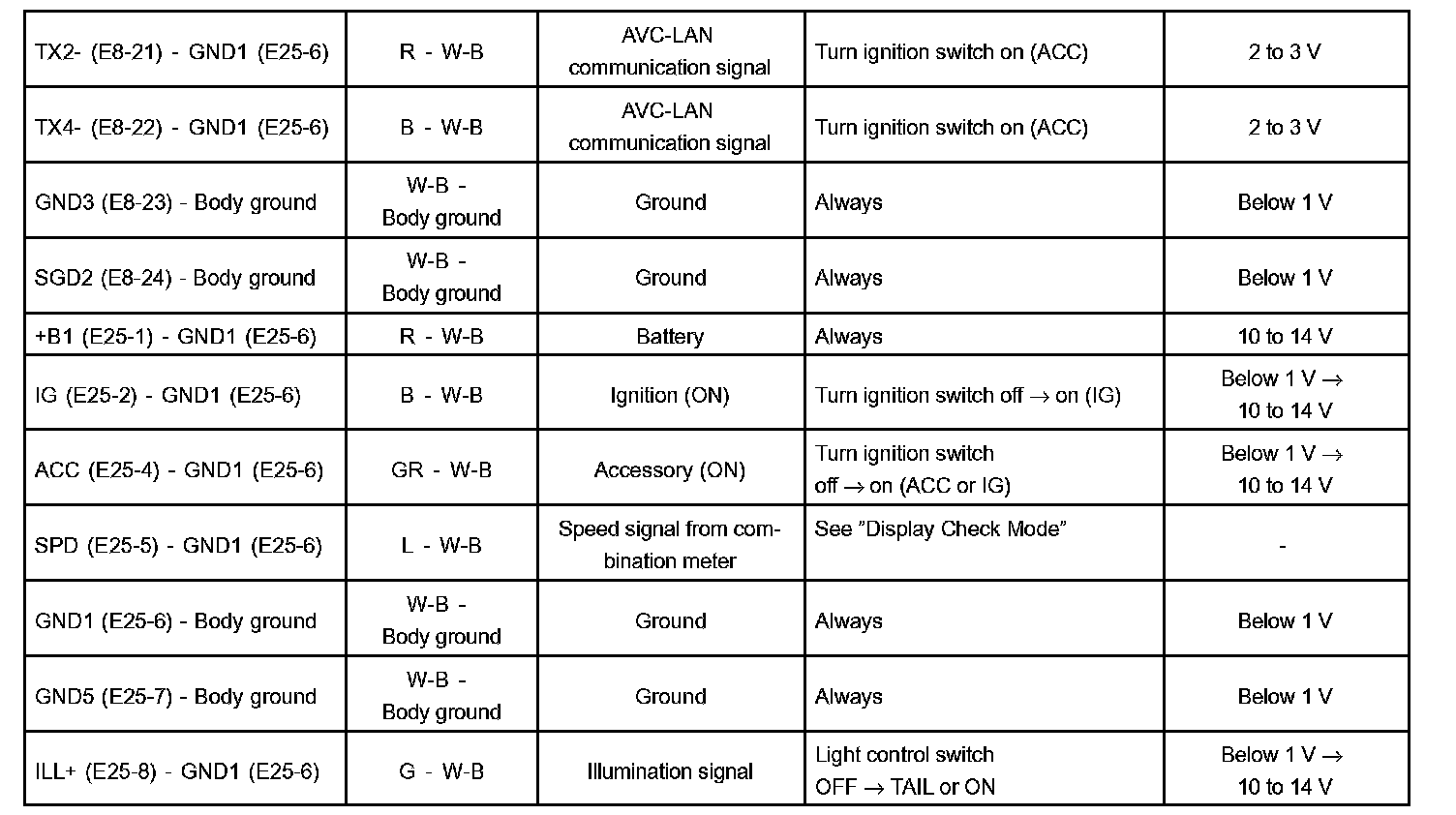

Terminals Of Control Module/Pinouts - Navigation ECU Part 2:

2. NAVIGATION ECU:

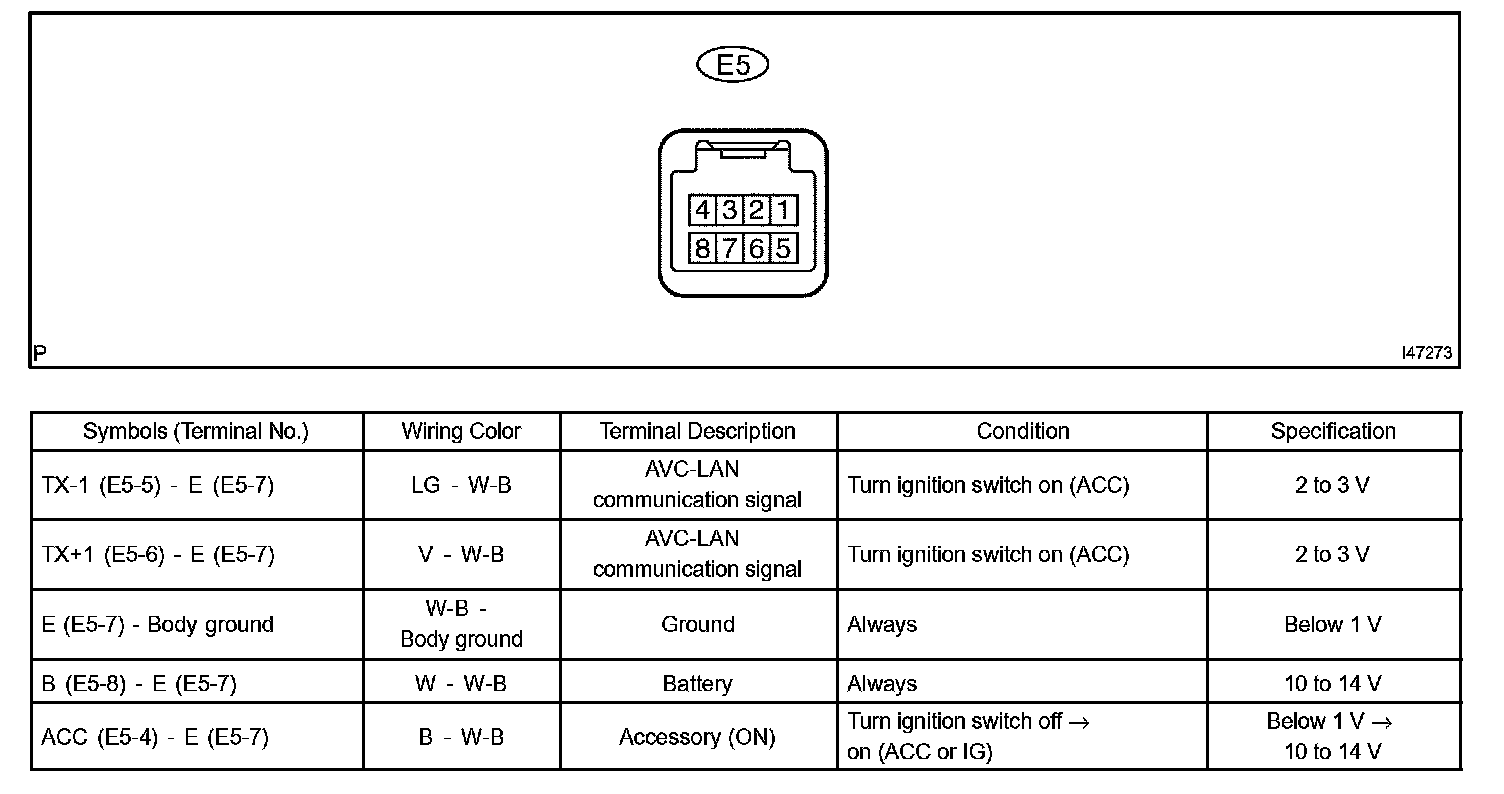

Terminals Of Control Module/Pinouts - Clock Assy:

3. CLOCK ASSEMBLY:

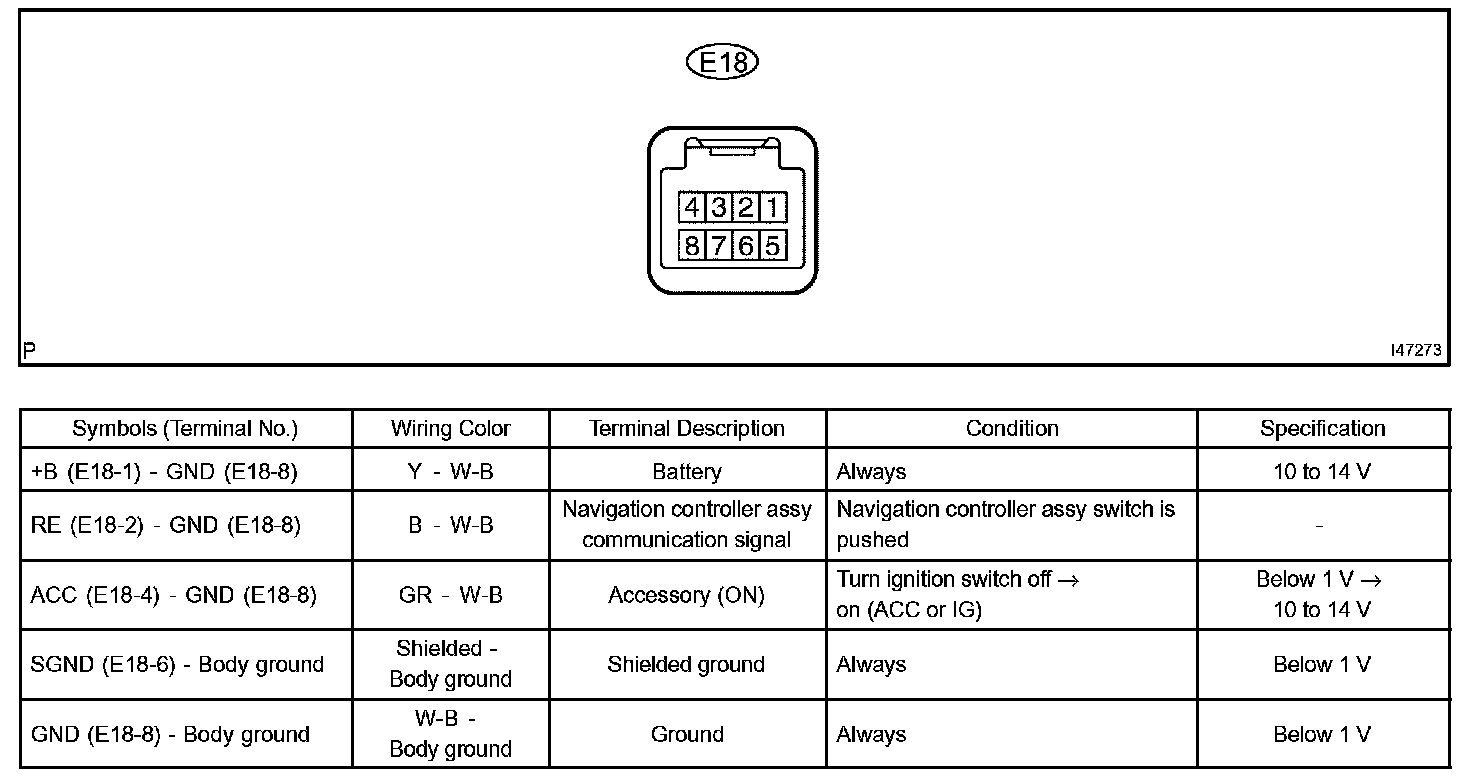

Terminals Of Control Module/Pinouts - Navigation Controller Assy:

4. NAVIGATION CONTROLLER ASSEMBLY:

5. RADIO RECEIVER ASSEMBLY

6. STEREO COMPONENT AMPLIFIER ASSEMBLY

7. NETWORK GATEWAY ECU
