SFI System - Diagnostics

SYSTEM DIAGRAM

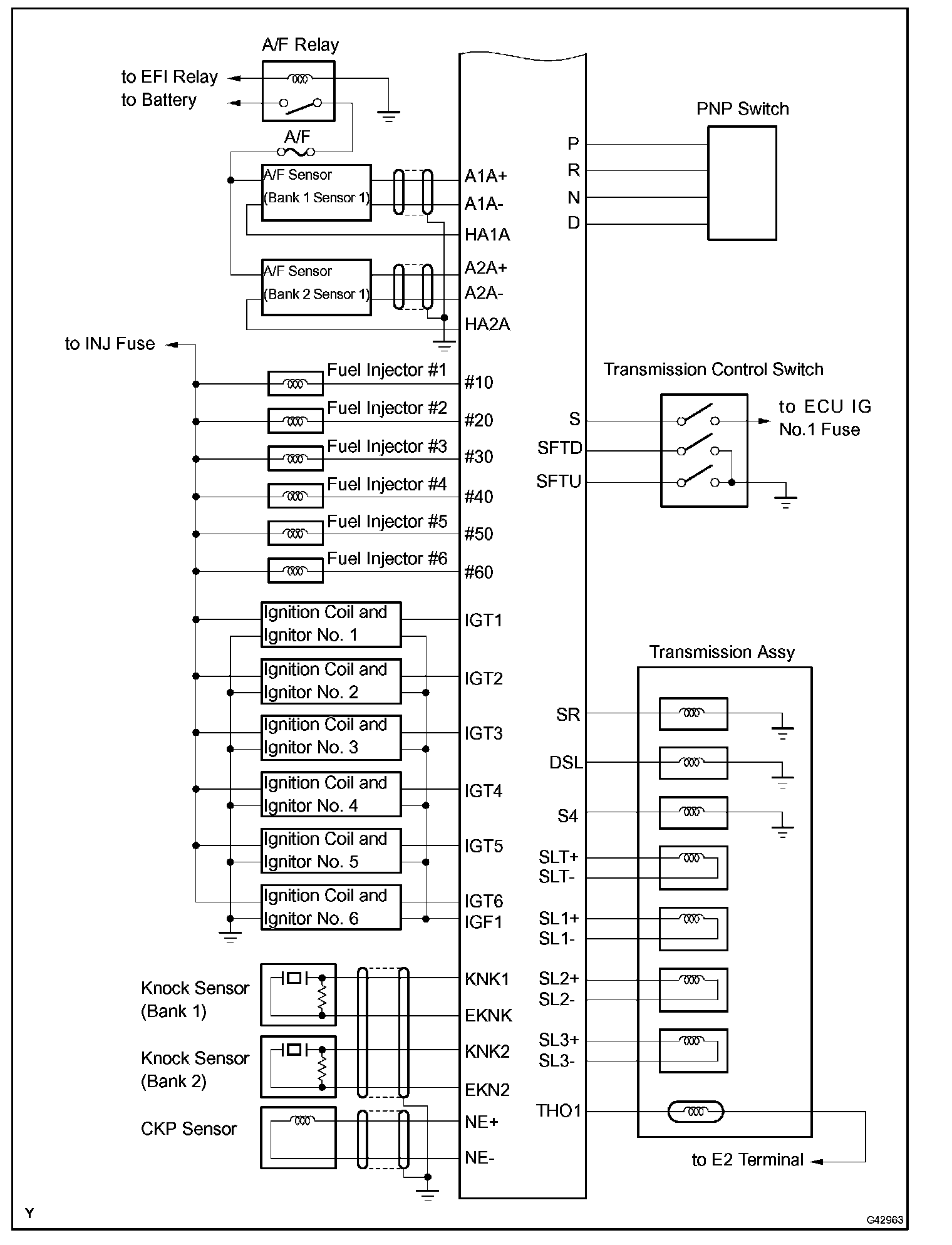

System Diagram - Without Smart Key System Part 1:

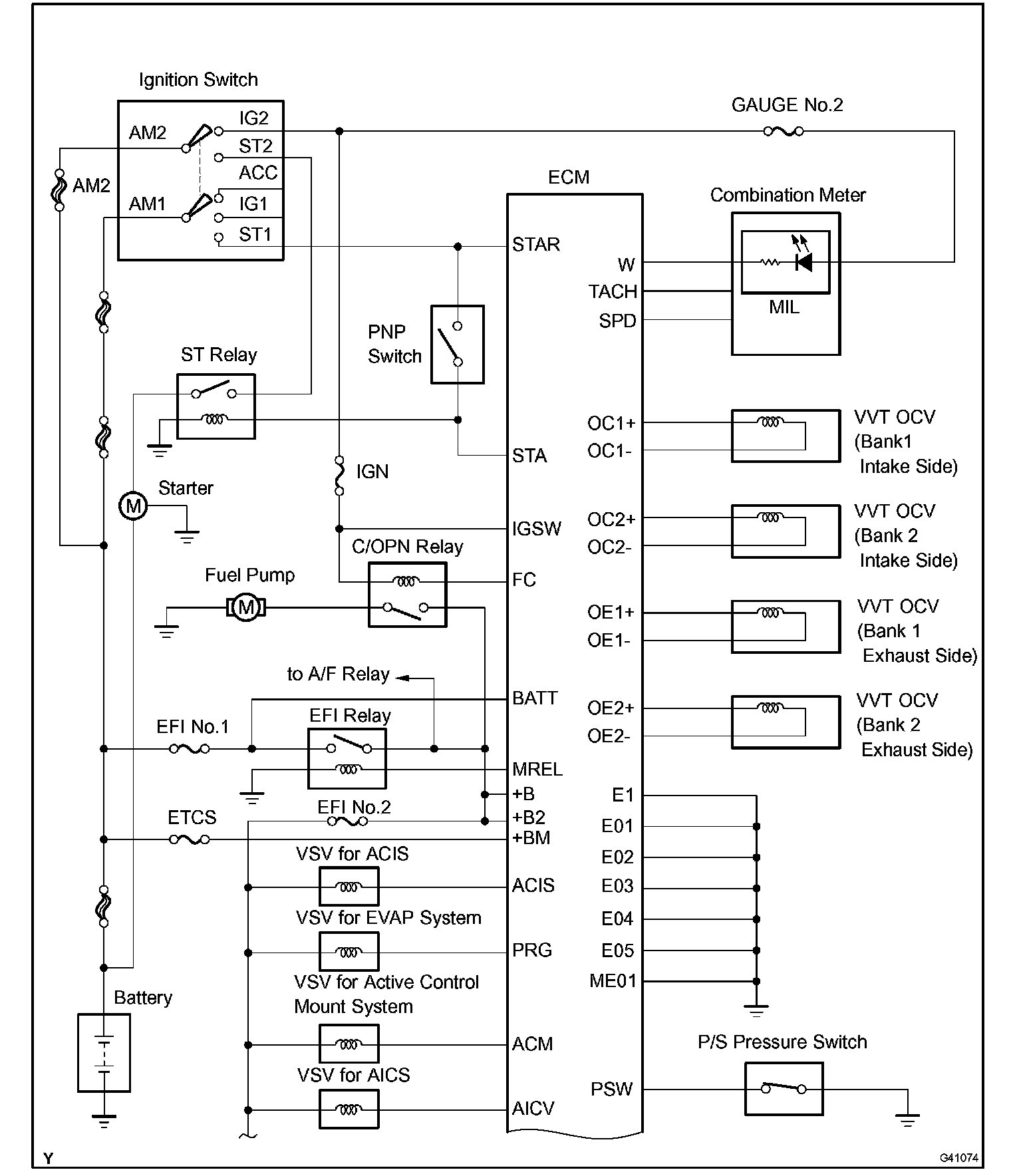

System Diagram - Without Smart Key System Part 2:

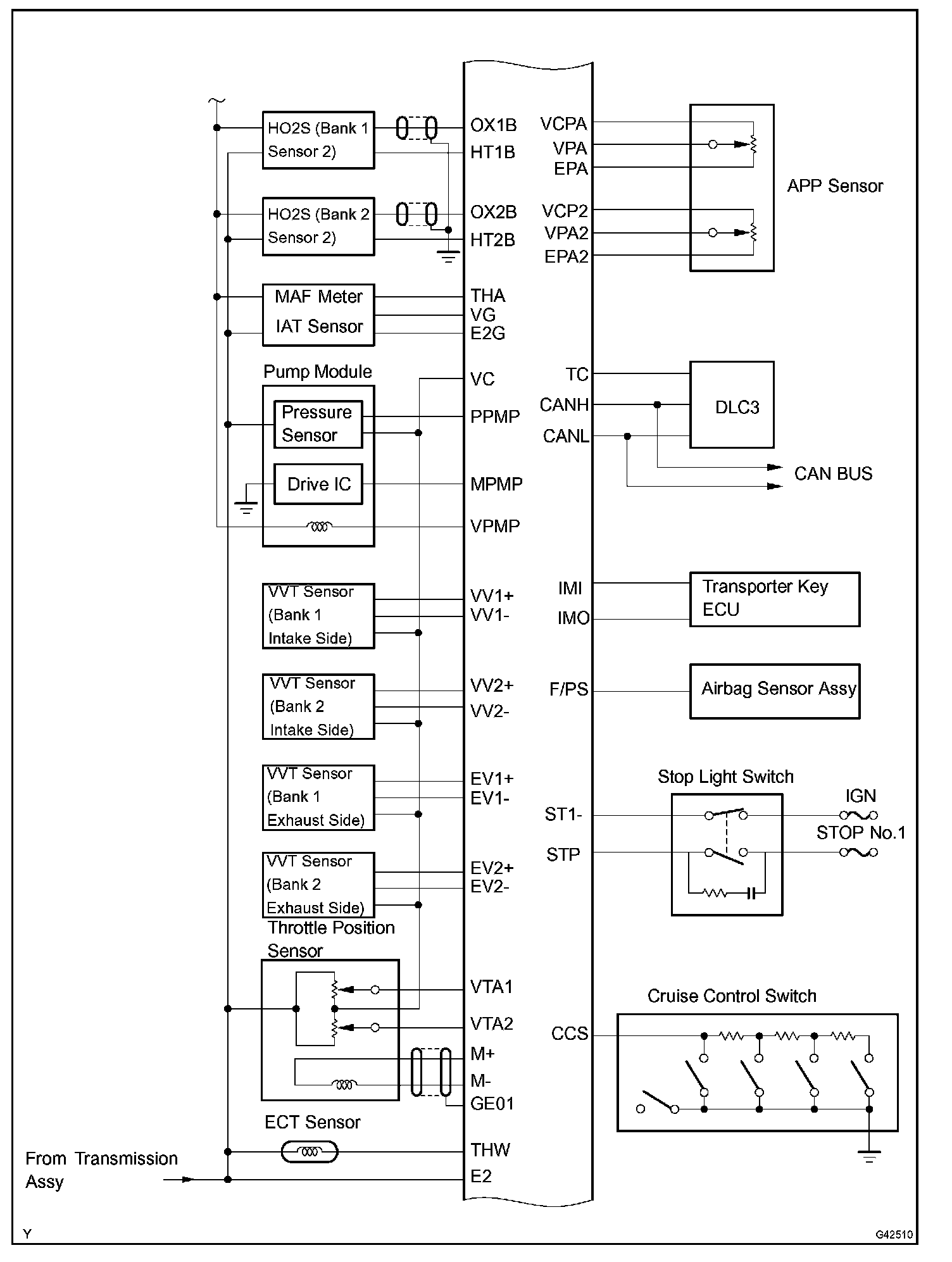

System Diagram - Without Smart Key System Part 3:

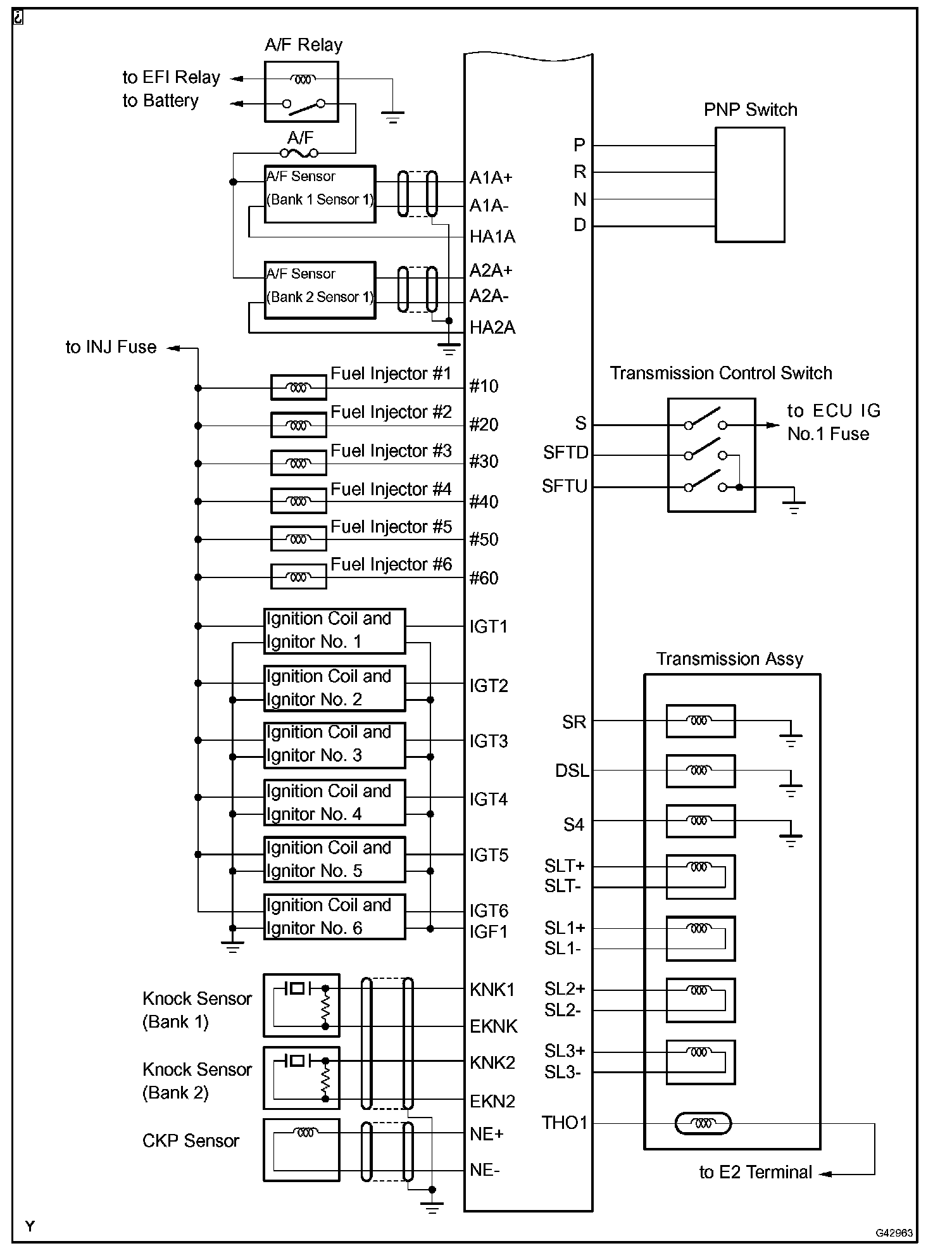

System Diagram - With Smart Key System Part 1:

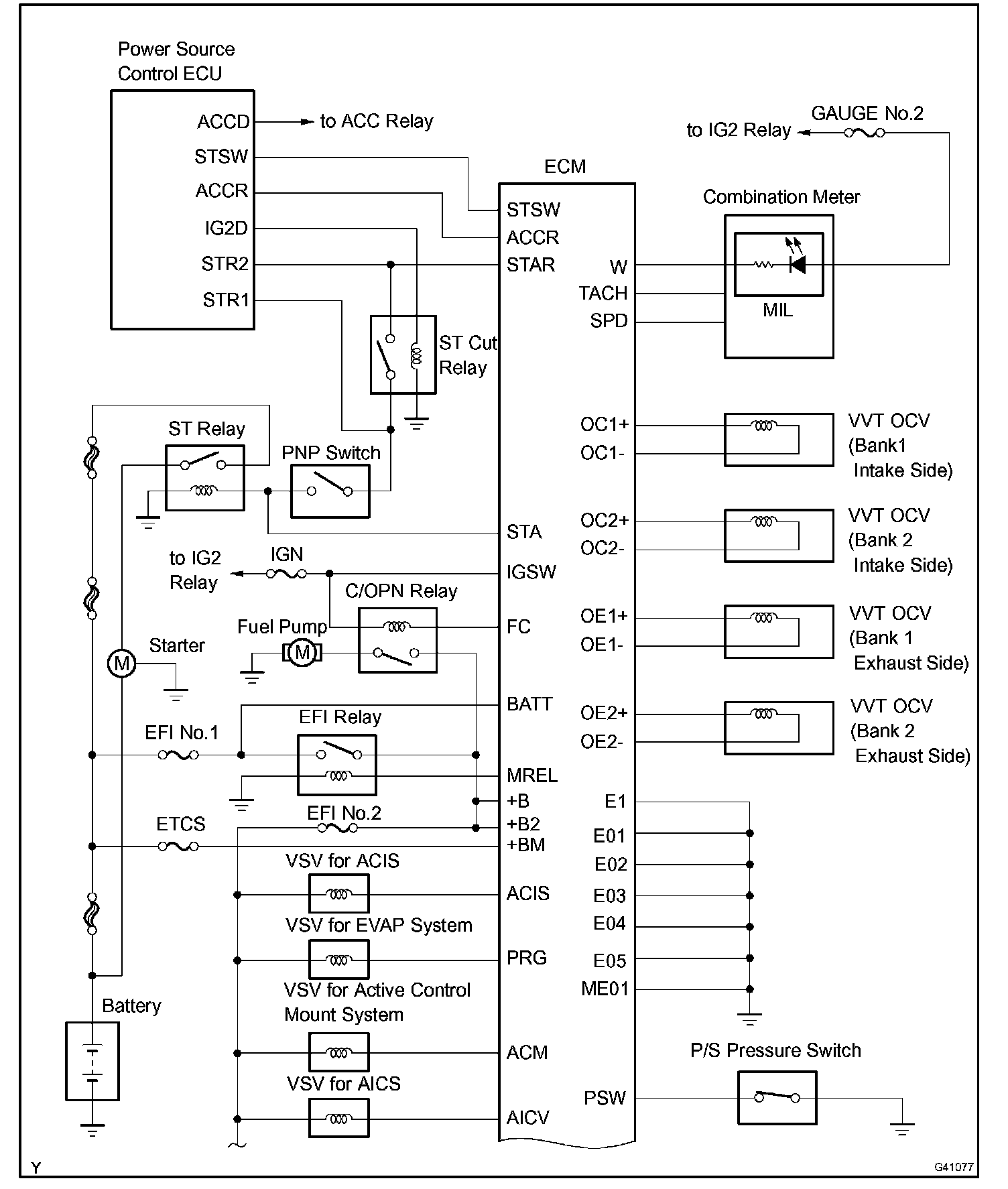

System Diagram - With Smart Key System Part 2:

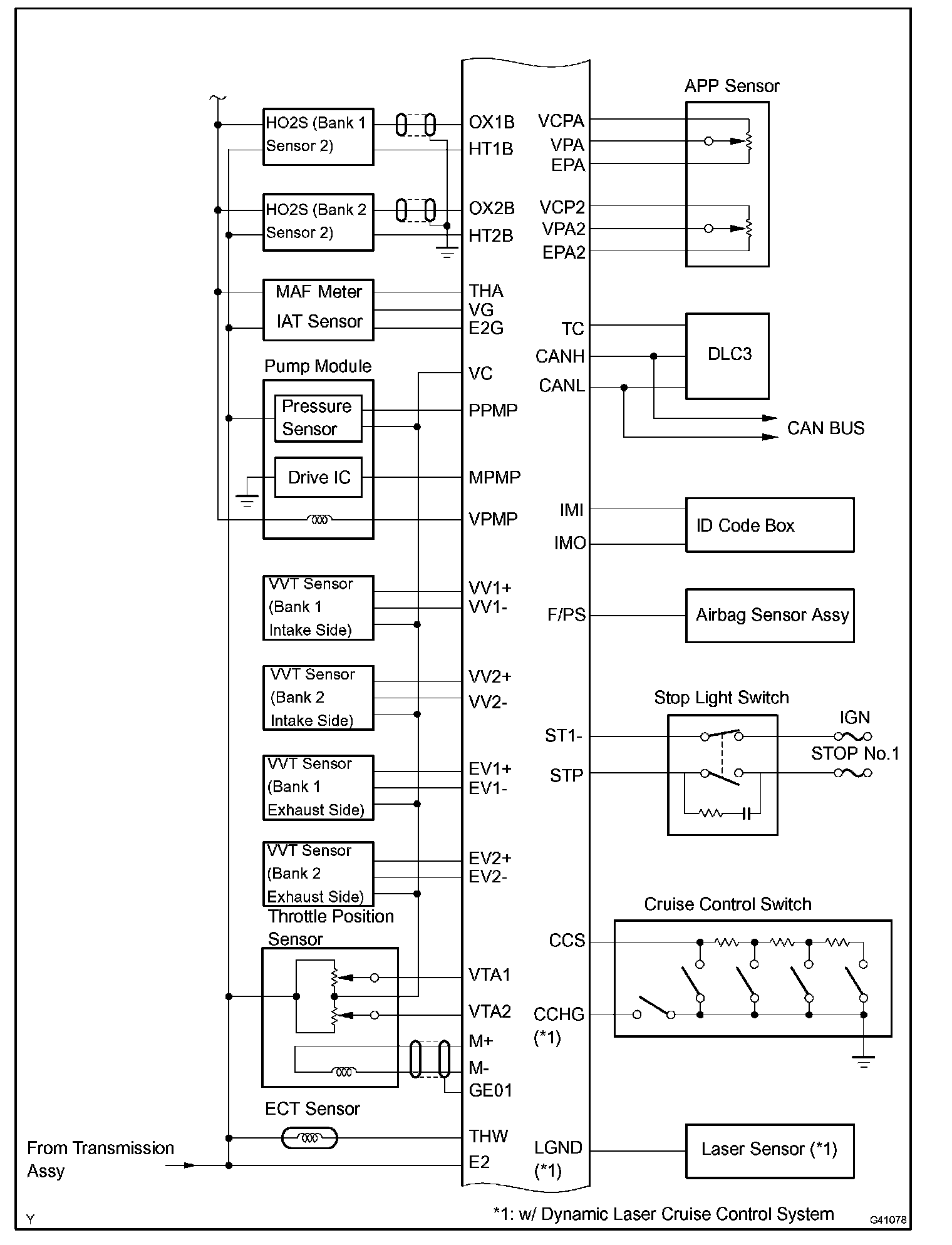

System Diagram - With Smart Key System Part 3:

COMMUNICATION WITH OTHER COMPUTERS

COMMUNICATIONS

The ECM communicates with the following ECU using the signals listed. The table explains receiving and sending signals by the ECM or ECU.
