System Specifications

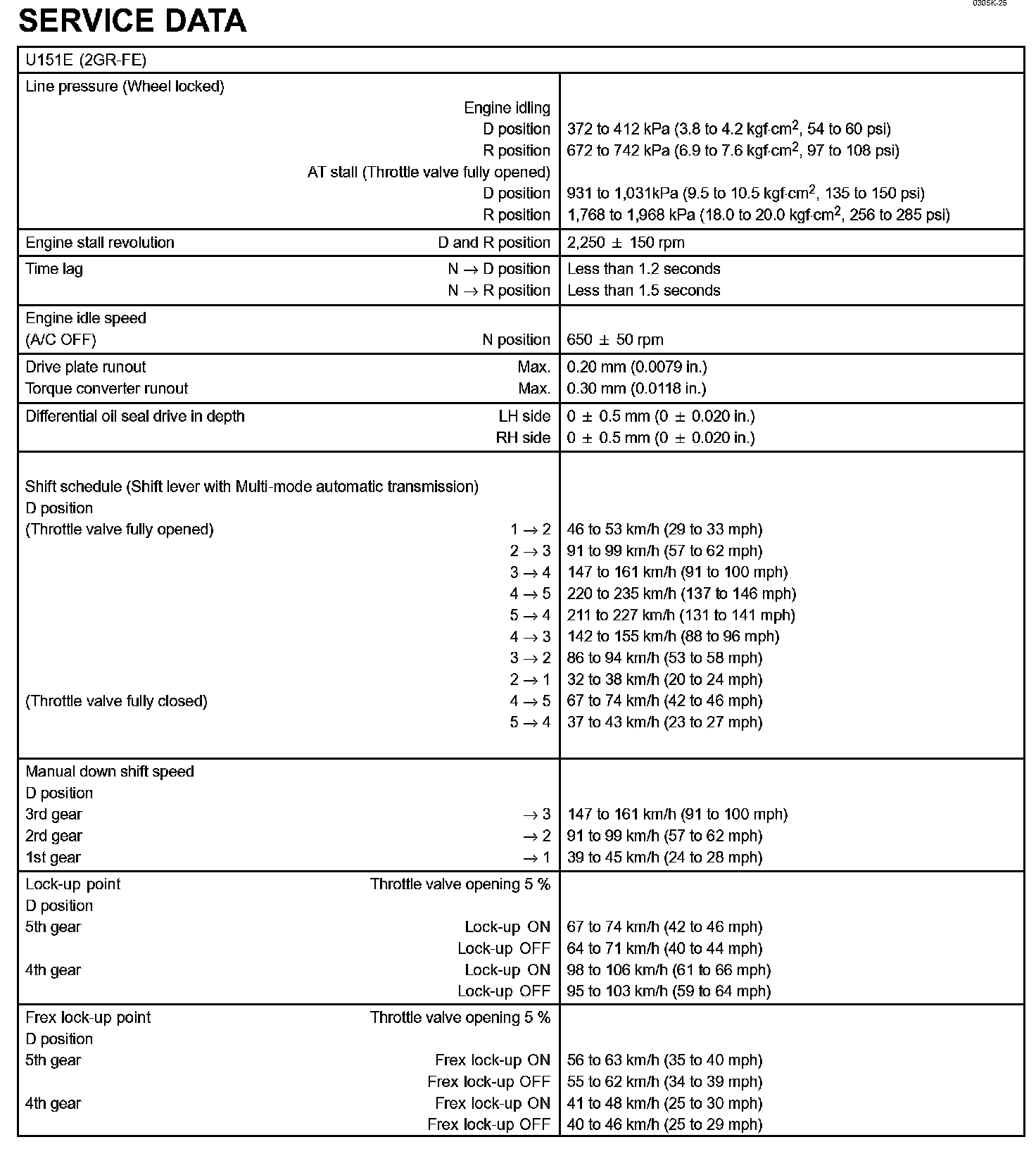

Automatic Transmission/Transaxle - Service Data:

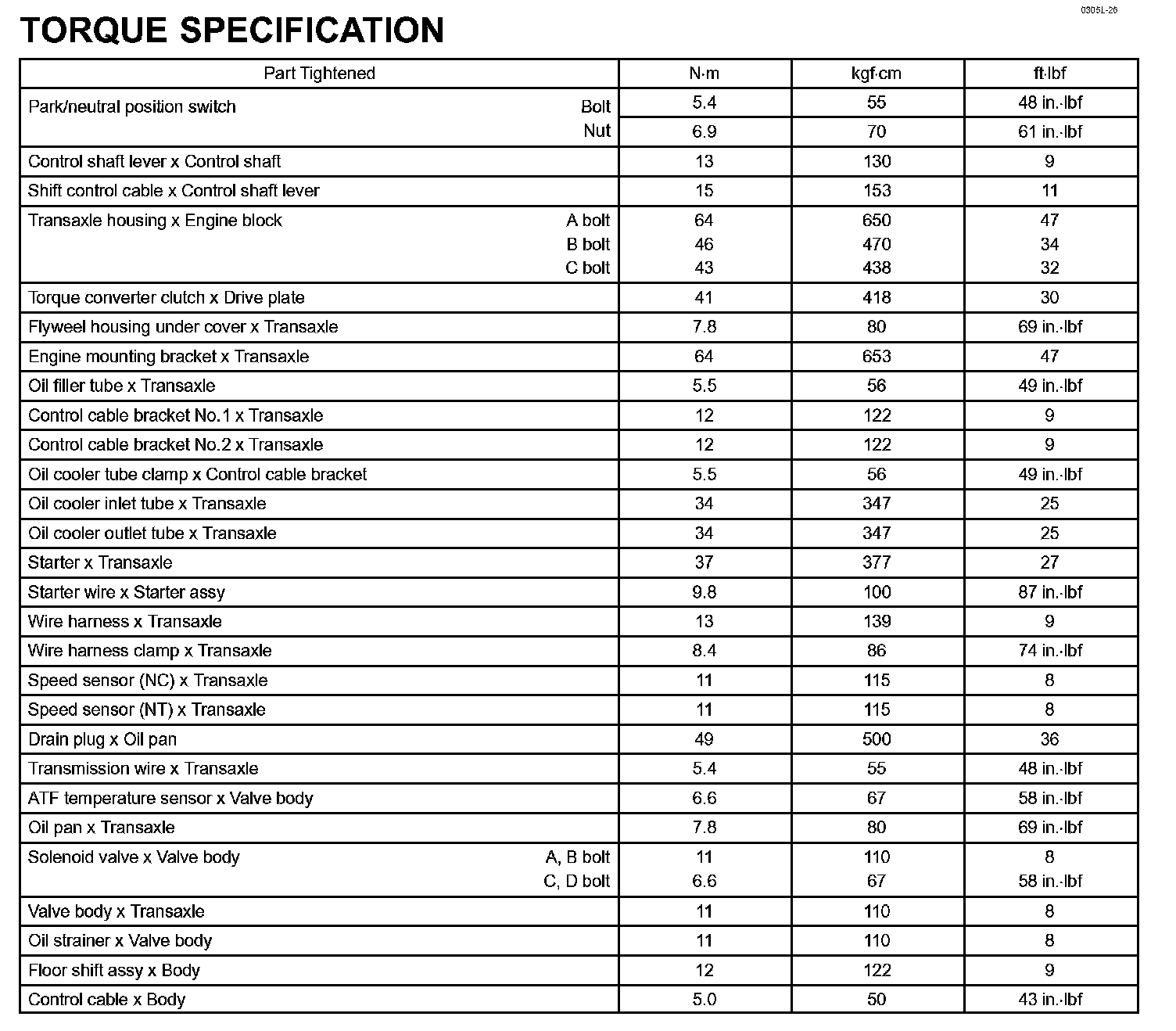

Automatic Transmission/Transaxle - Torque Specification:

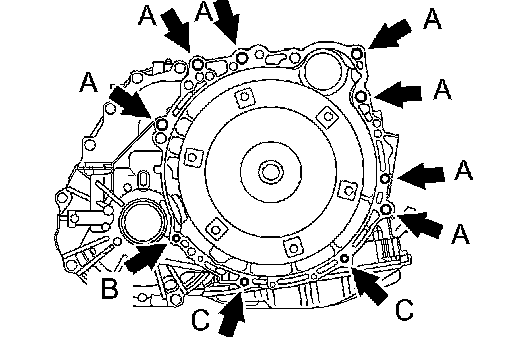

Automatic Transaxle Torque
Bolts A
64 Nm (653 kgf-cm, 47 ft. lbs.)
Bolt B
46 Nm (470 kgf-cm, 34 ft. lbs.)
Bolts C
43 Nm (438 kgf-cm, 32 ft. lbs.)
