Oil Pan, Engine

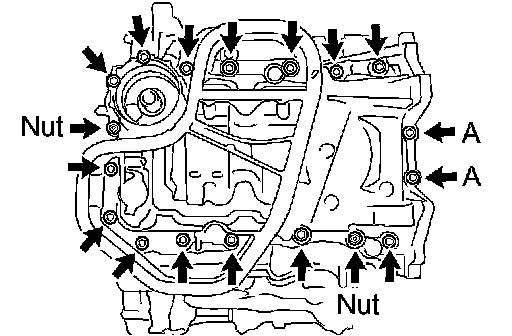

Install the
oil pan sub-assembly with the 16 bolts and 2 nuts.
Torque:
10 Nm (102 kgf-cm, 7 ft. lbs.) for bolt A
21 Nm (214 kgf-cm, 15 ft. lbs.) for bolts except A

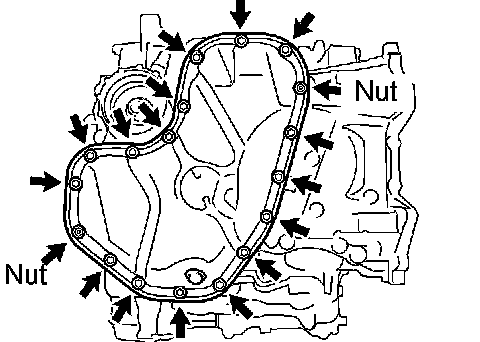

Install the
oil pan No.2 with the 16 bolts and 2 nuts.
Torque: 10 Nm (102 kgf-cm, 7 ft. lbs.)
