Cruise Control Switch: Service and Repair

CRUISE CONTROL MAIN SWITCH ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE STEERING WHEEL COVER LOWER NO.2
3. REMOVE STEERING WHEEL COVER LOWER NO.3
4. REMOVE HORN BUTTON ASSEMBLY
5. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY




a. Disconnect the connector.

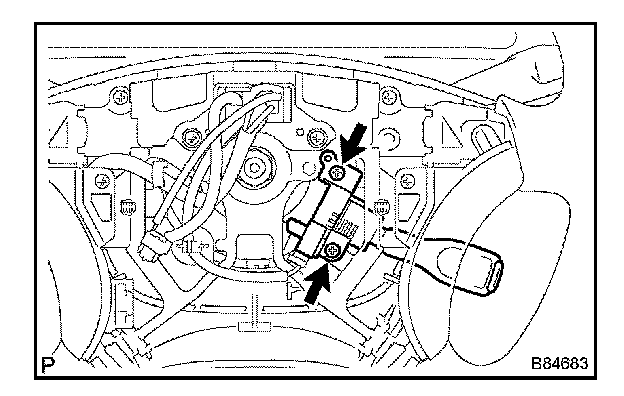

b. Remove the 2 screws.

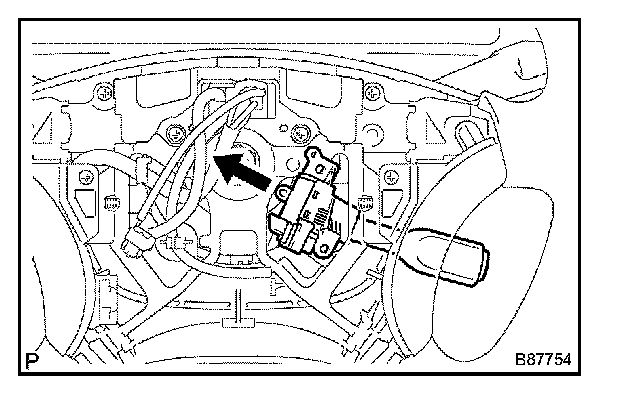

c. Pull out the cruise control main switch assembly in the direction shown by the arrow in the illustration.

6. INSTALL HORN BUTTON ASSEMBLY
7. INSPECT HORN BUTTON ASSEMBLY
8. CONNECT BATTERY NEGATIVE TERMINAL
9. INSPECT SRS WARNING LIGHT
