Check CAN Bus Line For Short to +B

CHECK CAN BUS LINE FOR SHORT TO +B

CIRCUIT DESCRIPTION

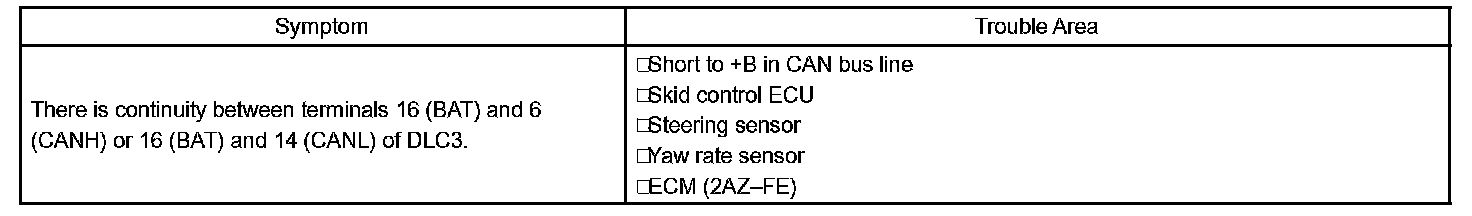

A short to +B is suspected in the CAN bus line when there is continuity between terminals 16 (BAT) and 6 (CANH) or terminals 16 (BAT) and 14 (CANL) of the DLC3.

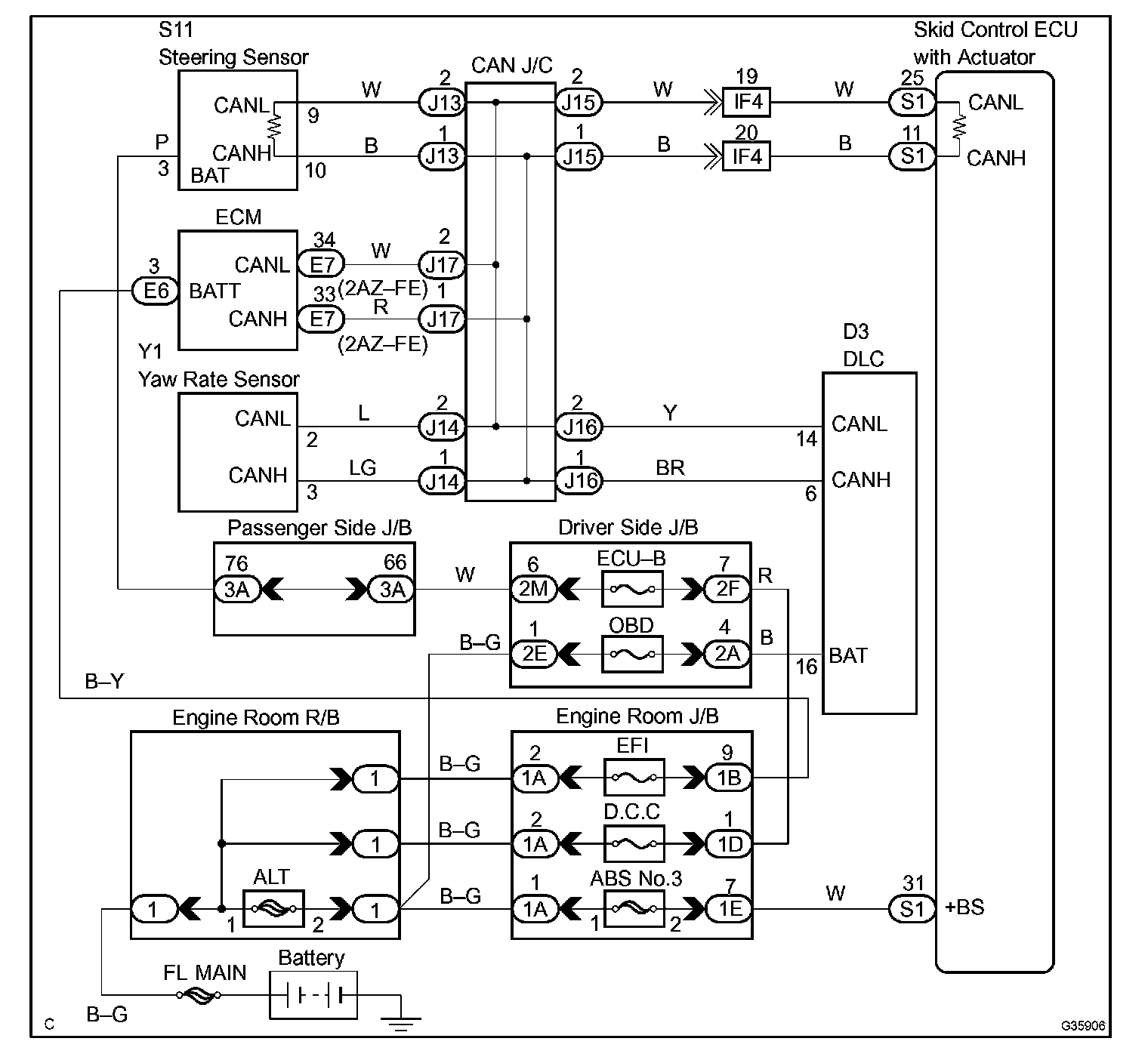

Wiring Diagram:

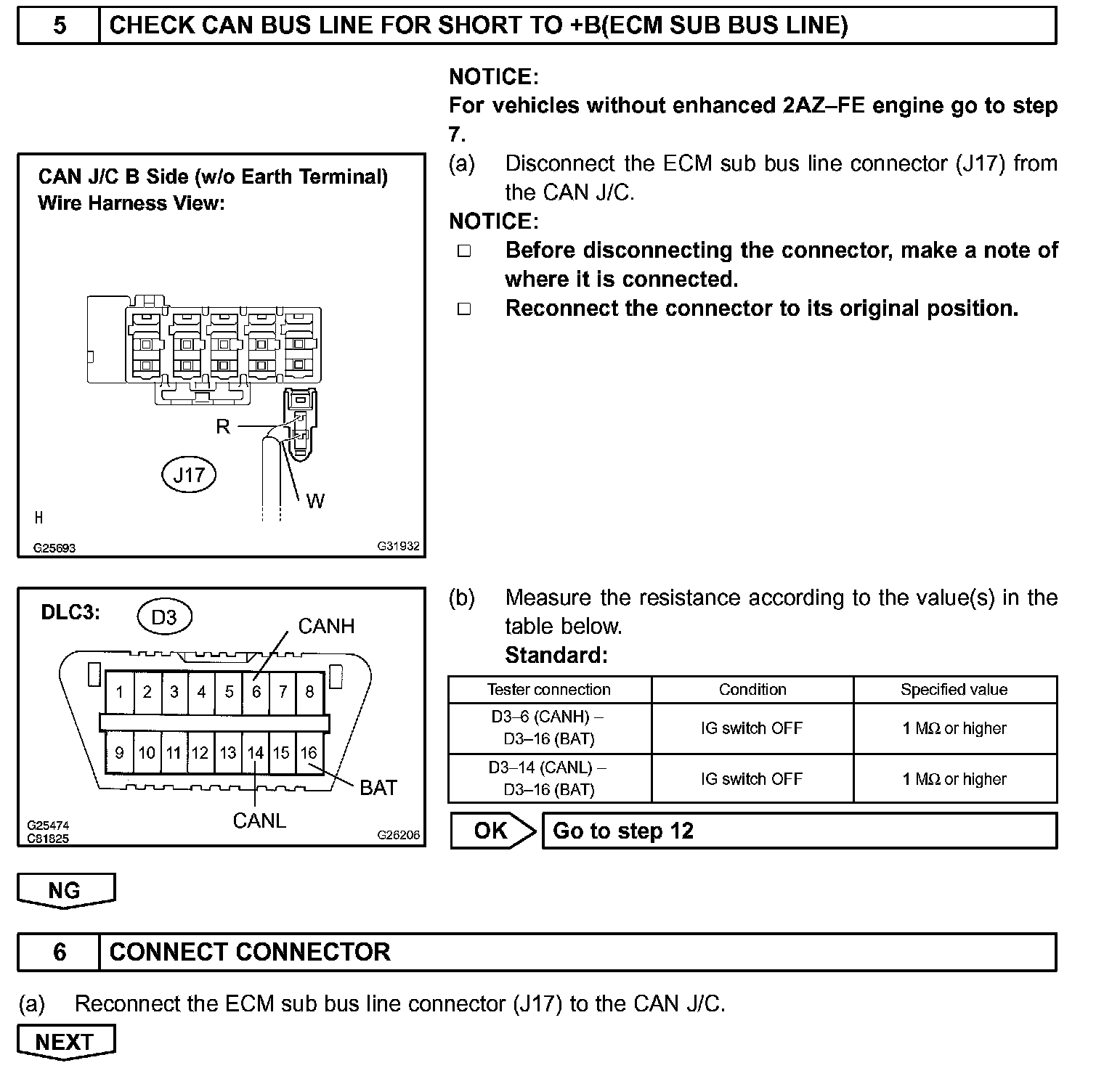

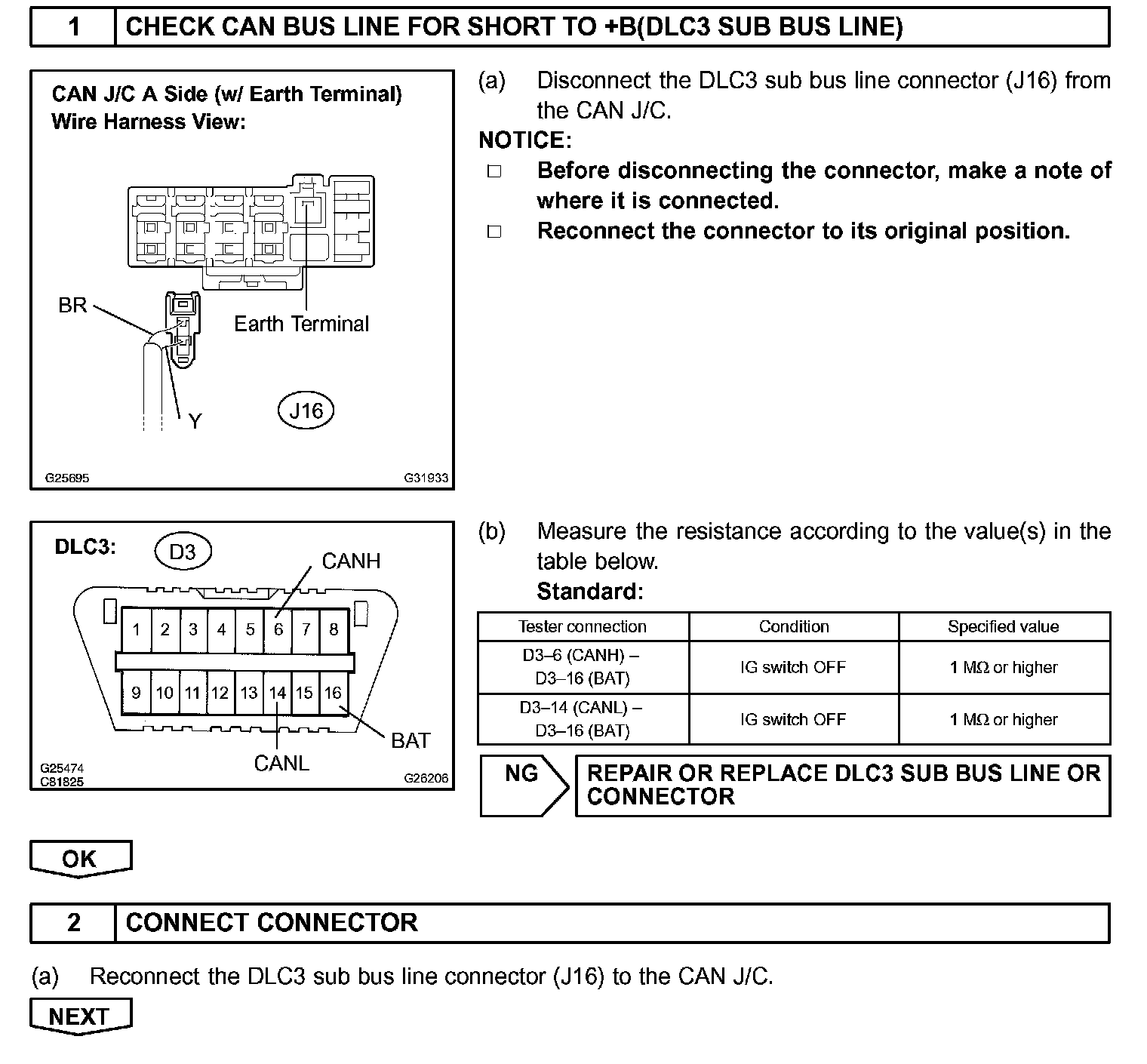

Step 1 - 2:

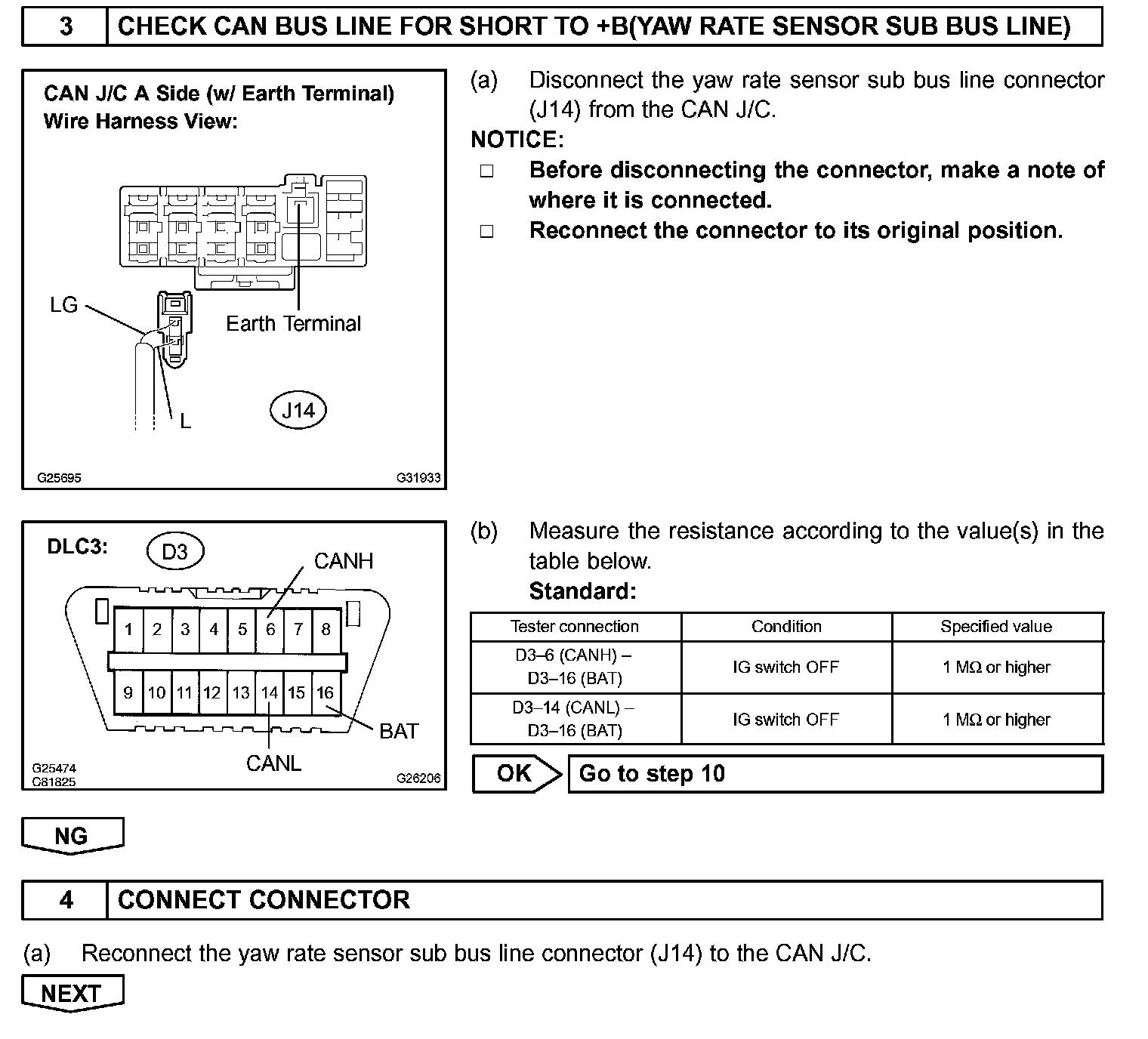

Step 3 - 4:




Step 5 - 6:

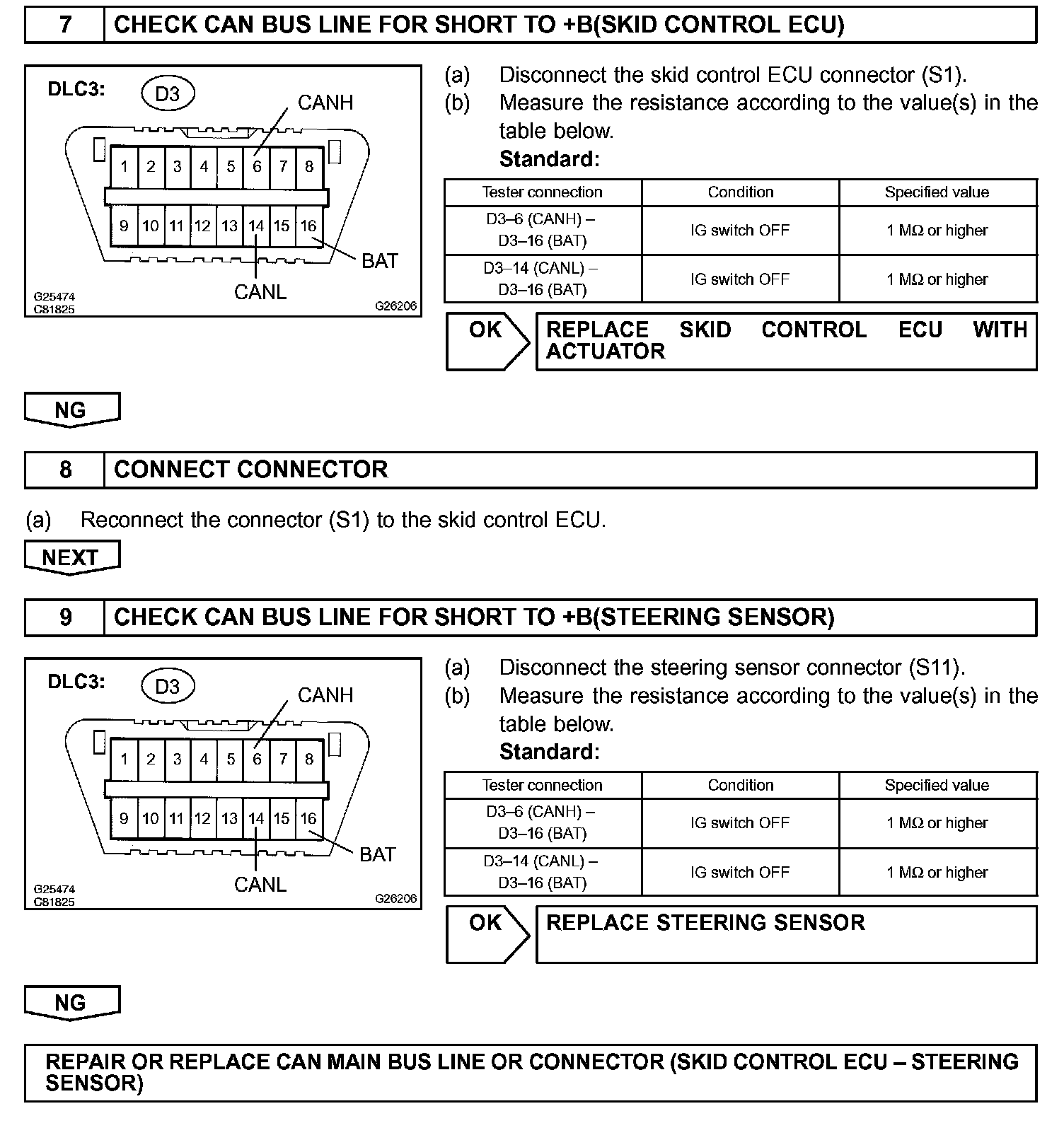

Step 7 - 9:

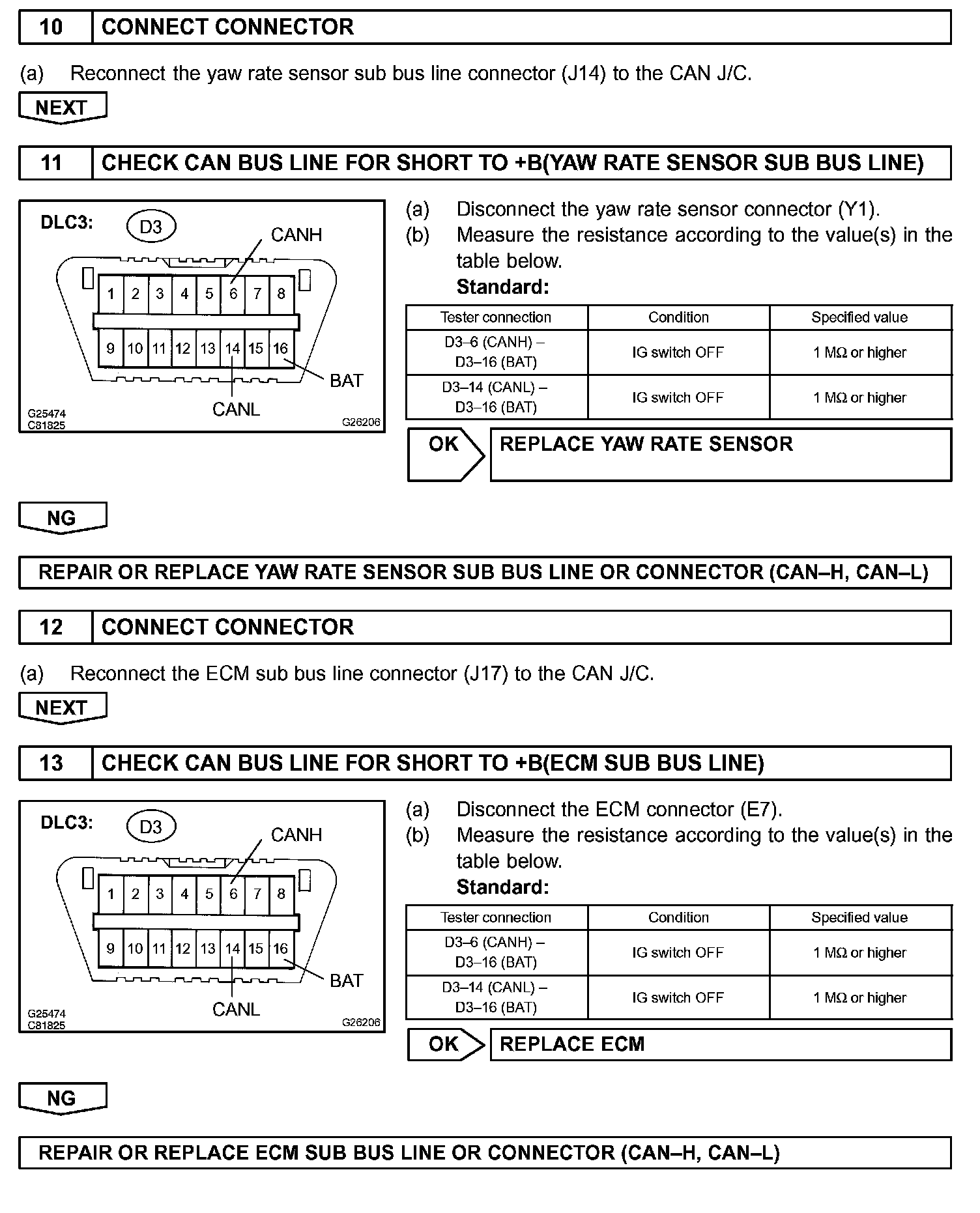

Step 10 - 13:




INSPECTION PROCEDURE
