Ignition Coil: Service and Repair
REMOVAL 1.
REMOVE NO. 2 CYLINDER HEAD COVER
2.

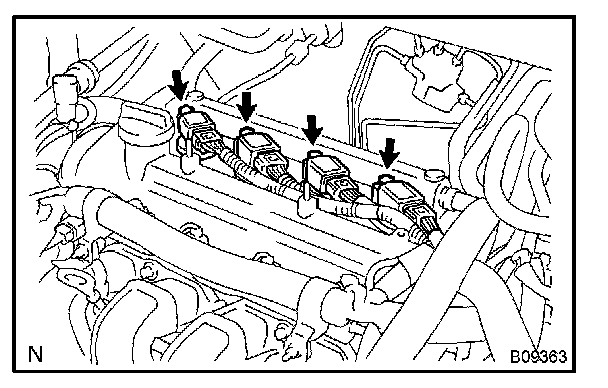

DISCONNECT 4
IGNITION COIL CONNECTORS
3.
REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS
Remove the 4 bolts and pull out the 4
ignition coils (with igniter).
Torque:
9.0 Nm (92 kgf.cm, 80 in.lbf)INSTALLATIONInstallation is in the reverse order of removal
