Oil Pan, Engine

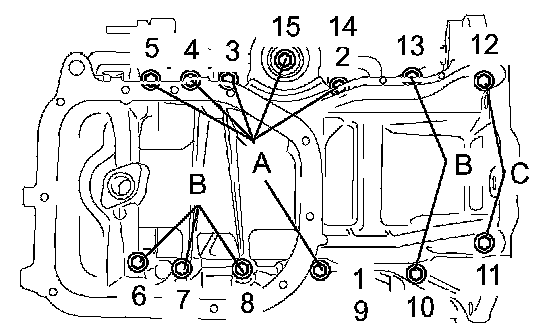

Install and uniformly tighten the 13 bolts, in several passes, in the sequence shown.
Torque
24 Nm (245 kgf-cm, 18 ft. lbs.)
HINT: Each bolt length in indicated in the illustration.
A
49 mm (1.929 inch)
B
88 mm (3.465 inch)
C
144 mm (5.669 inch)

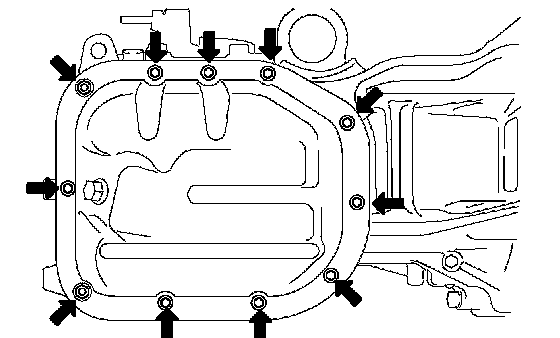

Install the
oil pan with the 9 bolts and 2 nuts. Uniformly tighten the bolts and nuts in several passes.
Torque
9.0 Nm (92 kgf-cm, 80 inch lbs.)
