Flywheel
M/T: INSTALL
FLYWHEEL HINT: The flywheel bolts are tightened in 2 progressive steps, (a) and (c).

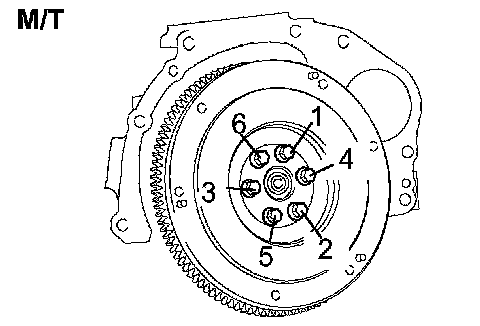

Install and uniformly tighten the 6 mounting bolts, in several passes, in the sequence shown.
Torque
49 Nm (500 kgf-cm, 36 ft. lbs.)
Mark the flywheel bolts with paint.
Retighten the flywheel bolts by 90°.
Check that the painted marks are now at a 90° angle to their original positions (b).
