Engine Control System - SFI System

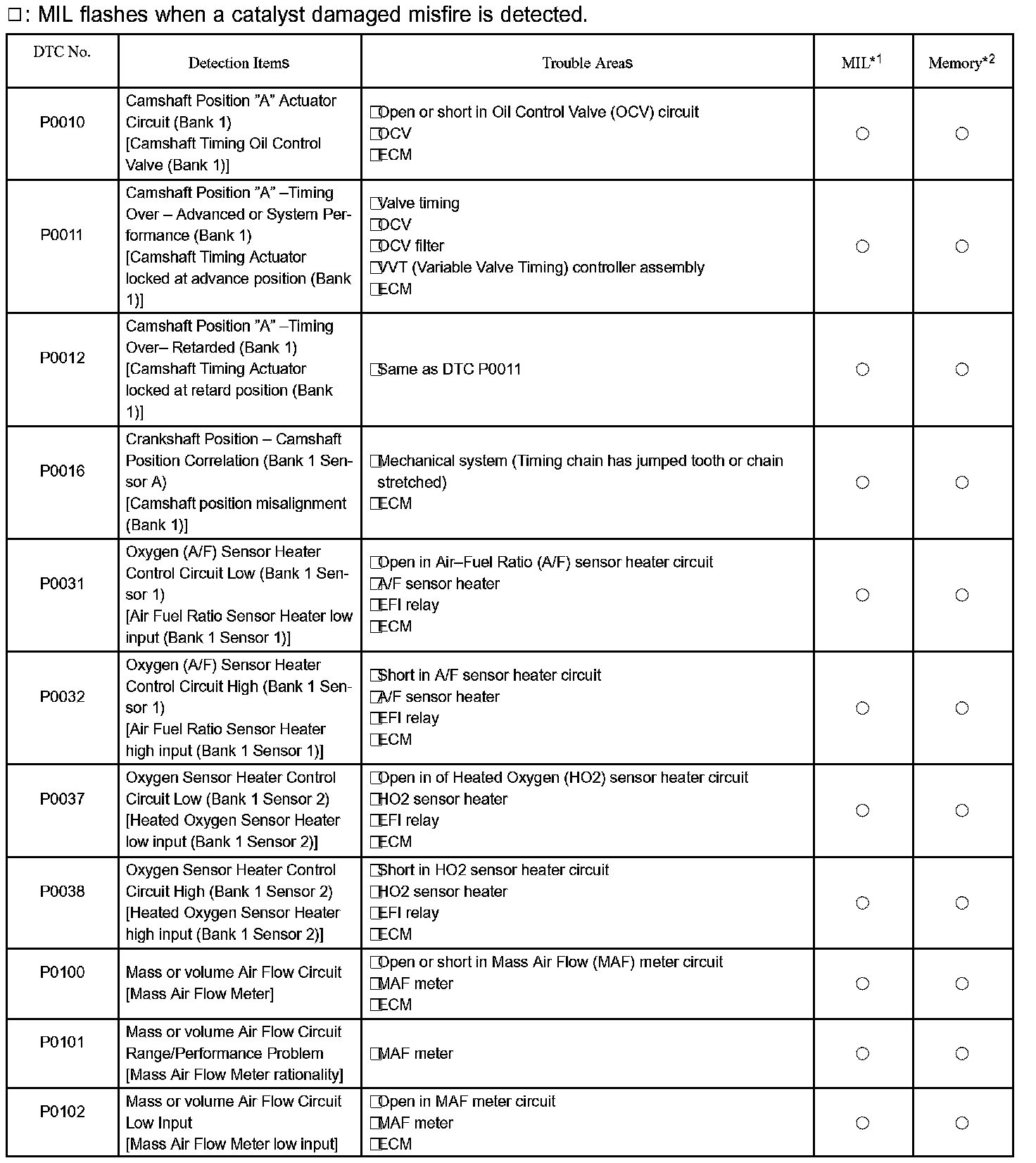

DIAGNOSTIC TROUBLE CODE CHARTP0010 - P0102:

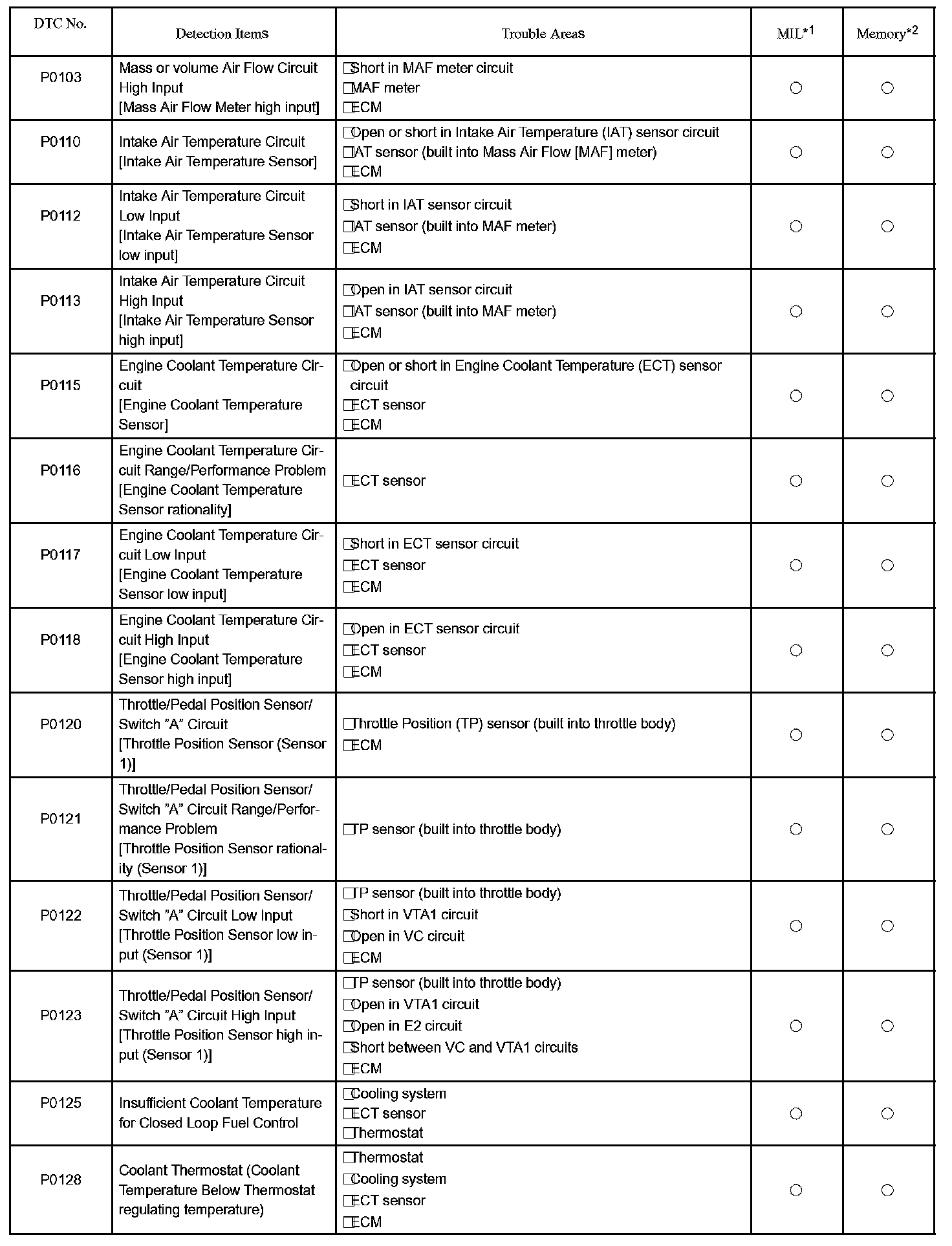

P0103 - P0128:

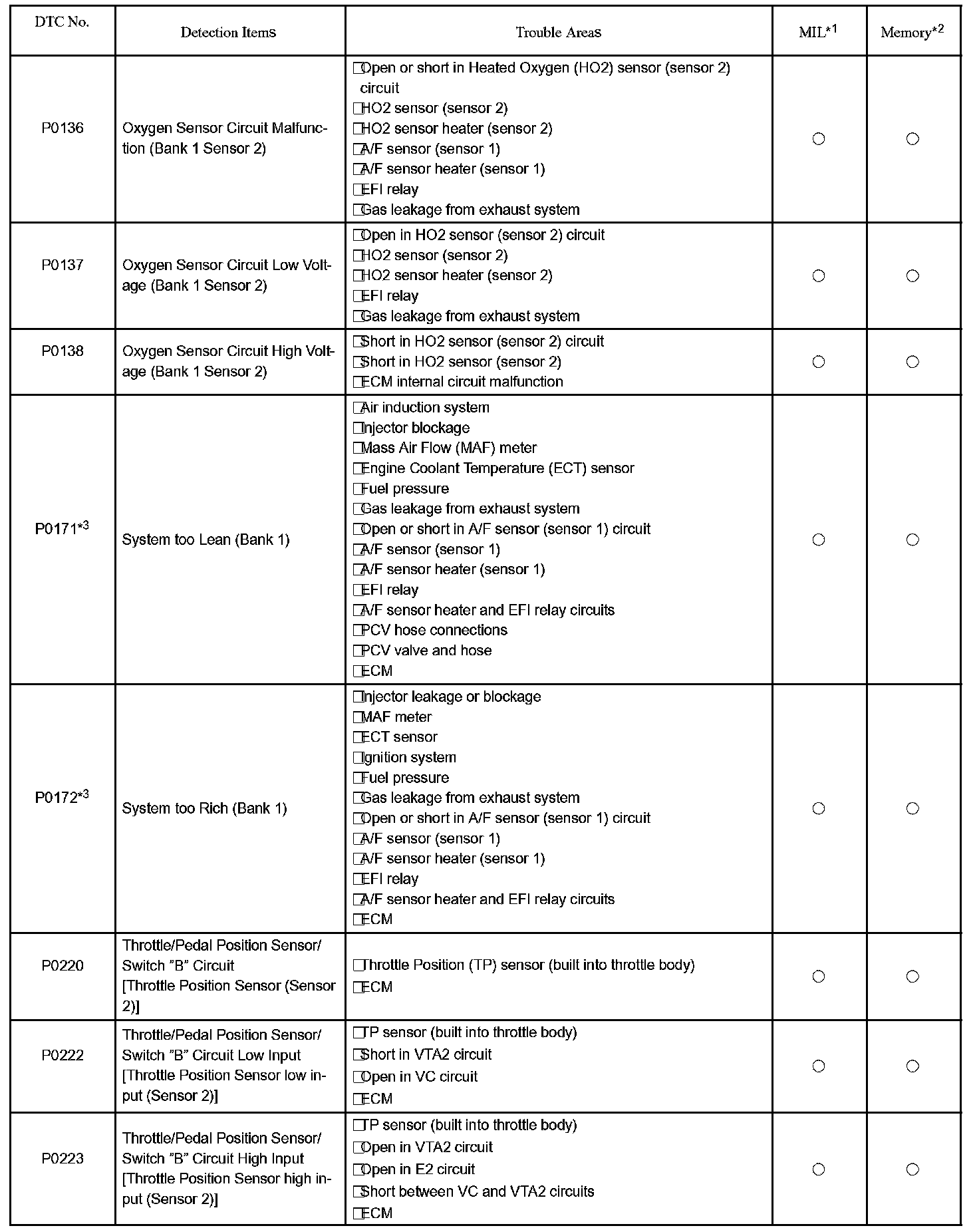

P0136 - P0223:

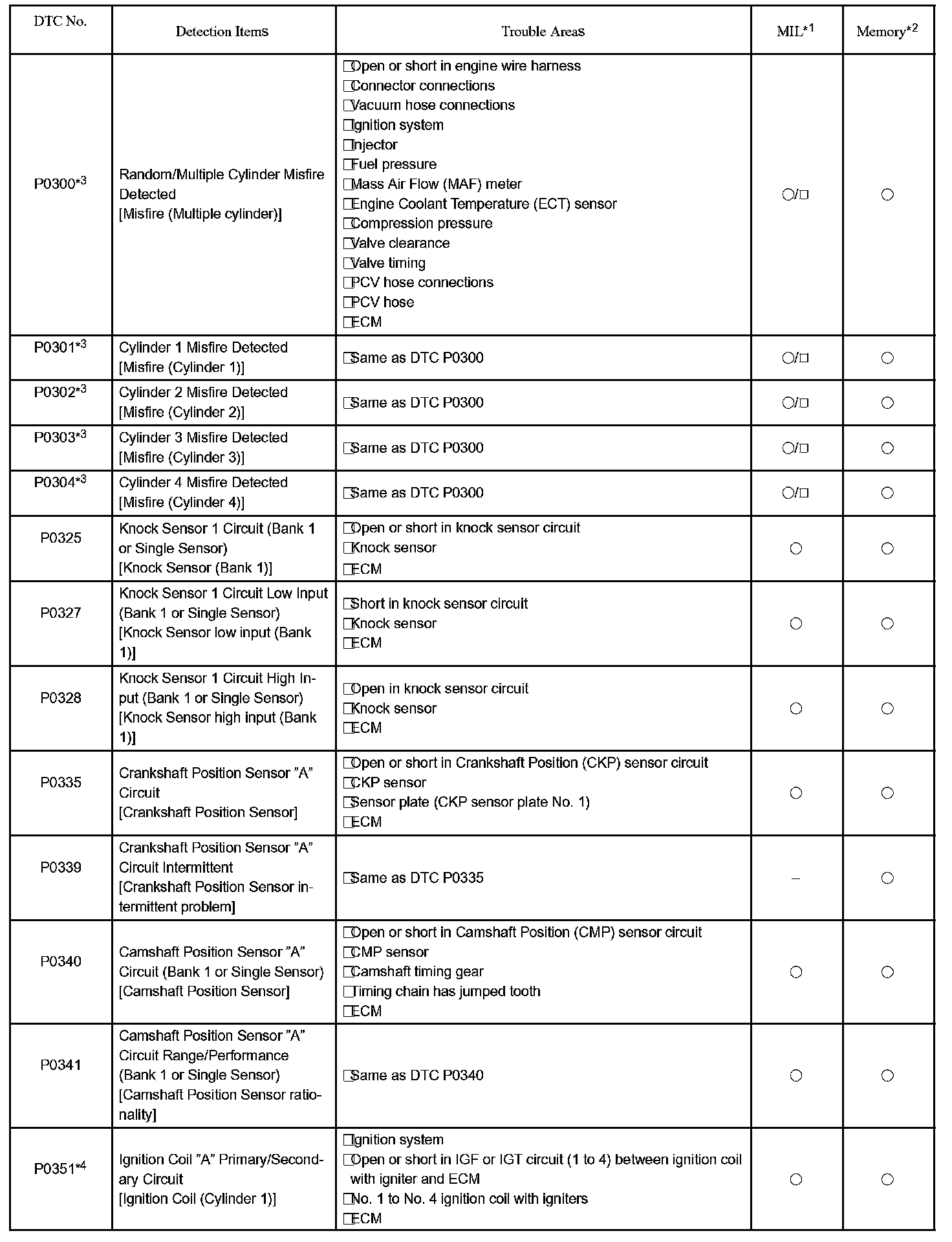

P0300 - P0351:

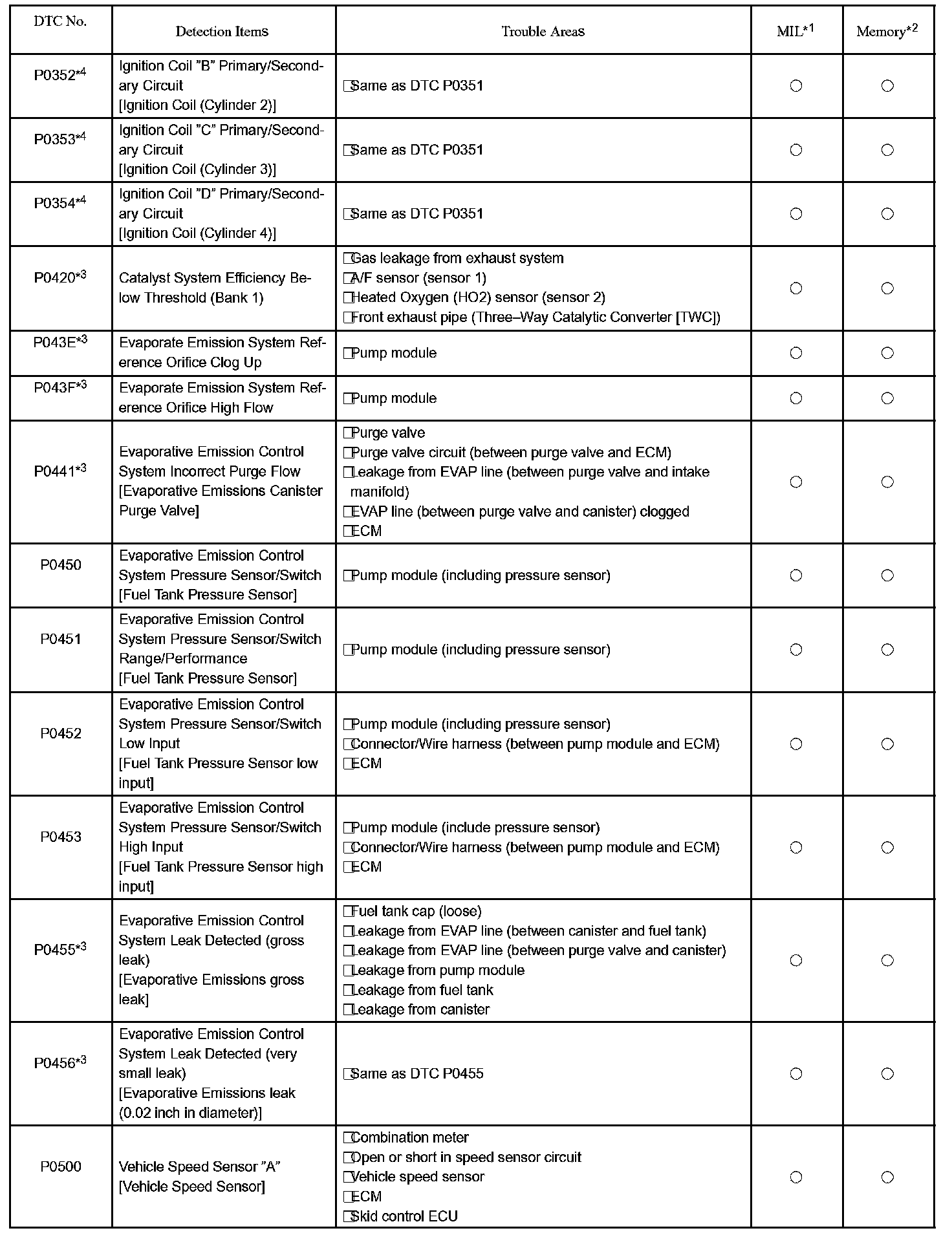

P0352 - P0500:

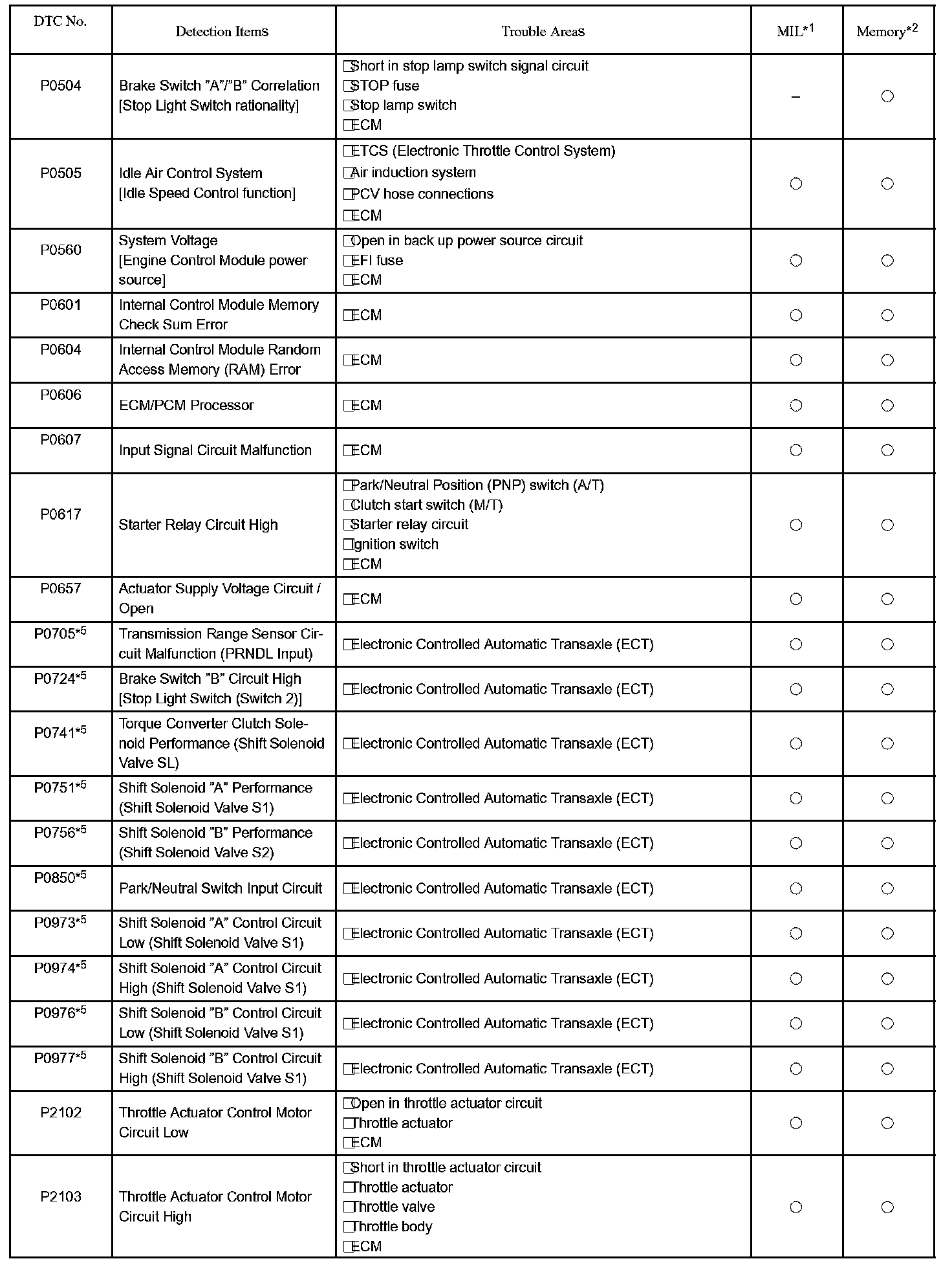

P0504 - P2103:

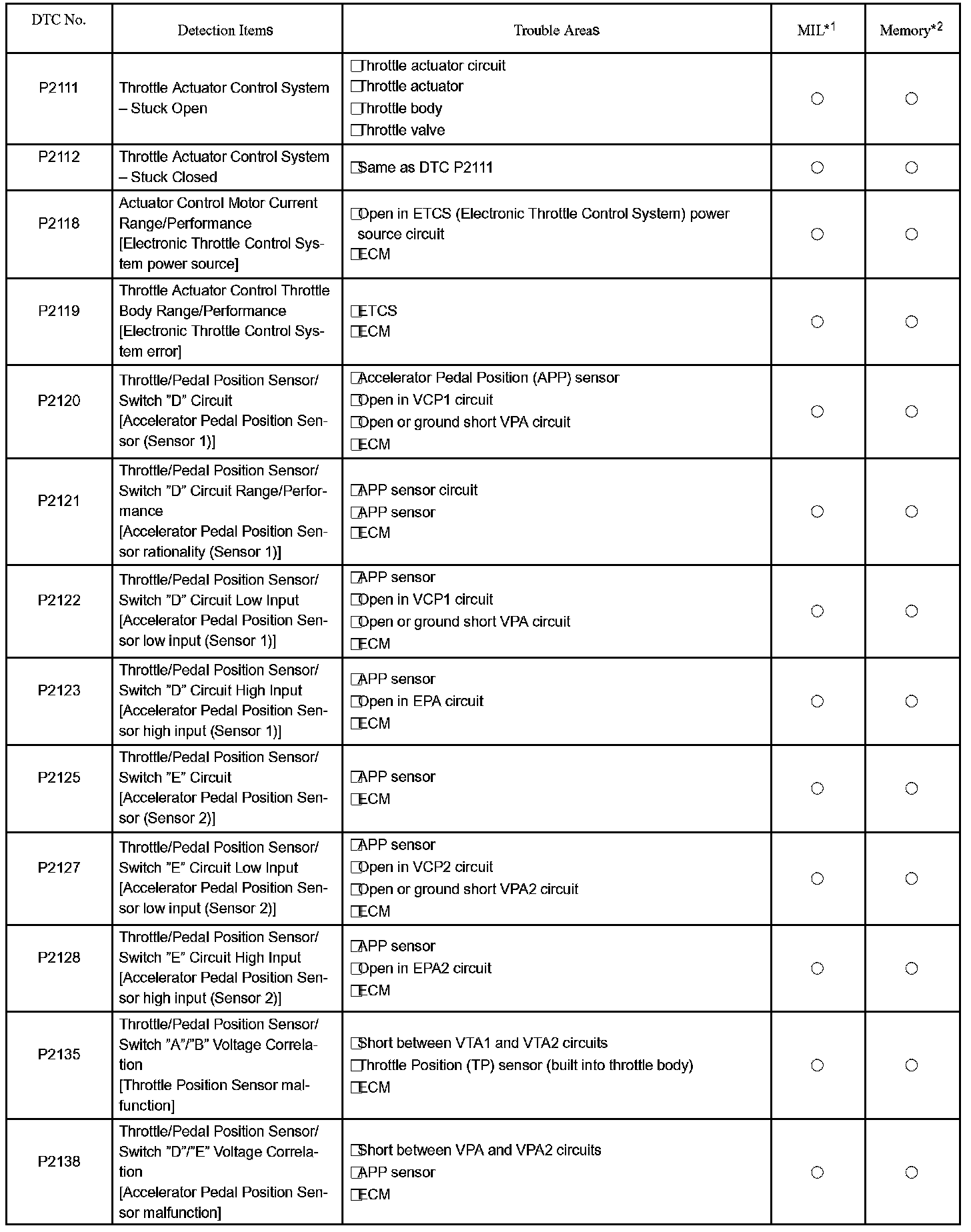

P2111 - P2138:

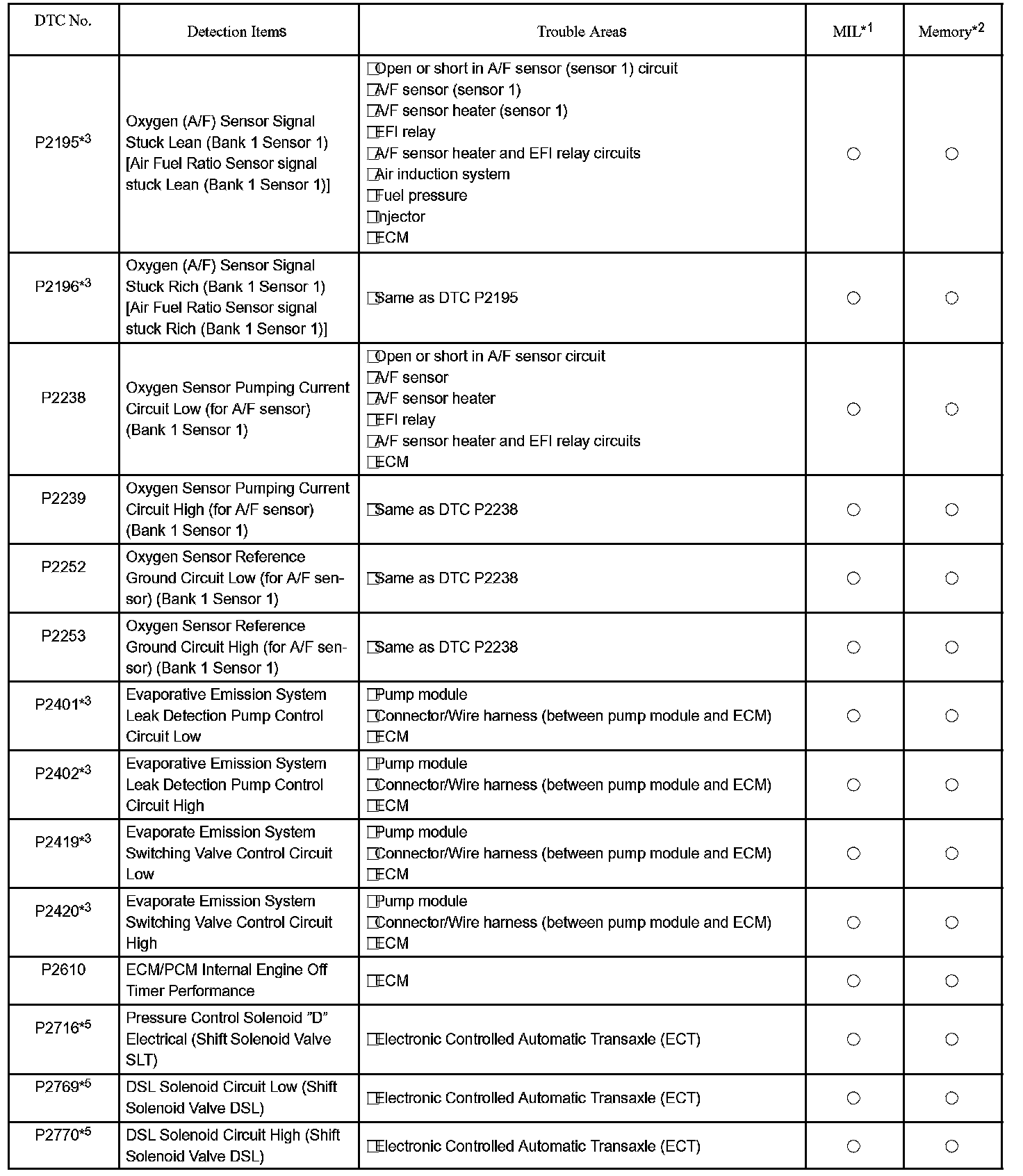

P2195 - P2770:
P2A00 - B2799:
HINT: The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values.
If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table. For details of each DTC, refer to the respective "DTC No." in the DTC chart.
