Only Wireless Control Function Is Inoperative

ONLY WIRELESS CONTROL FUNCTION IS INOPERATIVE

CIRCUIT DESCRIPTION

The door control receiver receives signals from the transmitter and sends these signals to the multiplex network body ECU through the smart key ECU. The multiplex network body ECU then controls all doors by sending LOCK/UNLOCK signals to each door lock assembly.

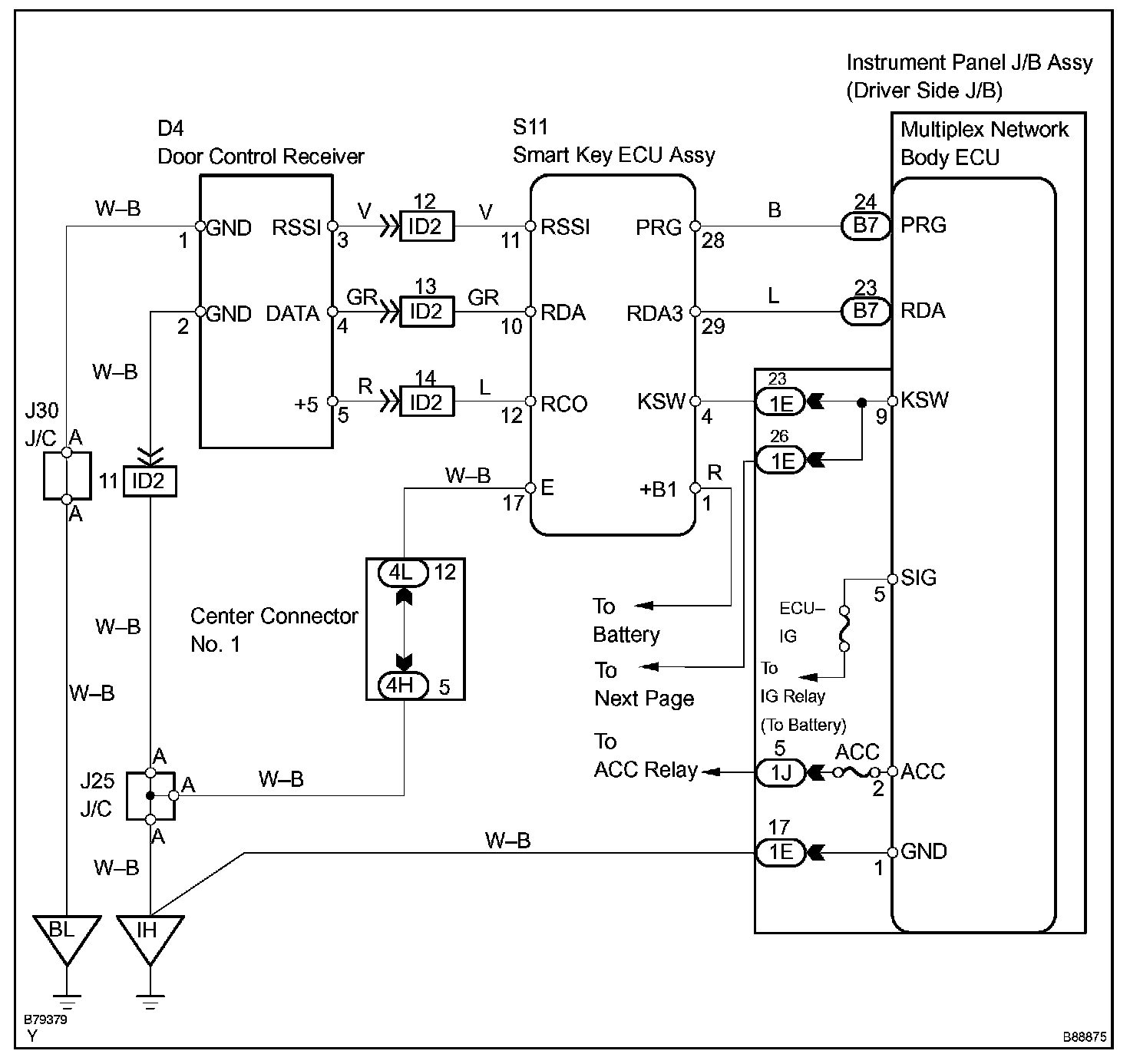

Wiring Diagram:

Wiring Diagram:

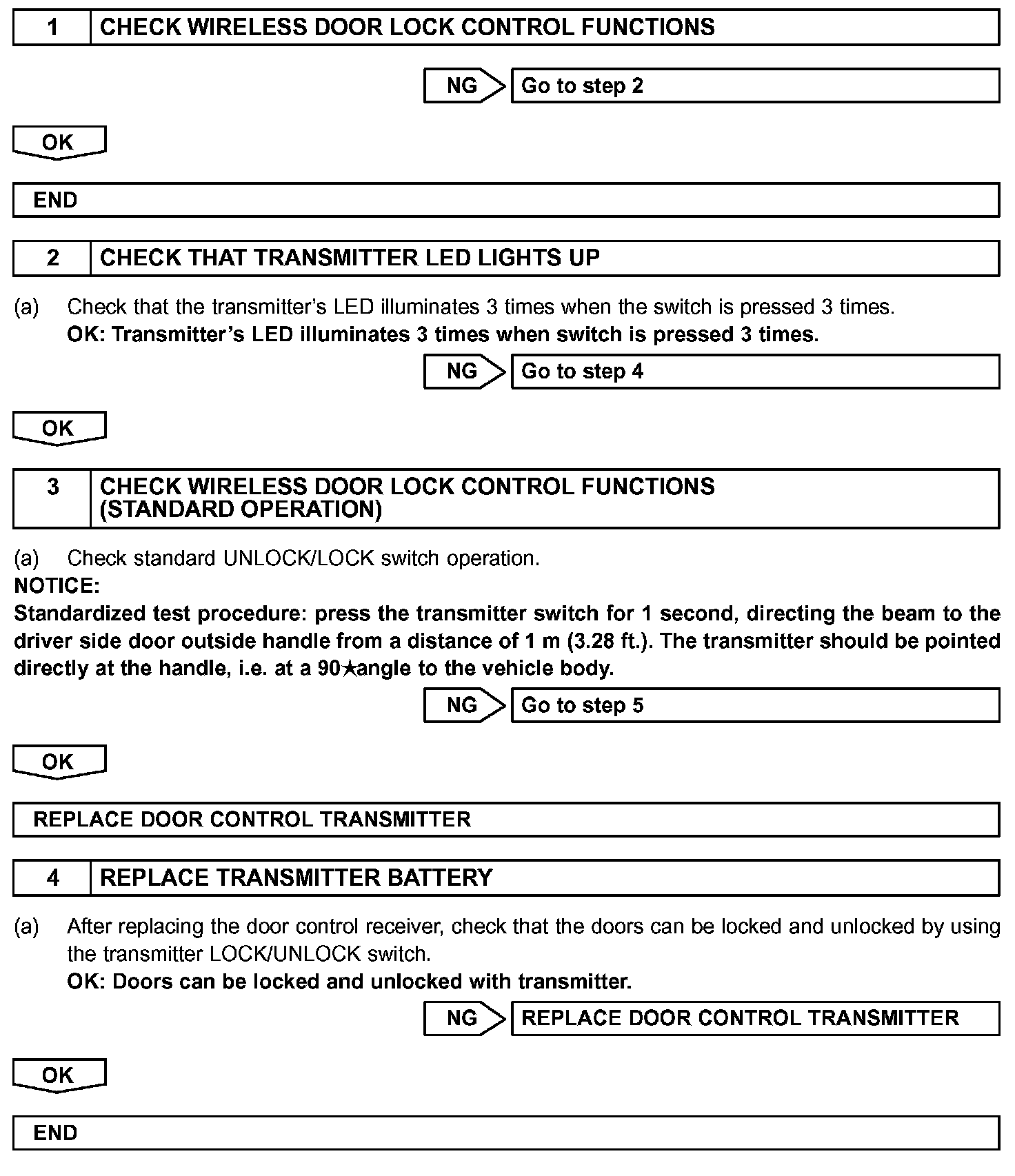

Step 1 - 4:

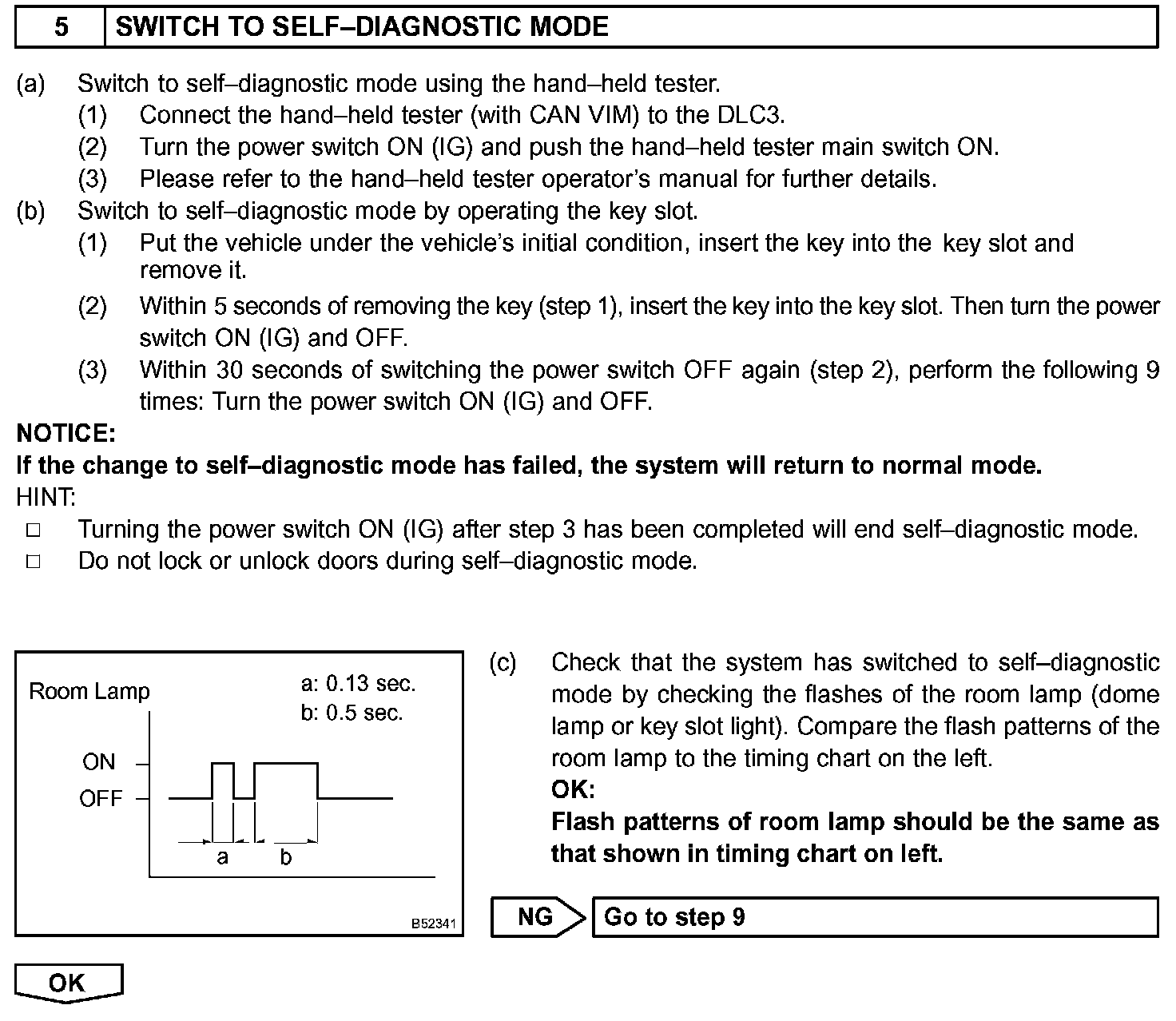

Step 5:

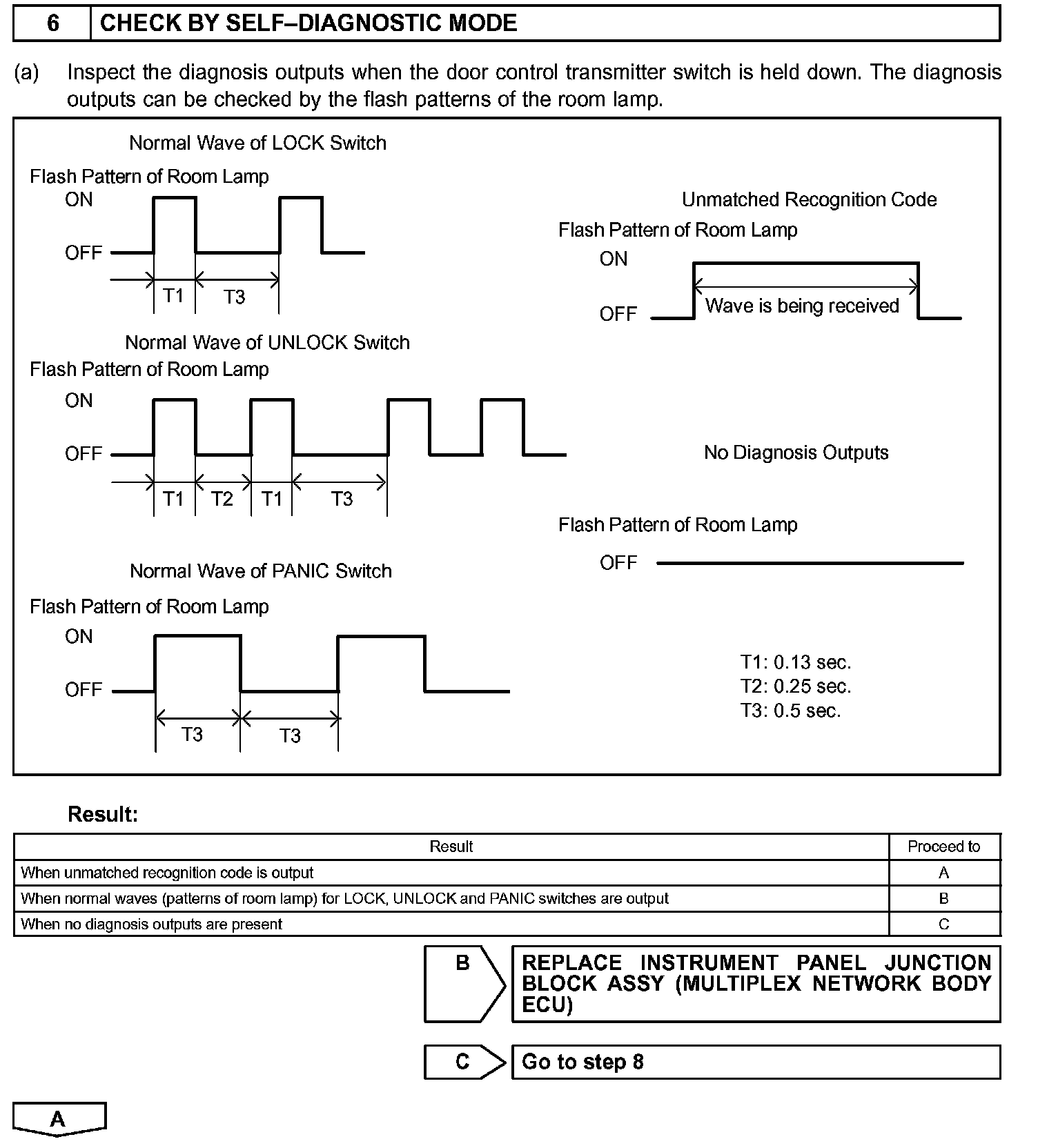

Step 6:

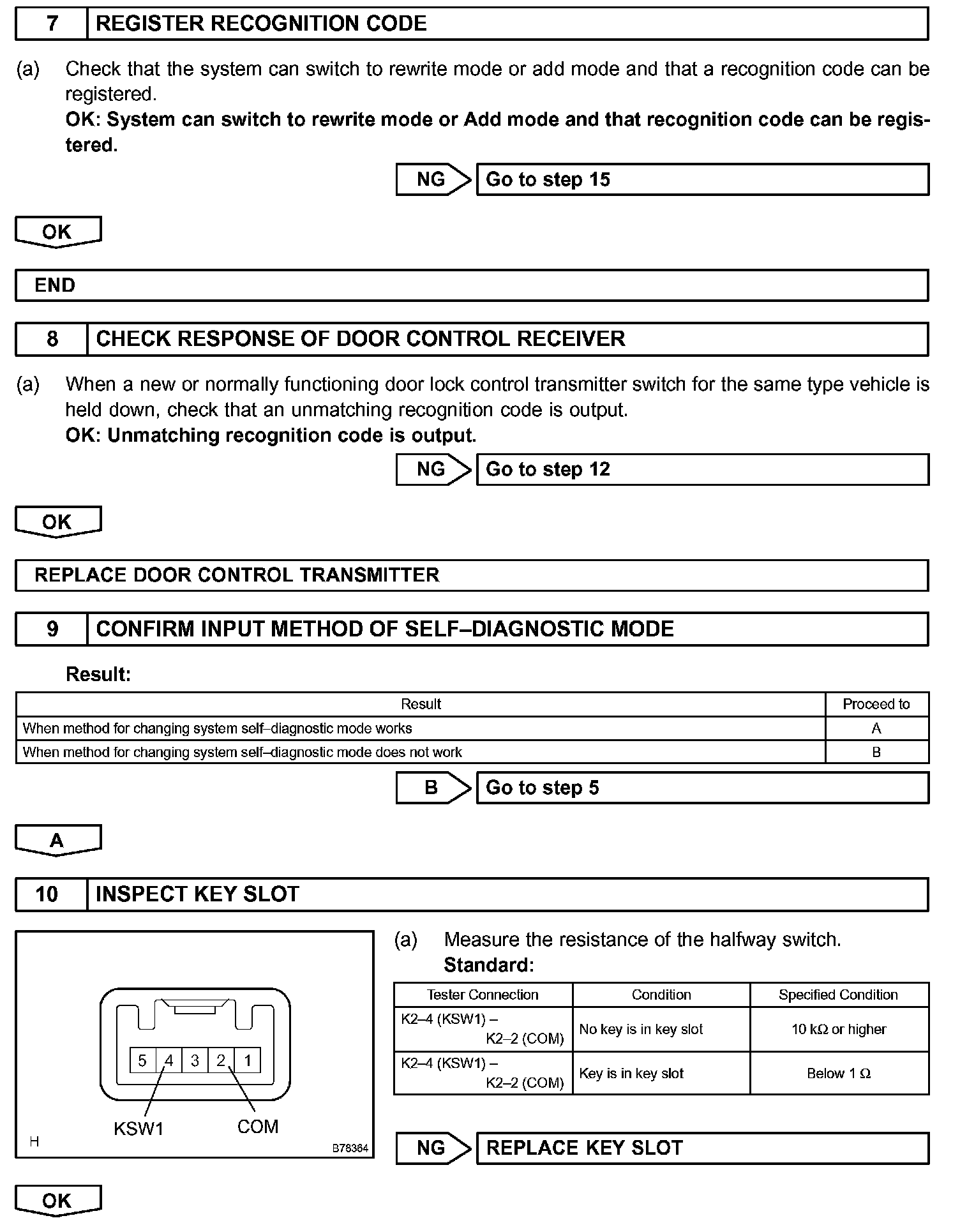

Step 7 - 10:

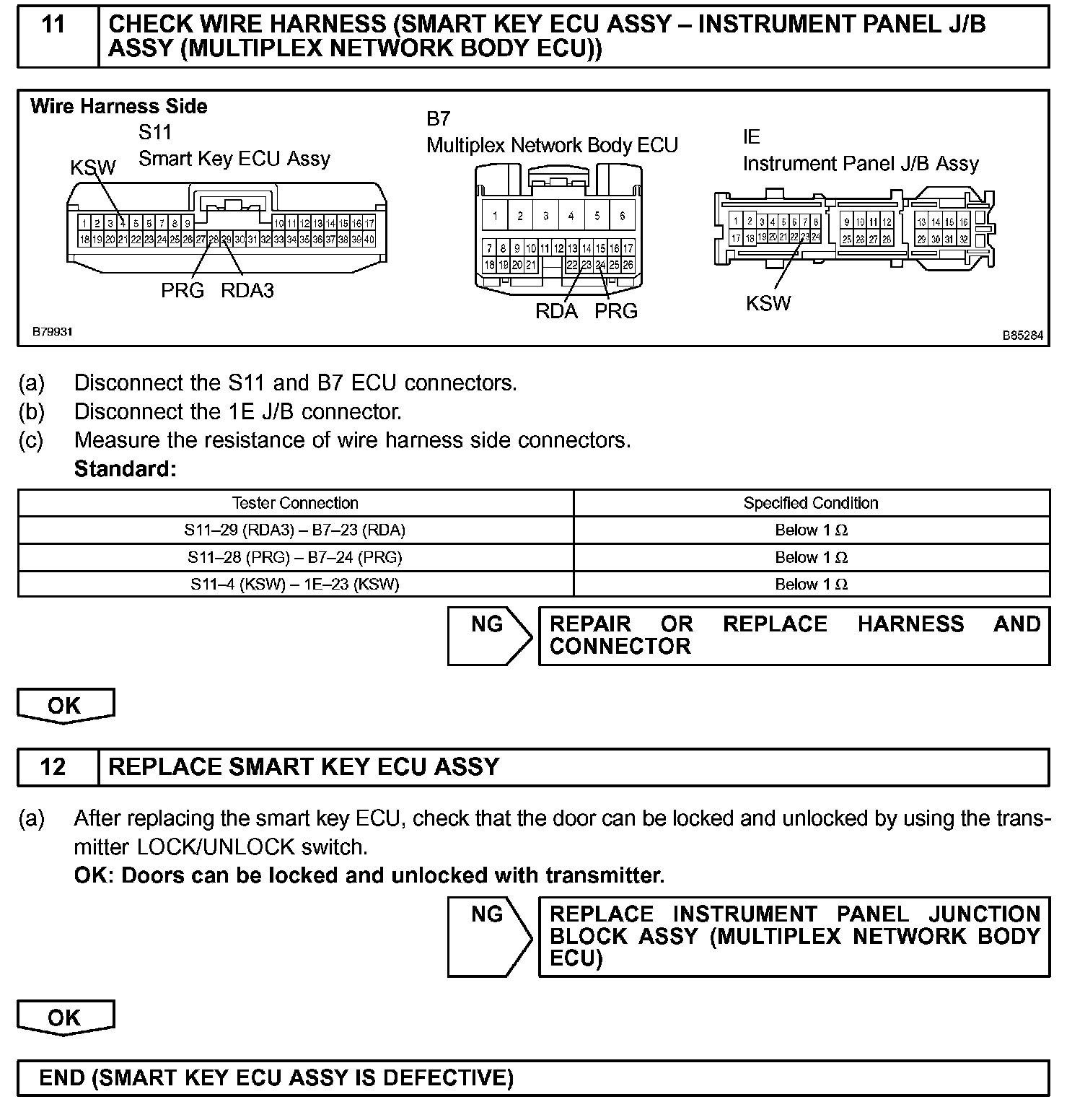

Step 11 - 12:

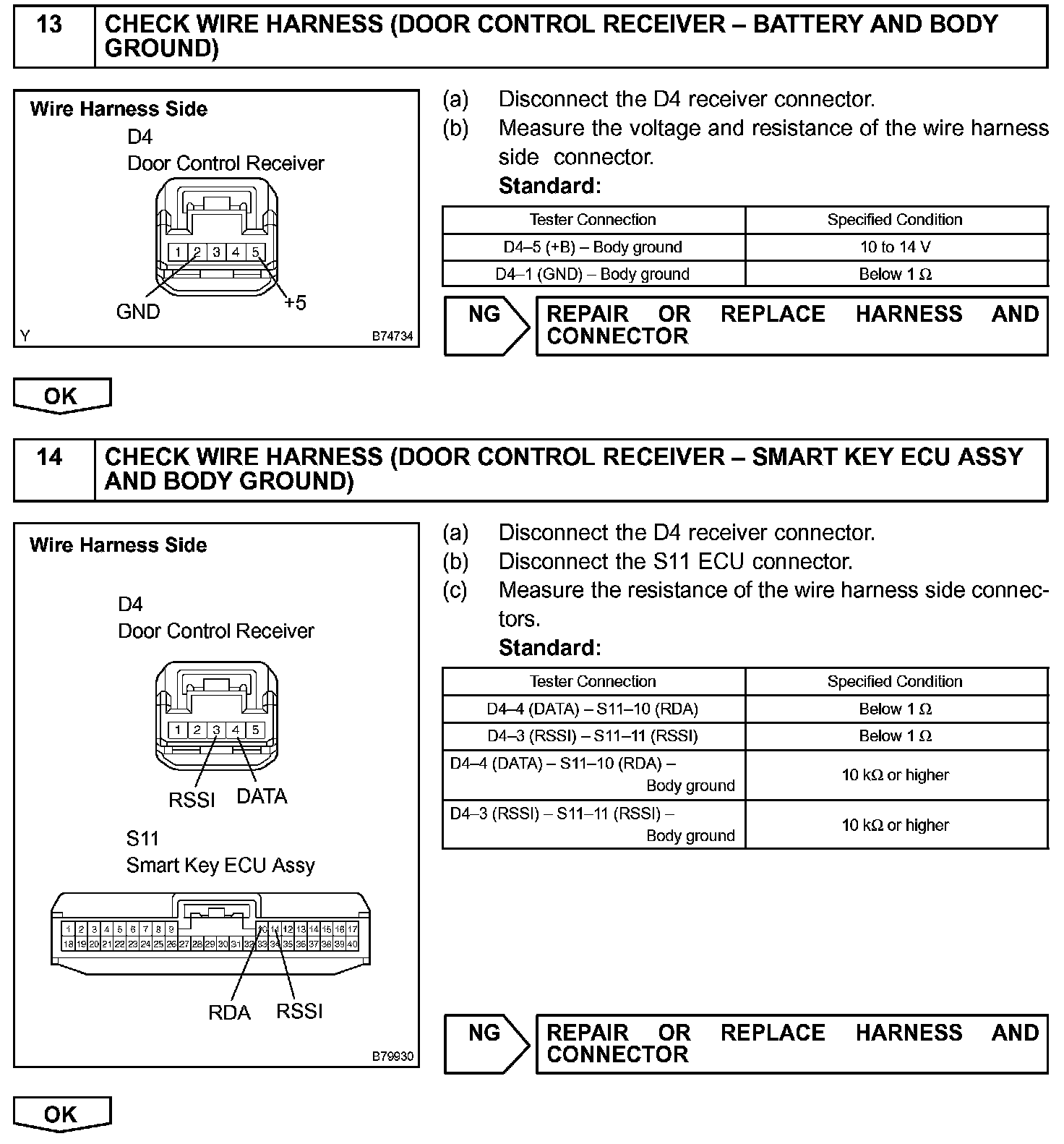

Step 13 - 14:

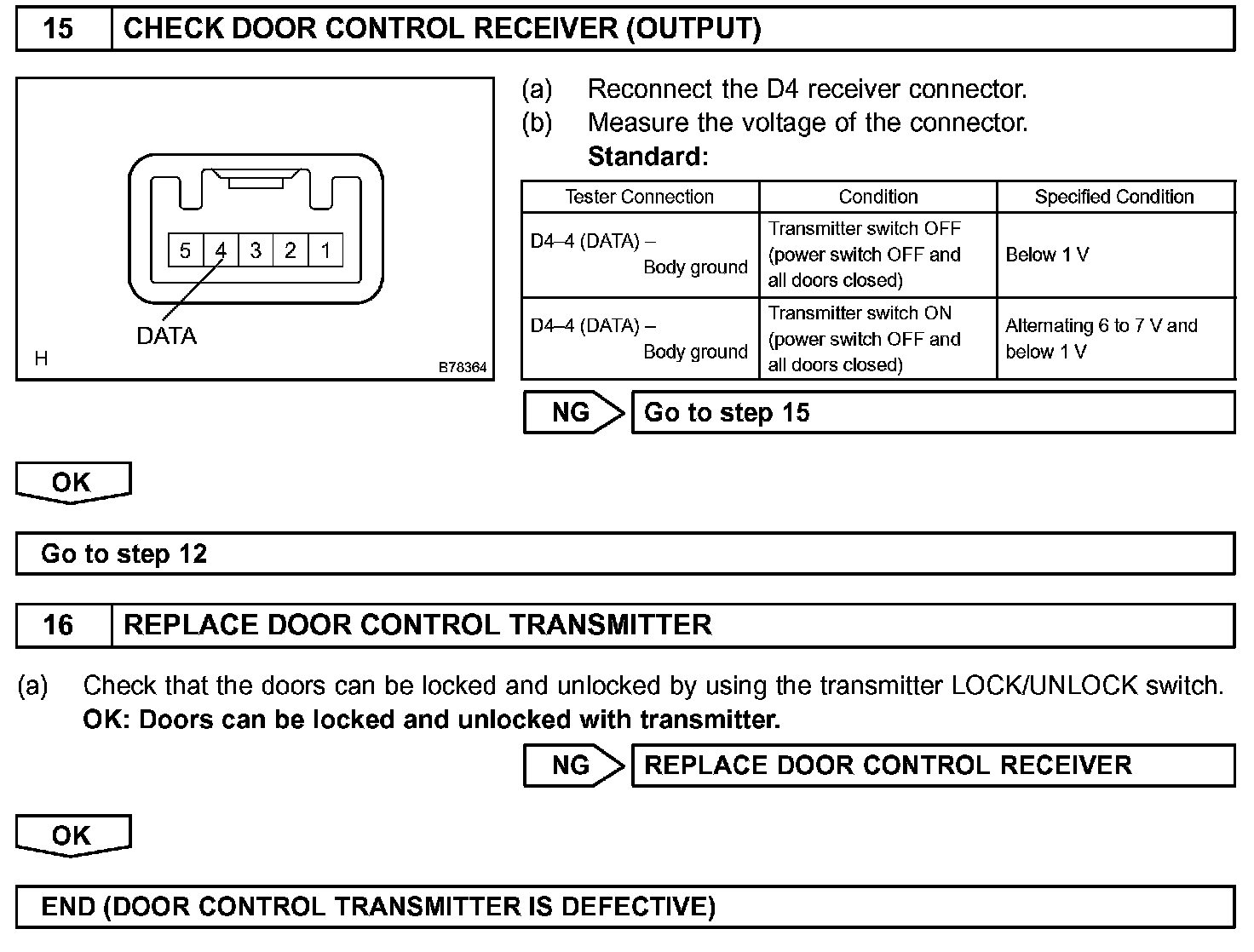

Step 15 - 16:

INSPECTION PROCEDURE
