Cruise Control Switch: Service and Repair

CRUISE CONTROL MAIN SWITCH

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. PRECAUTION
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE STEERING WHEEL COVER LOWER NO.2
4. REMOVE STEERING WHEEL COVER LOWER NO.3
5. REMOVE HORN BUTTON ASSEMBLY

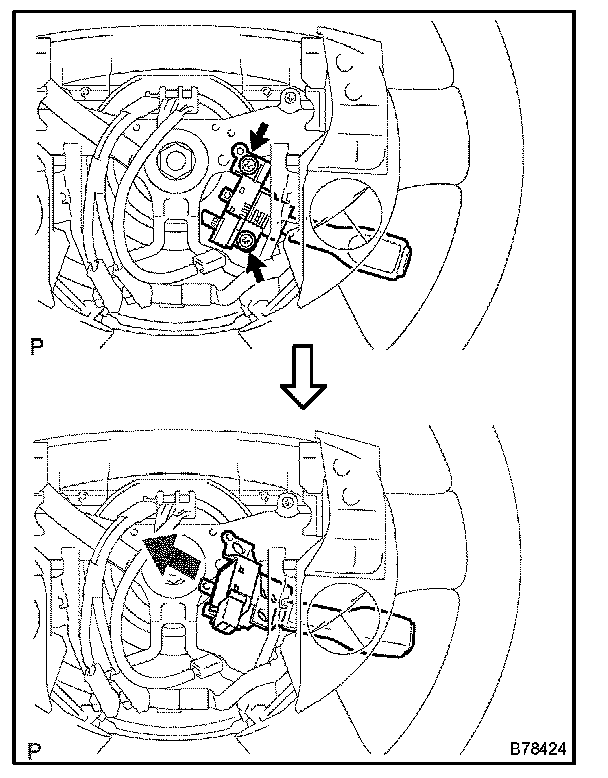

6. REMOVE CRUISE CONTROL MAIN SWITCH
a. Disconnect the connector.
b. Remove the 2 screws and cruise control main switch.

7. INSTALL HORN BUTTON ASSEMBLY
8. CONNECT BATTERY NEGATIVE TERMINAL
9. INSPECT HORN BUTTON ASSEMBLY
10. INSPECT SRS WARNING LIGHT
11. PERFORM INITIALIZATION
